socomec ATyS t User Manual

45
EN
ATYSt - 541995C - SOCOMEC

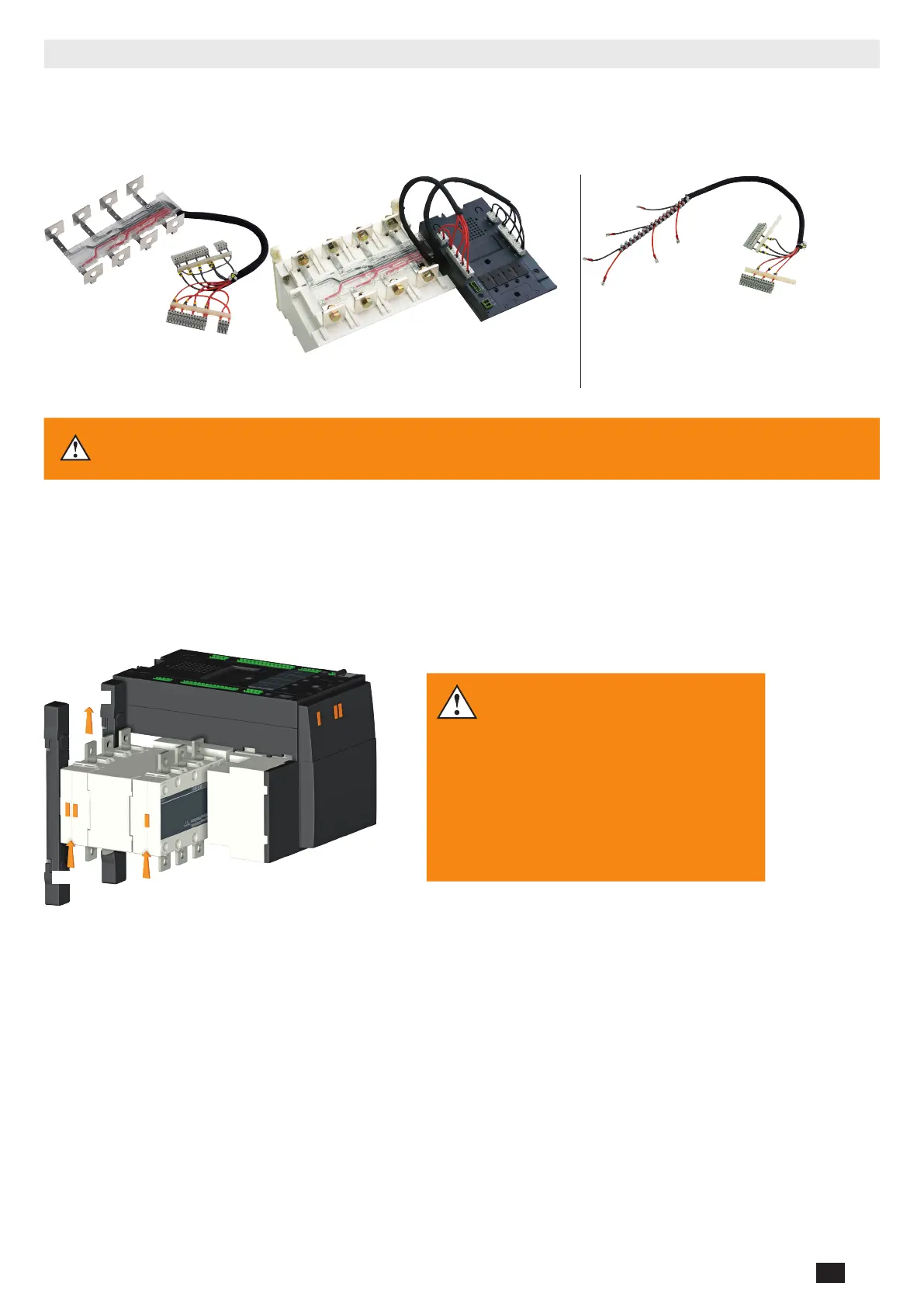

7.4. Voltage sensing and power supply kit
The ATySt voltage sensing kit is available as an accessory and is designed to tap directly of the power section on Switch I
and Switch II terminals without the need to add protection fuses. The sensing kit is designed with optimised cable lengths
and utilises silicon conductors held safely in an isolated mechanical support.
FRAME B3 - B5 - 125 A - 630 A FRAME B6 - B8 - 800 A - 3200 A
CAUTION
Ensure to mount the kit onto the product before connecting the power cables.
Be careful not to damage the contacts during kit mounting and during power cables
connections (Tighten the cables carefully).
7.4.1. Standard conguration
The sensing and power supply kit may be ordered in 3 phases network 4 wires or 3 wires.
It can be used with top or bottom cables entry. The only connection to respect is that measures of the source on Switch I
must be connected to the inputs located on the right of the electronic module and the measures of the source on Switch II
must be connected to the inputs located on the left of the electronic module.
Source
Load
Source
CAUTION
Pay attention when wiring the power cables
(Respect to the sensing kit legend).
3 wire kits (those without a neutral) do not
include for the power supply to terminals
(101-102 and 201 – 202).
Ensure that you have ordered the correct
reference prior to installation.
(Refer to the accessory section for details).
