socomec ATyS t - Door Protective Surround; Auxiliary Contacts (Additional); Position Padlocking (I - 0 - II); Ronis Key Interlocking System

66
EN
ATYSt - 541995C - SOCOMEC

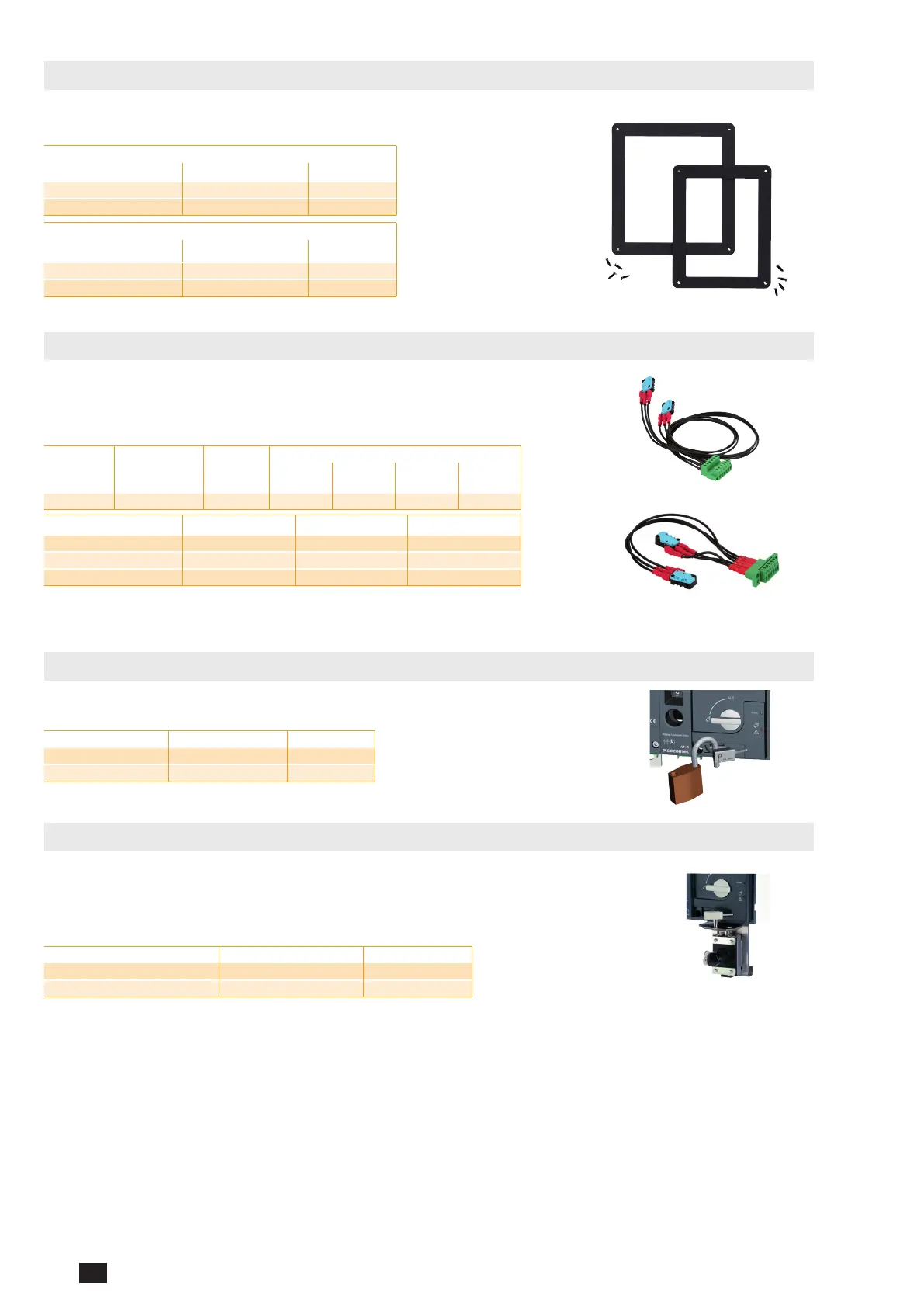

13.11. Door protective surround
Use
When direct access to the ATyS front face (mode selection, manual operation, display....) is required,
the door surround can be utilised to provide a clean and safe finish to the panel's cut-out.
For ATyS r
Rating(A) Framesize Reference
125 … 630 B3 … B5
1529 0012
800 … 3200 B6 … B8
1529 0080
ForATySd,t,gandp
Rating(A) Framesize Reference
125 … 630 B3 … B5
1539 0012
800 … 3200 B6 … B8
1539 0080
13.12. Auxiliary contacts (additional)
Use
Pre breaking and signalling of positions I and II: each
reference provides a single factory or customer fitted
NO/NC contacts for both positions.
Low level auxiliary contacts: please consult us.
Rating(A) Framesize Typeofmounting Reference
125 … 630 B3 … B5 Customer fitted
1599 0502
(1)
800 … 1600 B6 … B7 Customer fitted
1599 0532
(1)
2000 … 3200 B8 - included
(1) Up to 2 auxiliary contacts can be ordered.
800 to 1600 A
125 to 630 A
Framesize
Nominal
current (A)
OperatingcurrentI
e
(A)
Rating(A)
250 VAC
AC-13
400 VAC
AC-13
24 VDC
DC-13
48 VDC
DC-13
125 … 3200 B3 … B8 16 12 8 14 6
13.13. 3 position padlocking (I - 0 - II)
Use
Enables the ATyS to be padlocked in the 3 positions 0, I and II (factory fitted).
Rating(A) Framesize Reference
125 … 630 B3 … B5
9599 0003
800 … 3200 B6 … B8
9599 0004
13.14. RONIS Key interlocking system
Use
With the product in manual mode, it enables
locking in position 0 using a RONIS EL11AP
lock (factory fitted).
As standard, locking in position 0.
Optional padlocking in 3 positions: locking in
position I, 0 or II.
Rating(A) Framesize Reference
125 … 630 B3 … B5
9599 1006
800 … 3200 B6 … B8
9599 1004
