4.4.1. TE solid-core current sensors
The TE solid-core current sensors are used to set up measurement points in a new or existing installation. They are easy to
integrate as they are compact and respect the pitch of the circuit breakers. A wide range of accessories are also available for
direct tting on all type of cabling (cable, exible or rigid busbar) or on a DIN rail support or plate.
Thanks to the specic link, they are recognised by the DIRIS B-30 and the overall accuracy of the measurement chain is
guaranteed.

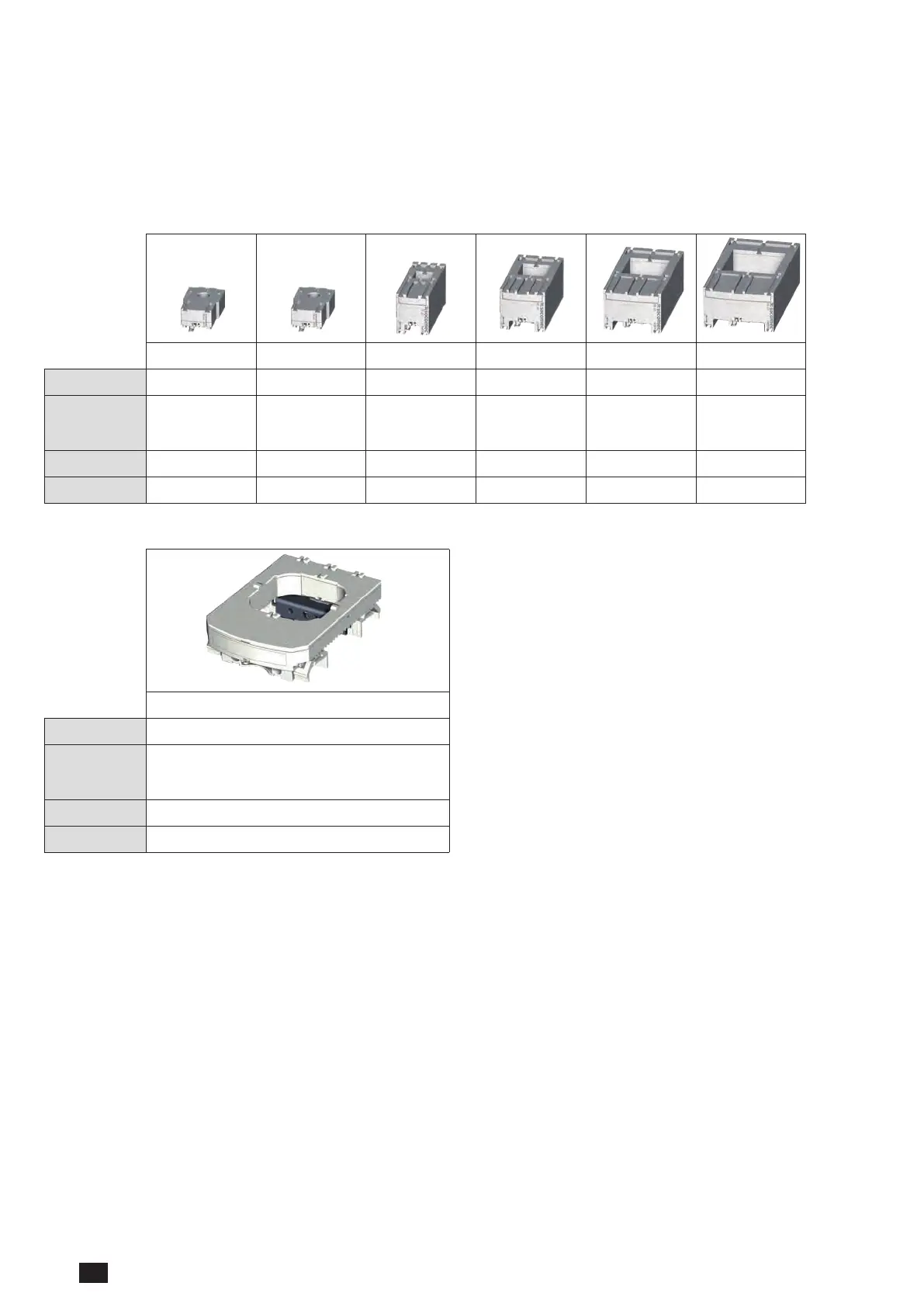

4.4.1.1. Range
TE-18 TE-18 TE-25 TE-35 TE-45 TE-55
Pitch 18 mm 18 mm 25 mm 35 mm 45 mm 55 mm
Nominal
current range
In
5 - 20A 25 - 63A 40 - 160A 63 - 250A 160 - 630A 400 - 1000A
I Max 24A 75.6A 192A 300A 756A 1200A
Reference 4829 0500 4829 0501 4829 0502 4829 0503 4829 0504 4829 0505
TE-90
Pitch 90 mm
Nominal
current range
In
600 - 2000A
I Max 2400A
Reference 4829 0506
