5. MOUNTING
The following paragraphs describe the installation of the DIRIS B-10L, the optional modules and the associated sensors.
5.1. Recommendations and safety
Refer to the safety instructions (section “2. Hazards and warnings”, page 7)
5.2. DIRIS B-10L mounting

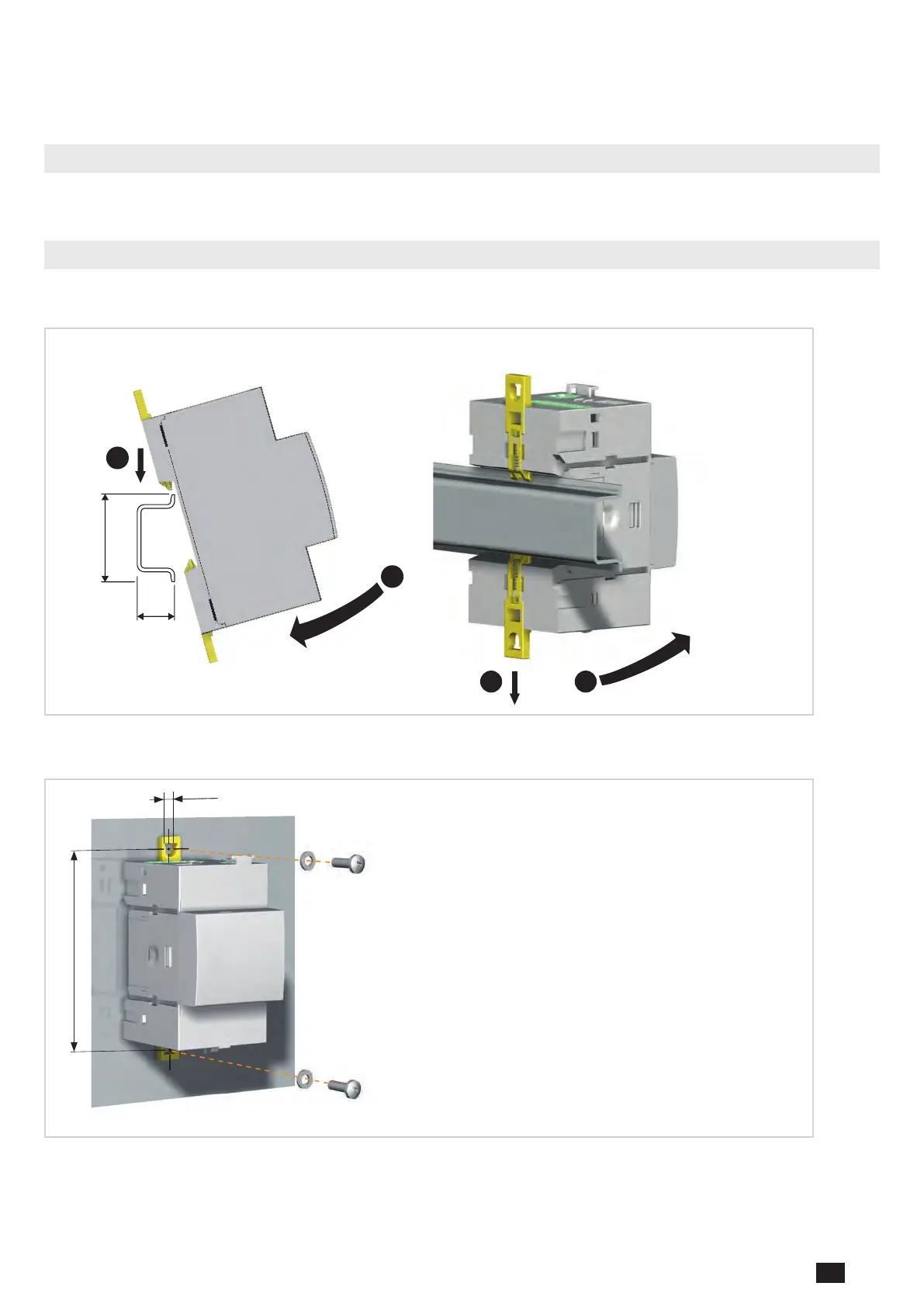

5.2.1. DIN rail mounting
Mounting Removal
L
1
2
0.29 or 0.59
7.5 or 15
1.38
35
1 2
5.2.2. Plate mounting
0.19 in
5 mm
3.94 in
100 mm
Type of screw: M4
Tightening torque: 0.5 Nm
Washer: maximum Ø 0.47in/12mm
