socomec DIRIS B-10L User Manual

63
EN
DIRIS B-10L - 551174A - SOCOMEC
• Alarms
- Measurement alarm: you can congure up to 8 measurement alarms each based on high and low thresholds.
- Protection alarm: you can congure up to 6 protection alarms to alert in case the protective device is opened, has
tripped or is defective.
- Logical alarm: you can congure up to 4 logical alarms to alert when there is a change of digital input status.
- System alarm: you can congure up to 4 system alarms to alert if there is a commissioning error.
• Date/time
- Date/time: to manually synchronise the date/time of the DIRIS B-10L with the computer’s date and time.
• Commands
- Reset: to reboot the DIRIS B-10L, reset alarm logs, Min/Max values, partial meters or restore the device to its factory
default settings.

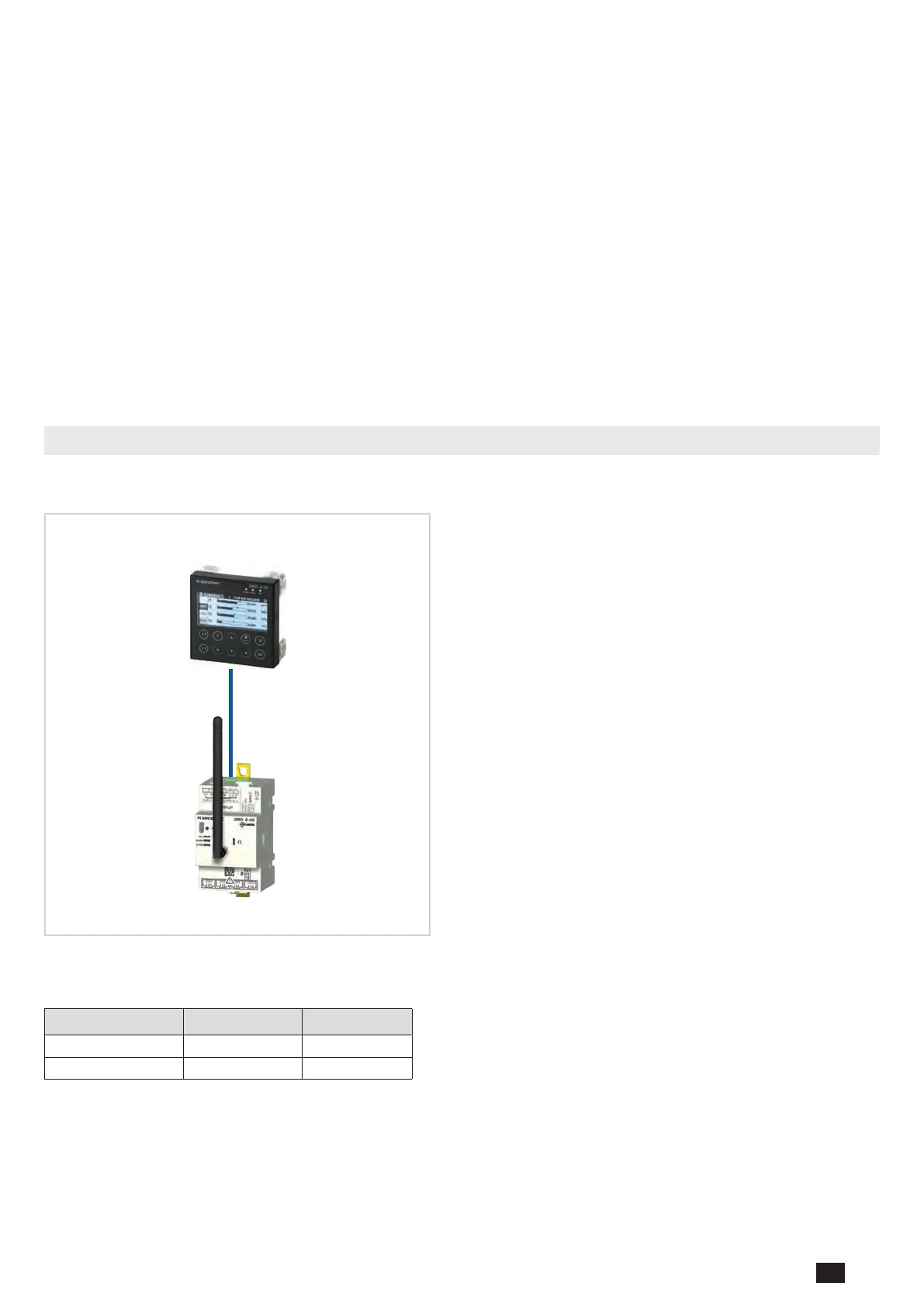

9.2. Conguration from the DIRIS D-30 remote display
9.2.1. Connection mode
Conguration from the remote display (RJ9)
RJ9
DIRISB-10L
Display
Refer to the manual for the DIRIS D-30 display for more details.
Connection cables for the remote display (RJ9):
Length (m) Quantity Reference
1.5 1 4829 0280
3 1 4829 0281
