23
EN
DIRIS B-10L - 551174A - SOCOMEC
The following guidelines for installation must be observed:
A maximum of 4 optional modules can be installed on the DIRISB-10L
One single temperature module (DIRIS O-it) may be used.
The DIRISB-10L assembly with its optional modules must be installed on a DIN rail or base plate.
Remote antenna mounting.

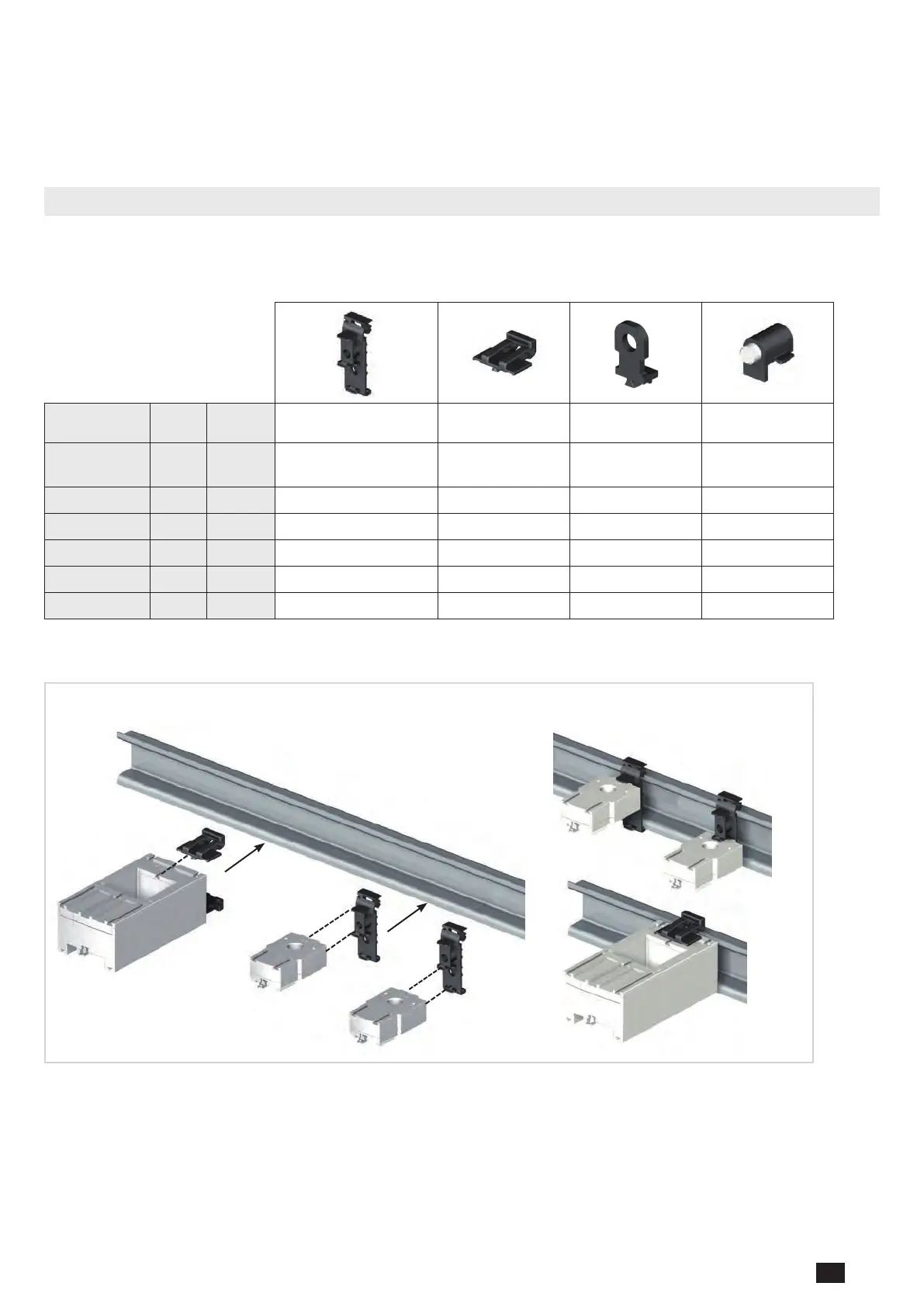

5.4. TE solid-core sensors mounting
5.4.1. Mounting accessories
The list of mounting accessories supplied with the sensors are listed below:
Reference Pitch
DIN rail and plate
mounting
DIN rail mounting Plate mounting Busbar mounting
4829 0500
4829 0501
TE-18 18 mm x
1
4829 0502 TE-25 25 mm x 2 x 4
4829 0503 TE-35 35 mm x 2 x 4 x 2
4829 0504 TE-45 45 mm x 2 x 4 x 2
4829 0505 TE-55 55 mm x 2 x 4 x 2
4829 0506 TE-90 90 mm x 2 x 6
5.4.2. DIN rail mounting
TE-18 -> TE-55
