ITALIANOENGLISH
18
IOMMASIPXX09-GB 04
10-40 kVA
MASTERYS IP+
3

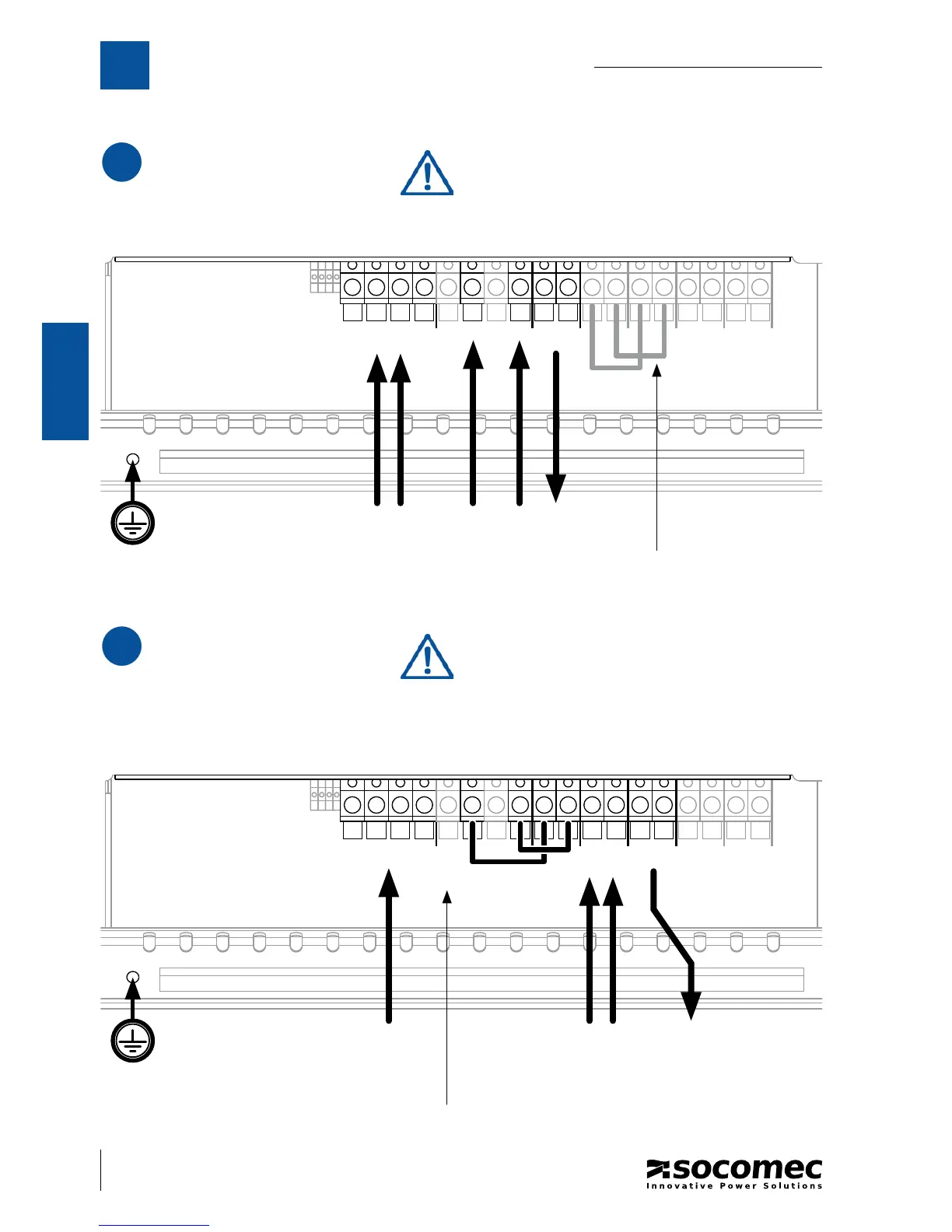

UNPACKING AND INSTALLATION
OF THE UNIT
EXT. BATTERY
+B2 -B2 -B1 +B1
OUTPUT
MAINS
SUPPLY
IN
TRANSFORMER
L11A L11 N11A N11 L14 N4 N3L13 L12 N2L1 L2 L3 N
AUXILIARY
MAINS
OUT
TRANSFORMER
3/1
MAINS AND AUXILIARY MAINS
ARE CONNECTED SEPARATELY.
Transformer on the bypass
power supply input
WARNING!
Remove the connecting cables provided between
OUTPUT and IN TRANSFORMER and use them to
connect AUXILIARY MAINS and OUT TRANSFORMER.
MAINS SUPPLY and AUXILIARY MAINS must be
connected as shown in the picture below.
AUXILIARY
MAINS
cable section
ø 16÷50 mm
2
TO
LOAD
MAINS
cable section
ø 6÷35 mm
2
provided
WARNING!
MAINS SUPPLY and AUXILIARY MAINS must be
connected as shown in the picture below.
EXT. BATTERY
+B2 -B2 -B1 +B1
OUTPUT
MAINS
SUPPLY
IN
TRANSFORMER
L11A L11 N11A N11 L14 N4 N3L13 L12 N2L1 L2 L3 N
AUXILIARY
MAINS
OUT
TRANSFORMER
3/1
MAINS AND AUXILIARY MAINS
ARE CONNECTED IN COMMON.
Output transformer
AUXILIARY
MAINS
cable section
ø 16÷50 mm
2
TO
LOAD
MAINS
cable section
ø 6÷35 mm
2
