ENGLISH
IOMMASIPXX09-GB 04 65
10-40 kVA
MASTERYS IP+
IP52 VERSION

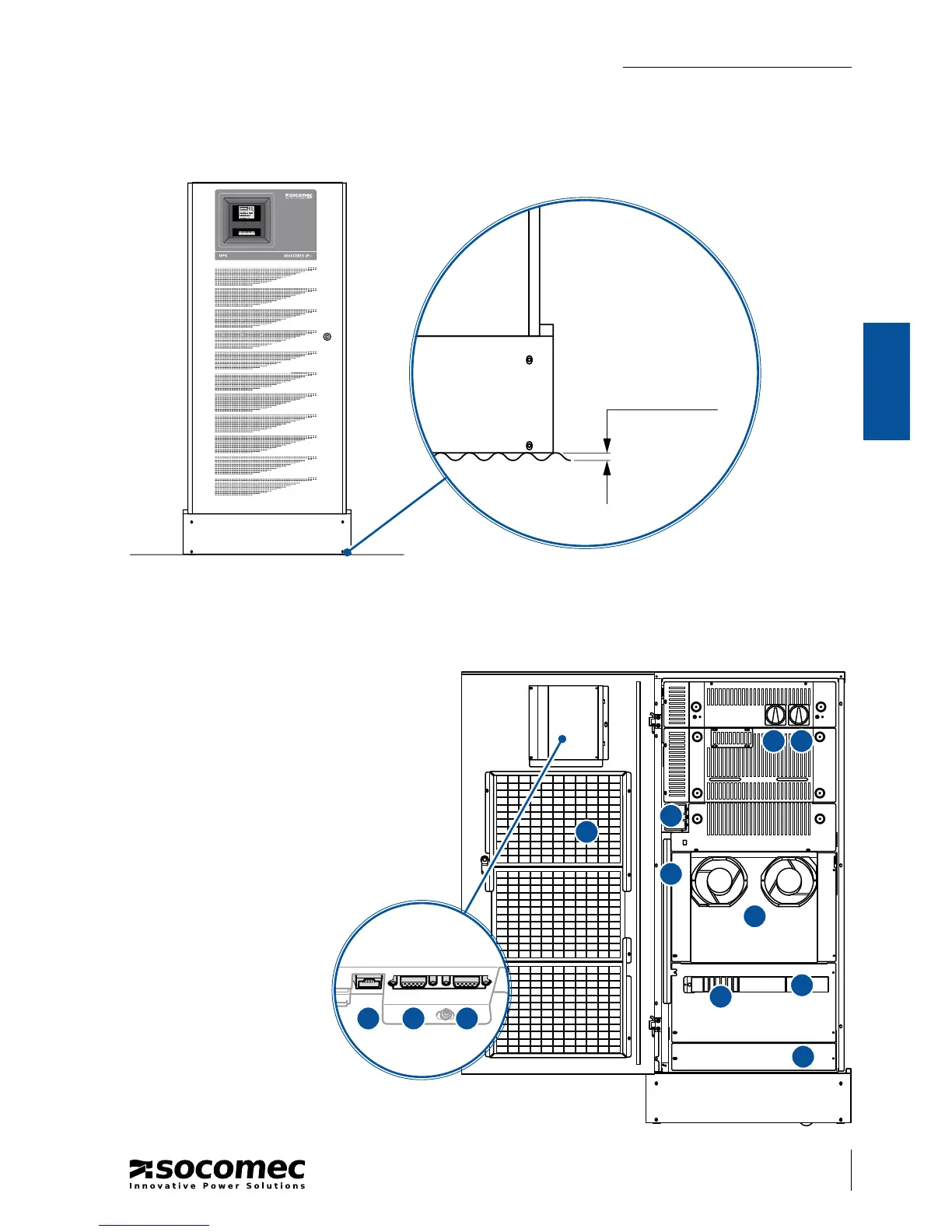

SURFACE ROUGHNESS TOLERANCE.
IDENTIFYING SWITCHING AND
CONNECTION ORGANS.
Legend.
A LAN RJ45 connector for Ethernet.
B Serial RS232 connector for Modem.
C Serial RS232/485 connector for after
sales.
D Cable trunking for control cables.
E Fans.
F DIN rail (behind the panel).
G Fuses.
H Power connections (behind the plastic
protection).
I Slots for communication cards (ADC card
installed as standard, 1 slot available for
an additional card)..
L Door air  lters.
Q2 Input switch (MAINS).
Q6 Output switch.
Q2 Q6
E
L
D
I
F
G
H
Masterys IP+ IP52 version
without batteries.
CBA
3 mm max
