Product Overview
Table 2-1 Description of appearance
Item Description
“Label”
Including performance label, which clearly identifies the device type,
serial number, parameters, certification, etc., and manufacturer label
describing name and address of manufacturer.
Electrical
connection area
Including BAT+/BAT- ports, communication port, BMS port,
grounding port, DIP, and POWER button. Please refer to “Electrical
Connection Area” for details.
Indicator panel
Provide a human-readable indication of an instrument signal. For
details, please refer to “Indicator Panel”.
Handle Lift the battery conveniently.
Weight and Dimensions
Table 2-2 Weight and dimensions of a battery module
Battery Module (TP-LD53)
Length (mm) 430
Width (mm) 150
Height (mm) 645
Net weight (kg) 48
645 mm
150 mm430 mm

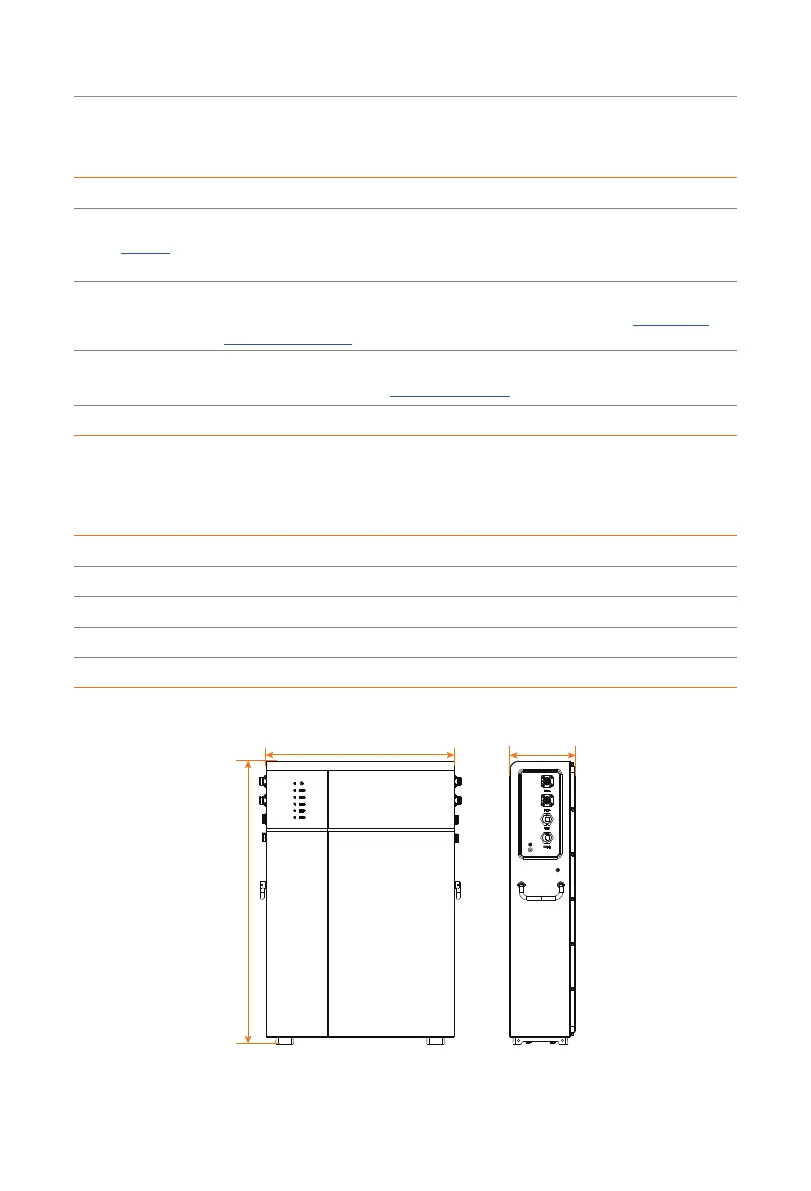

Figure 2-2 Dimension: Battery module (TP-LD53)
