Mechanical Installation
6.2.1 Floor Mounting
WARNING!
• The site for installing the battery module must be level (no slope, no pothole).
NOTICE!
• Allow sufficient clearance between adjacent walls or equipment for proper installation
of the battery module.
• The following steps take one (1) battery module as an example.
Step 1: Fix the L-shaped wall bracket (Part D) to the battery module with M6*12 cross
external hexagon screw (Part J) (× 2 pcs), but do not tighten them fully.
L-shaped wall bracket
M6 screw

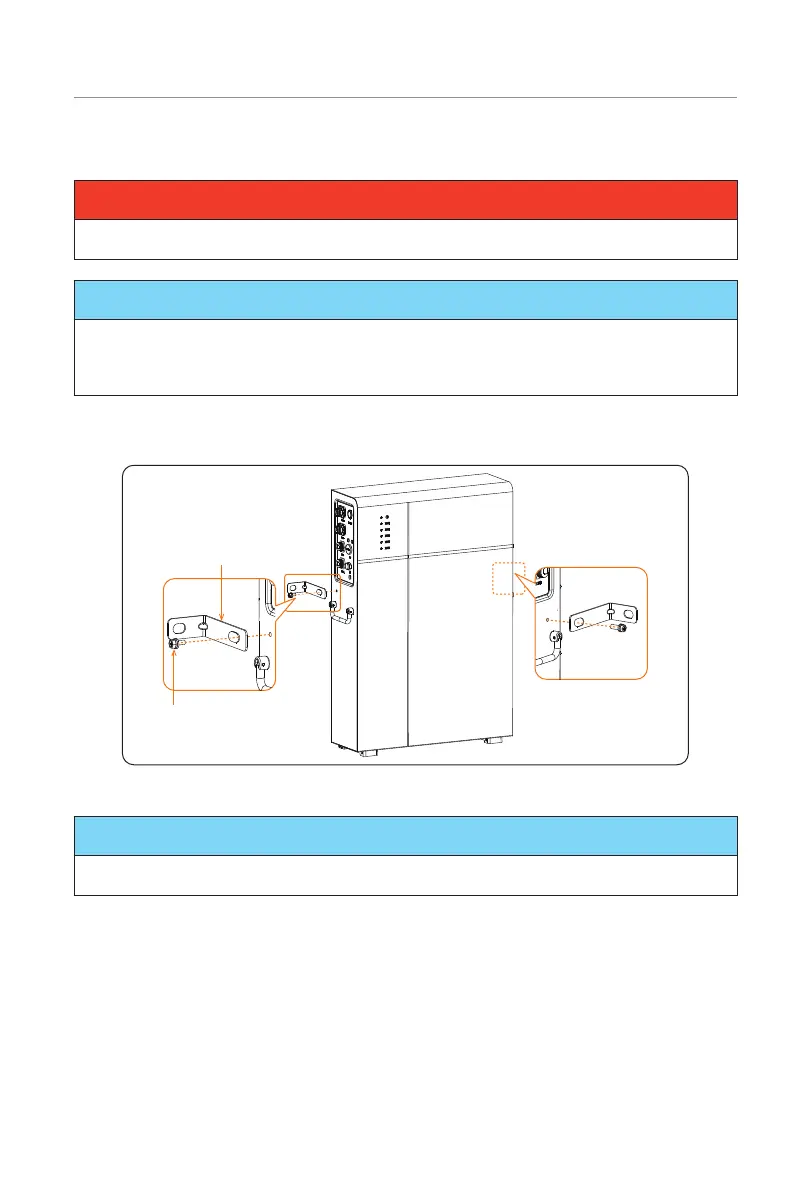

Figure 6-2 Fixing L-shaped wall bracket to the battery module
NOTICE!
• Do not tighten the screws fully.
