Mechanical Installation
6.2.2 Wall Mounting
Step 1: Attach the wall bracket to the wall, and make sure that it is level via the cylindrical
plastic bubble spirit level on the bracket.
Draw a circle along the inner ring, with a total of 4 circles.
Cylindrical plastic bubble spirit level
300 mm ~ 350 mm

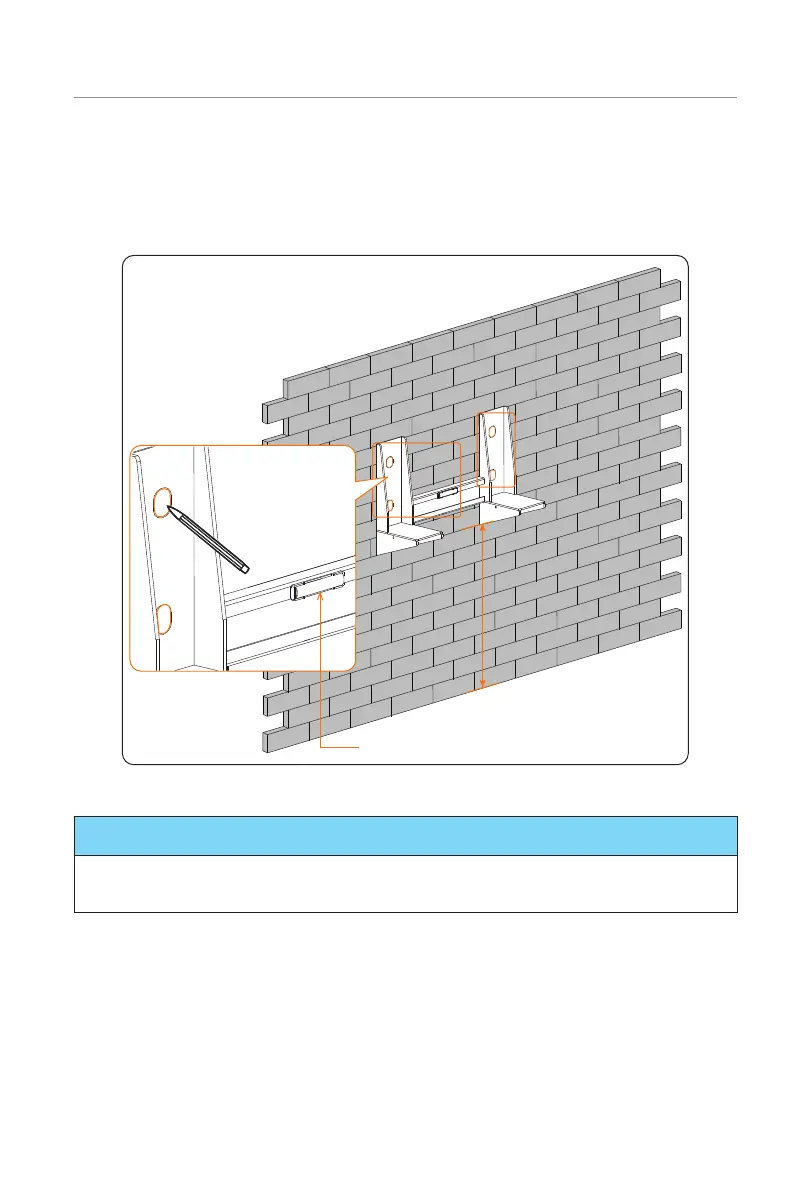

Figure 6-9 Drawing circles
NOTICE!
• A distance between 300 and 350 mm from the bottom of the wall bracket to the
ground must be reserved.
