Mechanical Installation
Step 7: Repeat steps 1 to 6 to install the second battery module, as well as the remaining
battery modules (if any)
.
Refer to
steps 1 to 6
400 mm ~ 600 mm

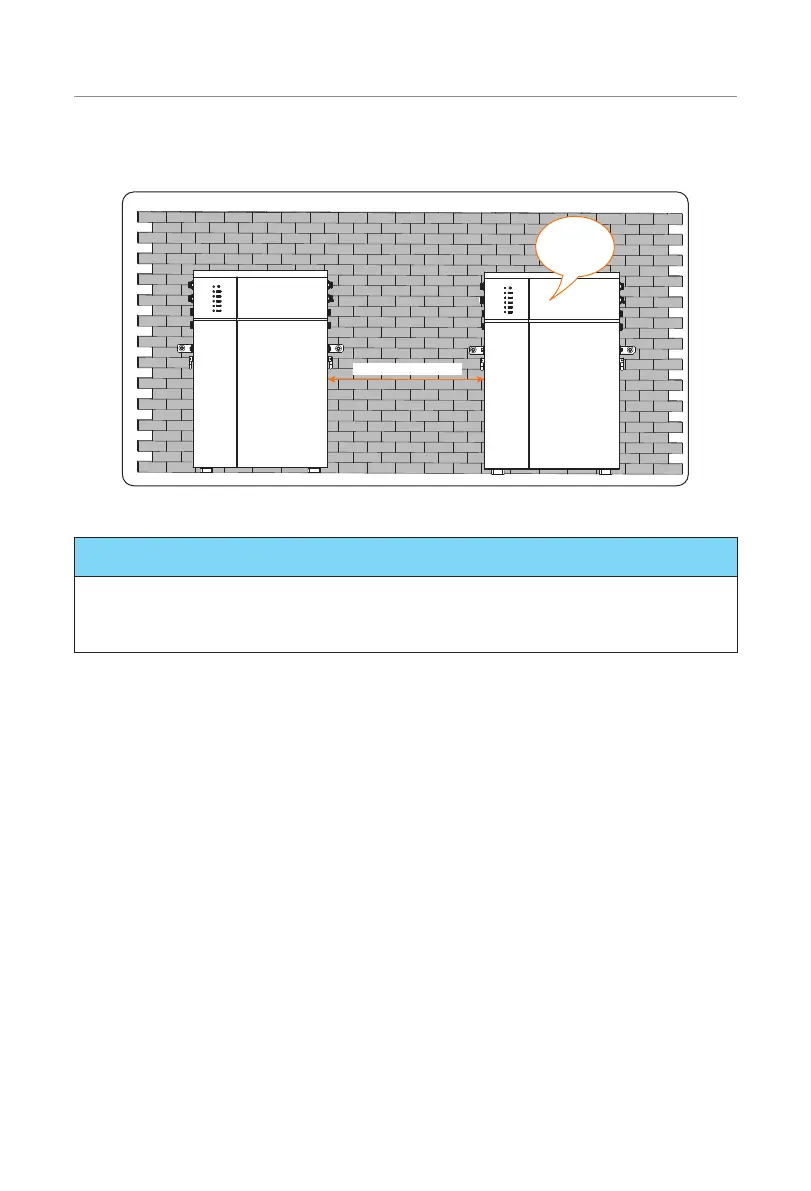

Figure 6-8 Installing the remaining battery module
NOTICE!
• The distance between 400 and 600 mm wide shall be provided from the left side
edge of a battery module to the right side edge of the neighbouring battery module.
• Up to sixteen (16) battery modules can be installed in a straight line.
