44
7 Wiring
NOTICE!
• Regarding the PE and communication cable, of which one end connects to the
inverter, it shall be made before conducting wiring.
• Regarding the power cable connecting two adjacent battery modules, the female
connector onto the power cable must be made before conducting wiring.
7.1 Details of Cables
Cables in the Accessories Kit for Battery Module

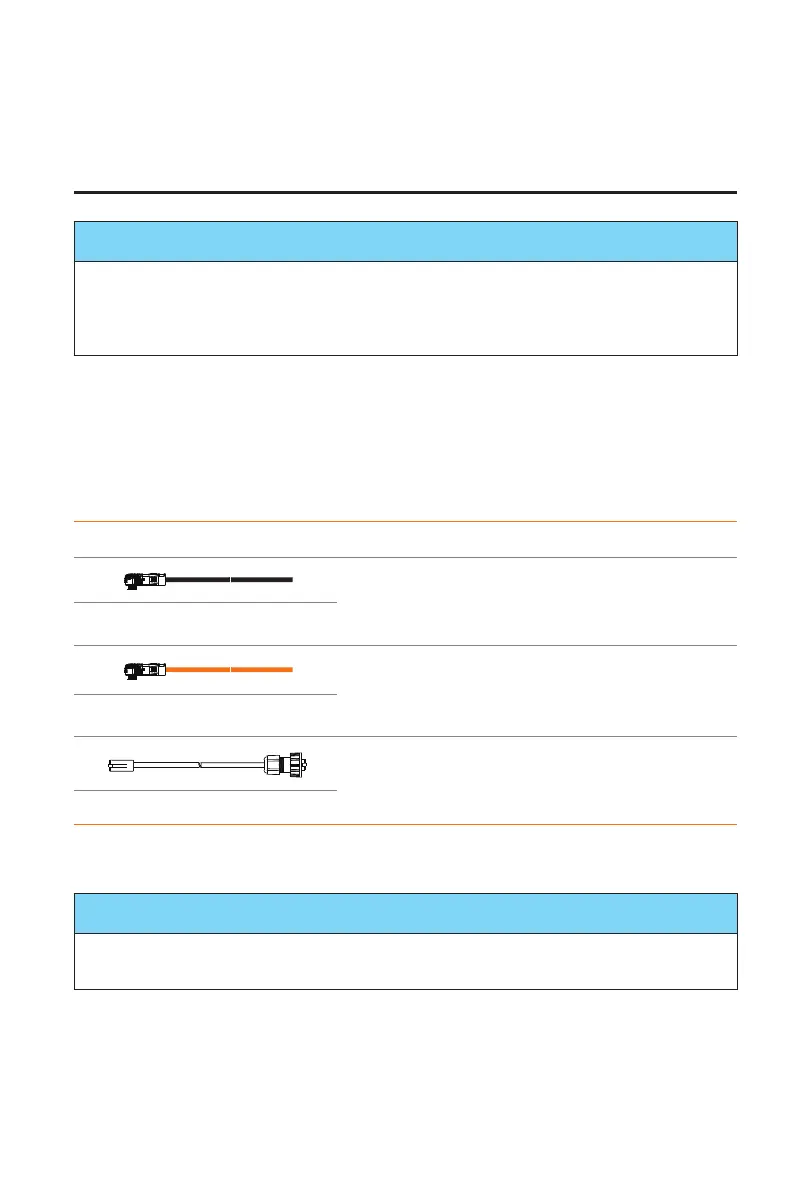

Table 7-4 Details of cables
Cable Length Purpose Qty
There are two terminals at both ends: one
connects to the "BAT-" port of a battery
module, and the other connects to the "BAT-"
port of the inverter.
1 pc
Power cable (black) 2000 mm
There are two terminals at both ends: one
connects to the "BAT+" port of a battery
module, and the other connects to the "BAT+"
port of the inverter.
1 pc
Power cable (orange) 2000 mm
There are two terminals at both ends: one
connects to the "BMS" port of a battery
module, and the other connects to the "BMS"
port of the inverter.
1 pc
Communication cable 2000 mm
Cables in the Accessories Kit for Cables (for two adjacent battery modules)
NOTICE!
• The cables in the following table are delivered with the Accessories Kit for Cables,
which needs to be purchased separately.
To Next Page
