45
Wiring
Table 7-5 Details of cables
There are two terminals at both ends: one
connects to the "COM1" port of the battery
module, and the other connects to the
"COM2" port of the adjacent battery modules.
1 pc
Communication cable 1000 mm

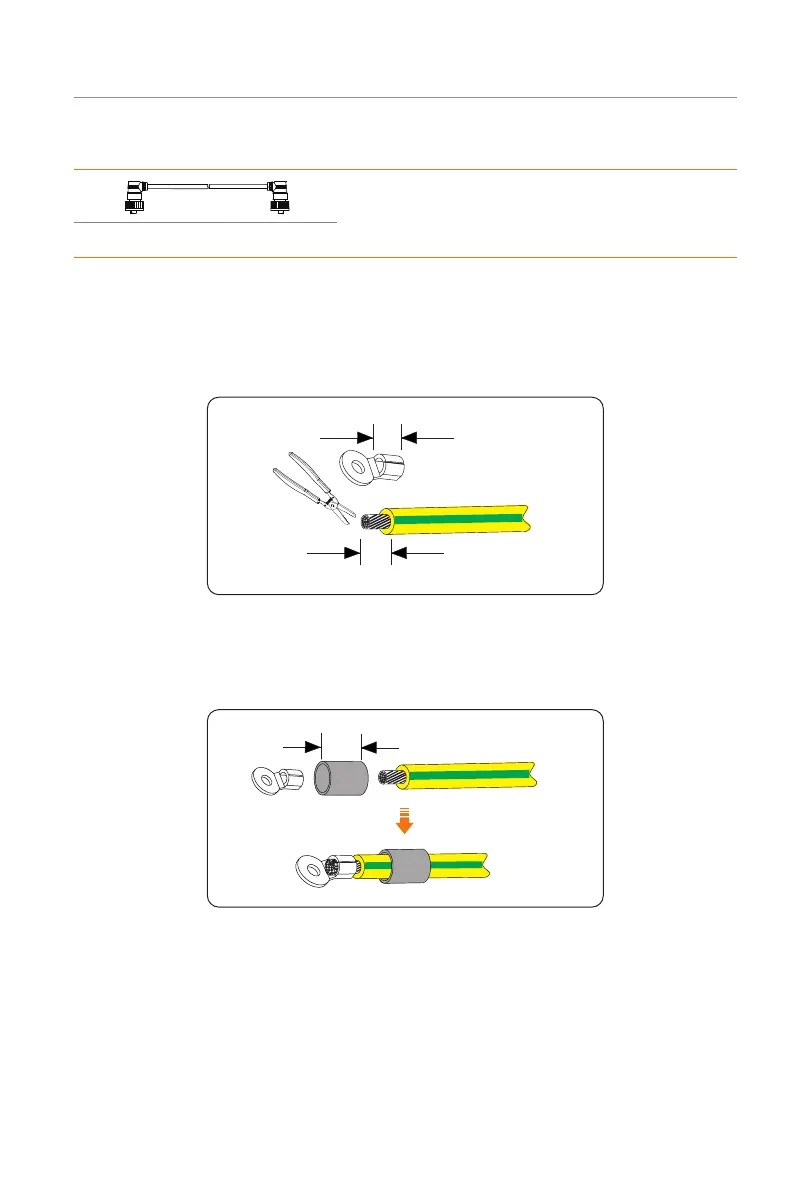

7.2 PE Connection
The steps for making PE connection are shown as follows:
Step 1: Strip the cable jacket about 12 to 15 mm from the end.
12 mm
16 mm²
Length=12-15 mm
Figure 7-1 Striping cable jacket
Step 2: Cut the heat-shrink tubing to about 28 to 30 mm long, carefully slide it onto the
end of the cable, and then carefully slip the wires all the way into the ring terminal
(Part F).
Heat-shrink tubing
Length=28-30 mm
Figure 7-2 Cutting heat-shrink tubing
To Next Page
