Product Overview
2.2.3 Indicator Panel
The battery module is equipped with a monochrome status light (blue) and five tri-colour
SOC power indicators (green/yellow/red) to show its operating status. The SOC power
indicators show the current battery percentage.
Status Light
SOC power
indicators
20%
40%
60%
100%
80%
SOC1
SOC2
SOC3
SOC4
SOC5

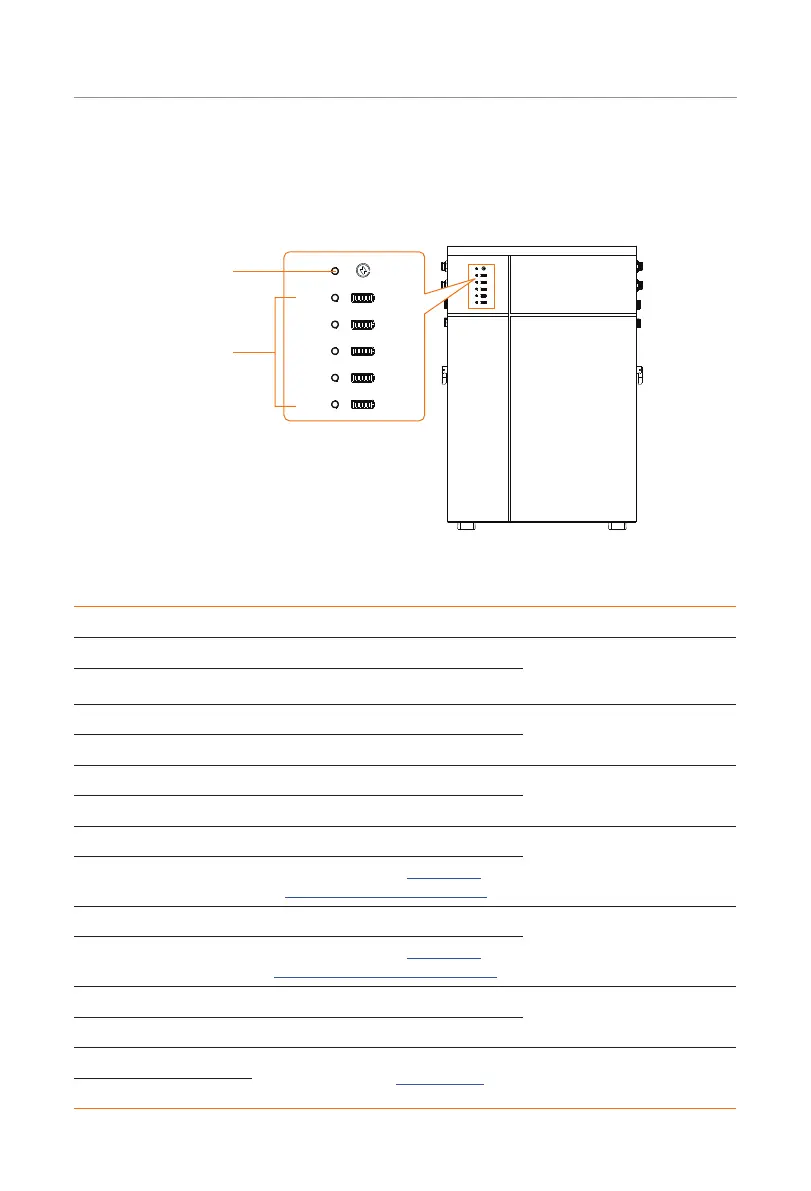

Figure 2-8 Indicators
Table 2-5 Description of indication
LED Colour State Indication
Status light
Green Flashing
Start up
SOC power indicators
Blue Solid
Status light
Yellow
Solid
→
Off
Shut down
SOC power indicators
Blue
Solid
→
Off
Status light
Green Solid
Standby
SOC power indicators
Blue Solid
Status light
Green Flashing
Charging
SOC power indicators
Please refer to “Indicator
information while charging”.
Status light
Green Flashing
Discharging
SOC power indicators
Please refer to “Indicator
information while discharging”.
Status light
Red Flashing
Fault
SOC power indicators
Blue Solid
Status light
Please refer to “Black Start”.
Black Start
SOC power indicators
