Product Overview
NOTICE!
• The function of Self Test will be performed when users turn the system on, with a
duration of 11 seconds. In the meantime, the status light will remain on solid yellow
light, and the SOC power indicators will remain on solid blue light based on their
actual remaining capacity.
Table 2-6 Indicator information while charging
SOC value Status light SOC1 SOC2 SOC3 SOC4 SOC5
LED colour Green Blue Blue Blue Blue Blue
0% = SOC Flashing Light off Light off Light off Light off Light off
0% < SOC < 20% Flashing Flash Light off Light off Light off Light off
20% ≤ SOC < 40% Flashing Flash Flash Light off Light off Light off
40% ≤ SOC < 60% Flashing Flash Flash Flash Light off Light off
60% ≤ SOC < 80% Flashing Flash Flash Flash Flash Light off
80% ≤ SOC ≤ 100% Flashing Flash Flash Flash Flash Flash
20%
40%
SOC1
SOC2
SOC3
SOC4
SOC5
60%
80%
100%
Status light

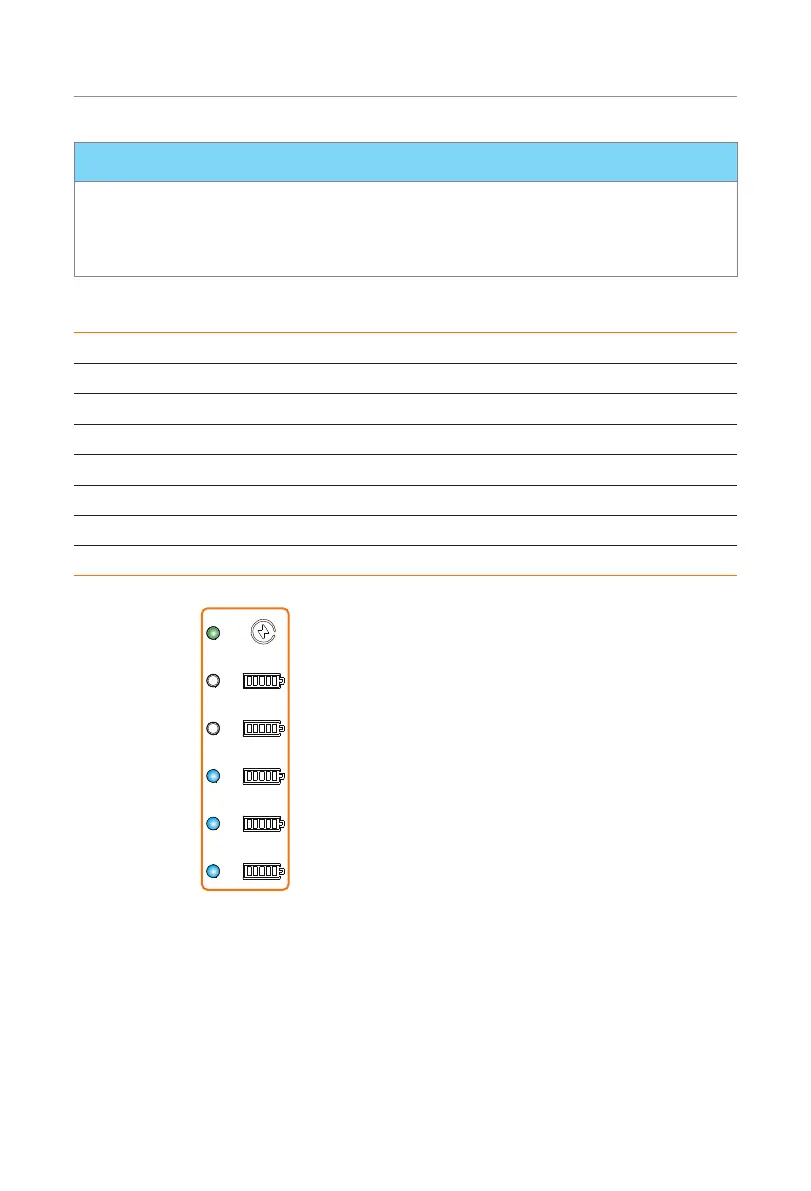

Figure 2-9 Charging
If the battery level is at 60%, the SOC power
indicators will show as follows:
• The first three SOC power indicators (SOC1,
SOC2 and SOC3) will flash blue light every 1
second;
• The remaining SOC power indicators (SOC4
and SOC5) will be off.

Solax TRIPLE POWER TP-LD53 Specifications

General

Brand	Solax
Model	TRIPLE POWER TP-LD53
Category	Inverter
Language	English
