Wiring
Step 3: Crimp the terminal, and heat the heat-shrink tubing after it wraps the end of
terminal.

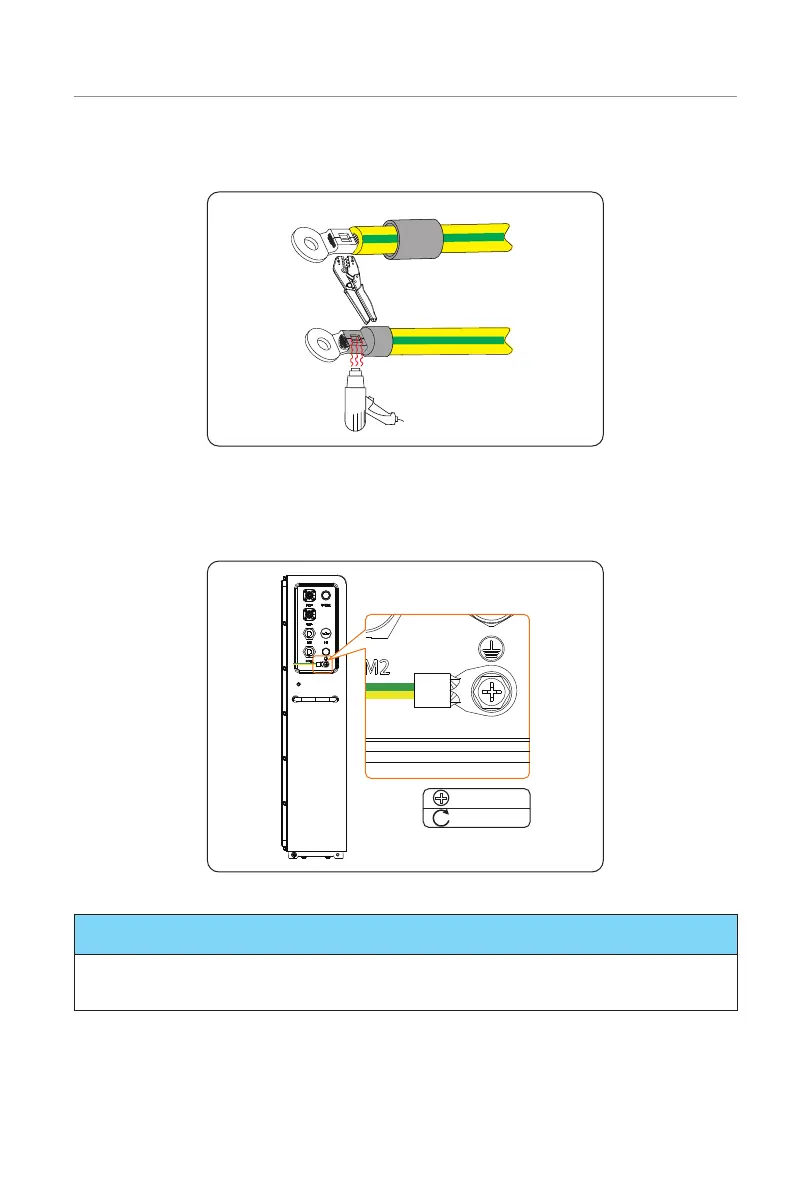

Figure 7-3 Crimping and heating
Step 4: Unscrew the M5 screw, and then connect the assembled grounding cable to the
grounding port of the battery module, and then tighten M5 screw (Tightening
torque: 2.5-3 N·m).
M5
2.5-3 N·m
Figure 7-4 Tightening M5 screws
NOTICE!
• Regarding the grounding cable that is prepared by the user, a wire size of 16 mm² for
the cable is recommended.
