Preparation before Installation
Solid brick or concrete wall with a
minimum thickness of 100 mm
Solid brick wall
or
concrete wall
55 mm
Battery module
Plan view
400 mm ~ 600 mm
200 mm ~300 mm
Elevation view
400 mm ~ 600 mm
Solid brick wall
or
concrete wall
200 mm ~300 mm
300 mm ~ 350 mm

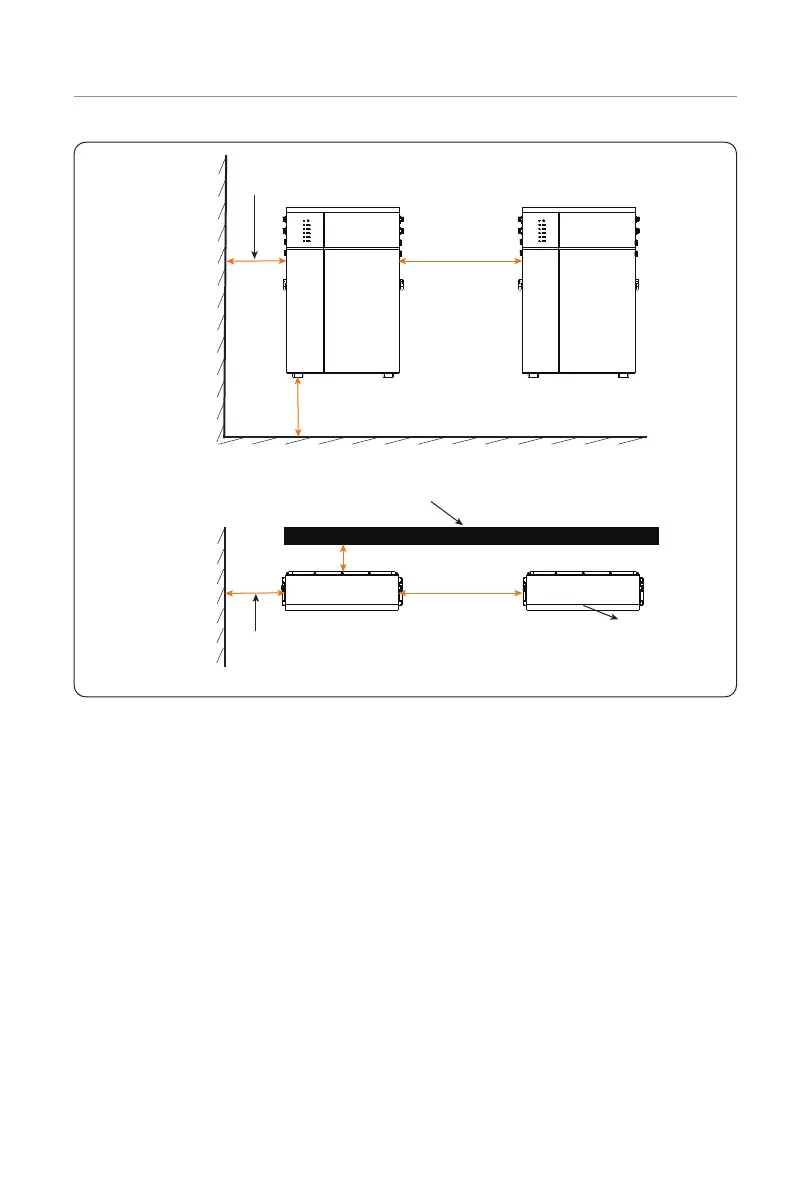

Figure 4-3 Clearance requirement about wall mounting
