42
Mechanical Installation
Step 9: Gently lift the battery module onto the wall bracket, and locate it against the wall
bracket.
Correctly insert and tighten self-tapping screw (Part I) (× 2 pcs) to secure the
L-shaped wall bracket on both sides to the wall (Tightening torque: 6-8 N·m).
Fully tighten the M6*12 cross external hexagon screw (Part J) (× 2) on both sides
(Tightening torque: 4-5 N·m).
M6 × 12
4-5 N·m
6-8 N·m
6-8 N·m

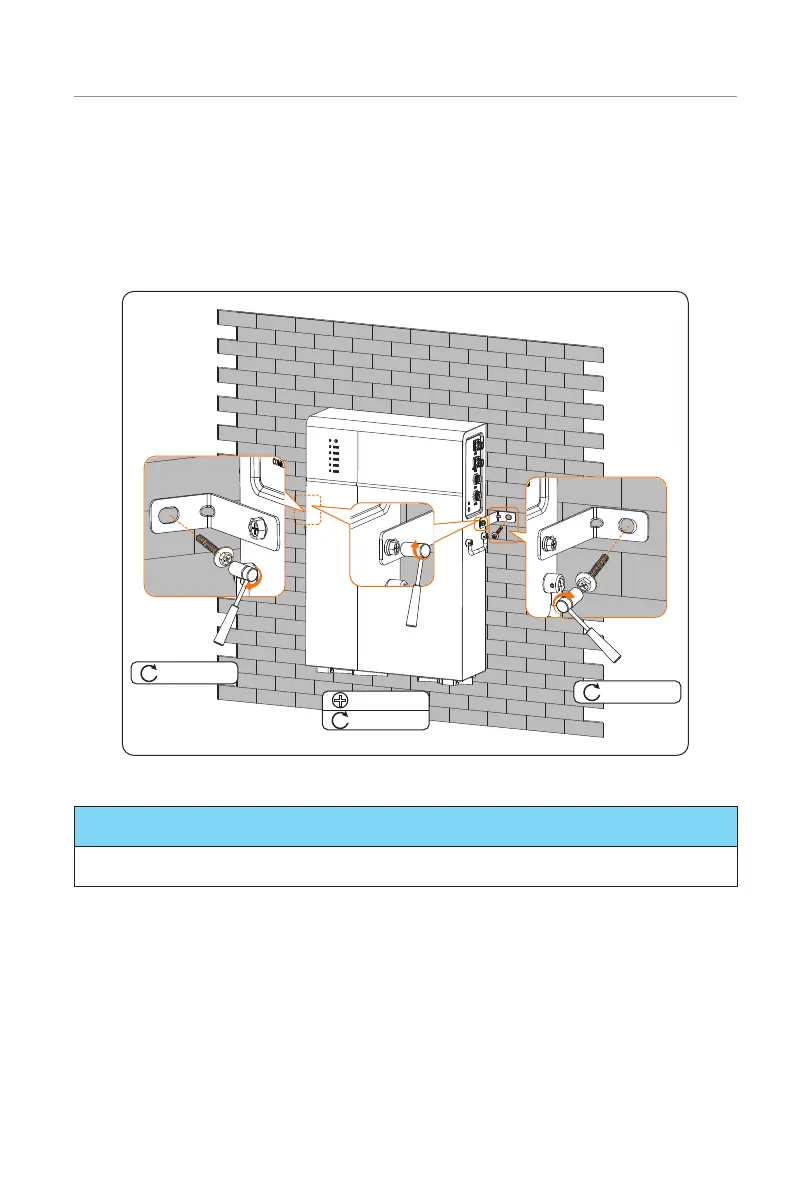

Figure 6-17 Tightening tapping screws and M6 screws
NOTICE!
• At least two persons are required to lift the battery module.
