54
Wiring
Inverter
Power cable (orange)
Power cable (black)
Grounding cable
Click
Communication cable
Waterproof
cap
Right side view

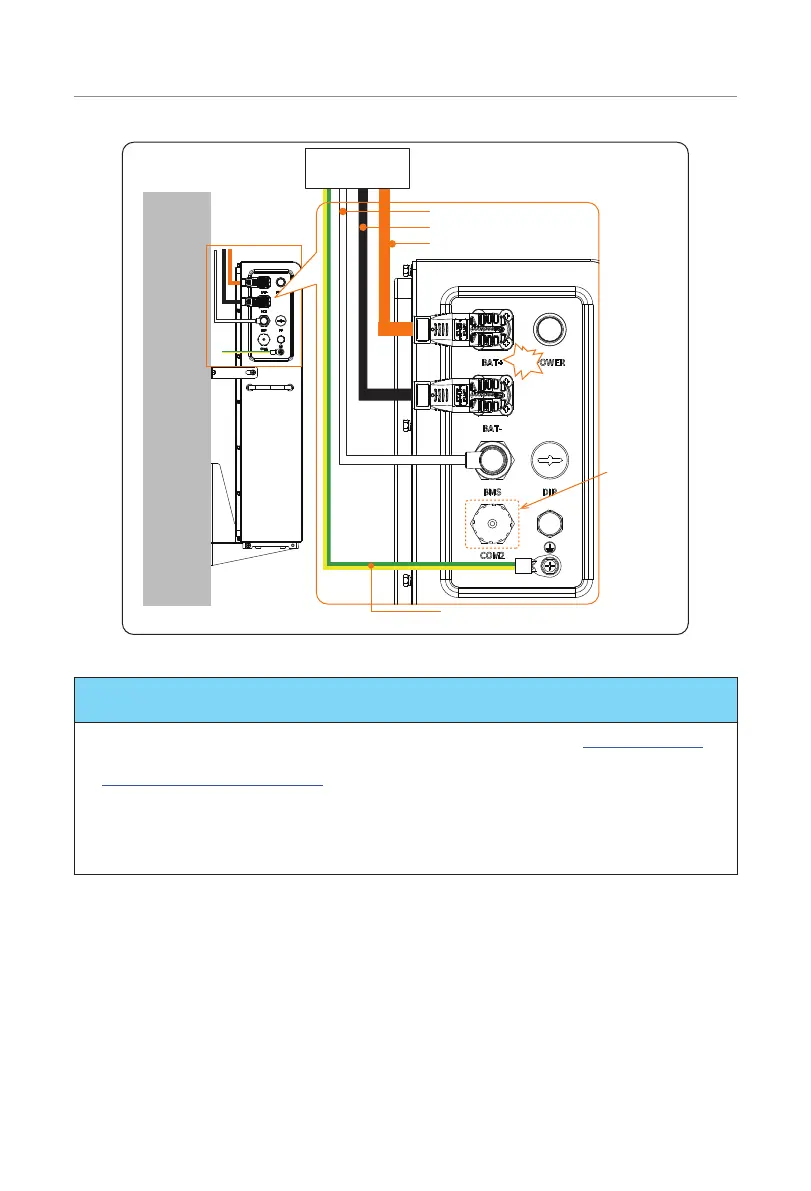

Figure 7-17 Cable connection of the right electrical connection area
NOTICE!
• Regarding the making process of grounding cable, please refer to “PE Connection”.
• Regarding the making process of communication cable, please refer to
“Communication Connection”.
• A sound of "Click" should be heard while plugging in the power cables. It indicates
that the cable connectors are properly plugged into the ports.
• The waterproof cap has been covered before delivery.
• Don't violently remove the power cables when they are locked.
