Wiring
NOTICE!
• Regarding the making process of power cable, please refer to “Installation of Female
Connector onto Power Cable”.
• A corrugated pipe with an external diameter of 60 mm is recommended for use to
keep cable insulation in place and avoid potential damages, when conducting wiring
between two adjacent battery modules.
• A sound of "Click" should be heard while plugging in the power cables. It indicates
that the cable connectors are properly plugged into the ports.
• Don't violently remove the power cables when they are locked.
Step 3: Cover "BAT+" and "BAT-" ports with waterproof plugs (Part E), as well as "BMS" and
"COM1" ports with waterproof caps.

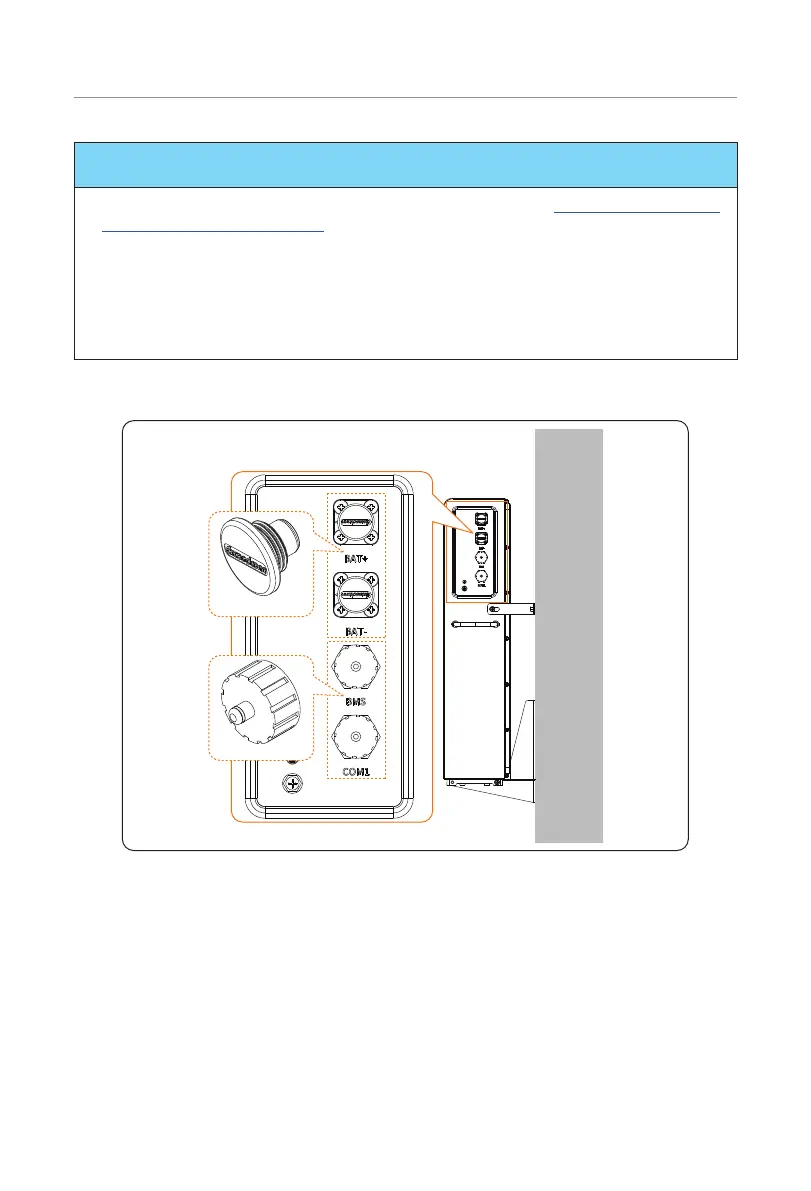

Waterproof plug
Waterproof cap
Left side view
Figure 7-22 Left electrical area of the battery module
Tip: Use safety gloves when connecting battery modules.
