61
Wiring
Left side view
Inverter
Grounding cable
Waterproof
cap
Click
Power cable (orange)
Power cable (black)
Communication cable

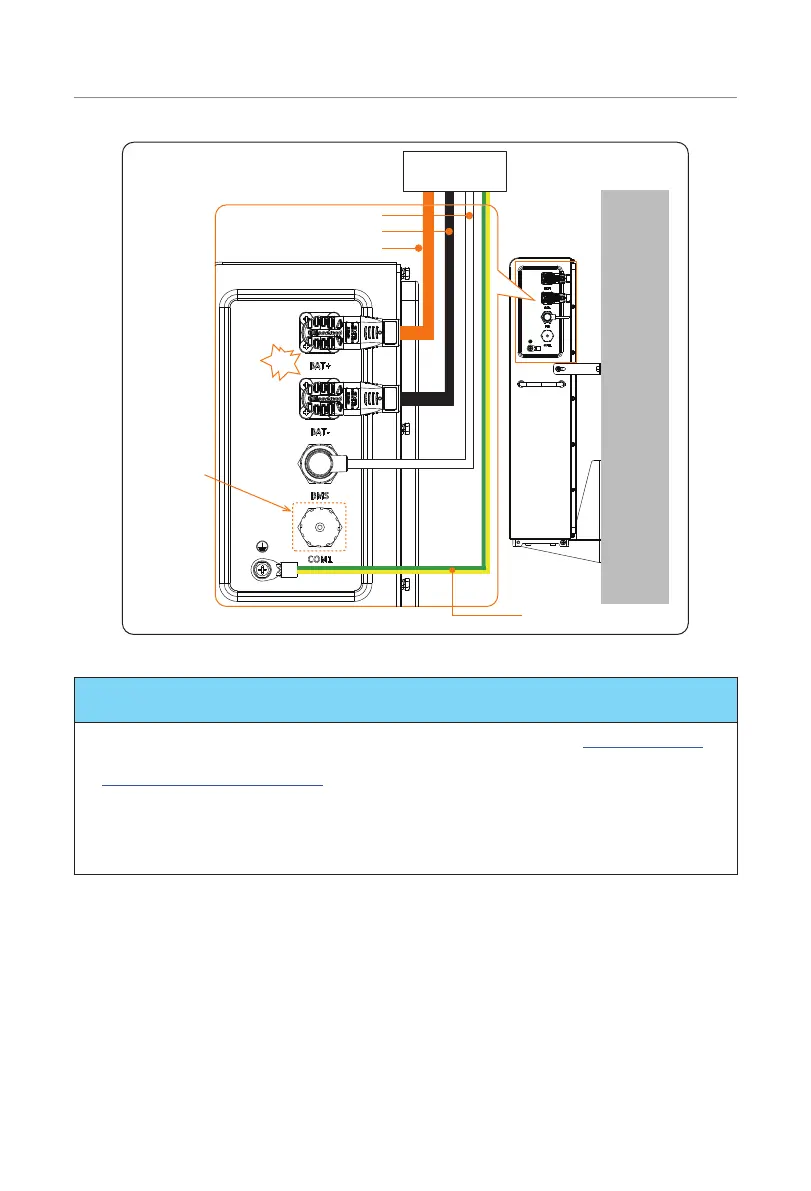

Figure 7-23 Cable connection of the left electrical connection area
NOTICE!
• Regarding the making process of grounding cable, please refer to “PE Connection”.
• Regarding the making process of communication cable, please refer to
“Communication Connection”.
• A sound of "Click" should be heard while plugging in the power cables. It indicates
that the cable connectors are properly plugged into the ports.
• The waterproof cap has been covered before delivery.
• Don't violently remove the power cables when they are locked.
To Next Page
