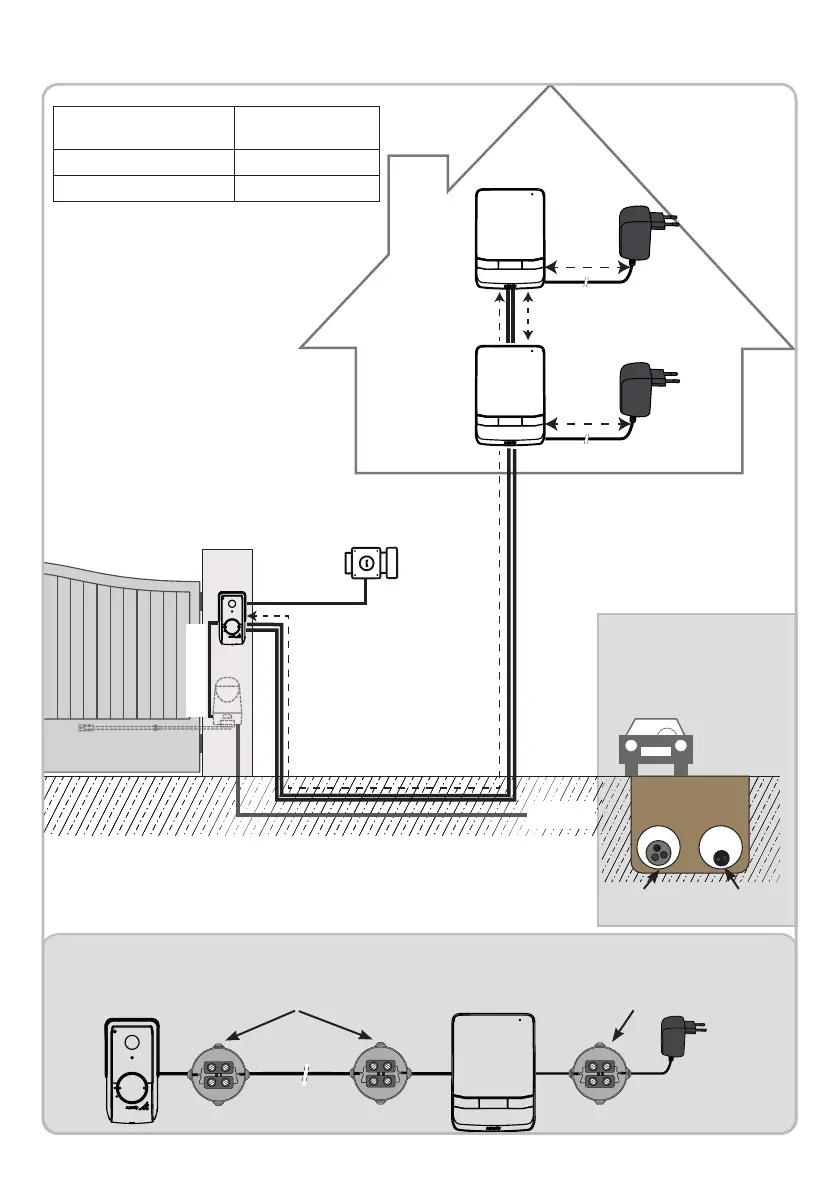

3.4 Standard installation
2 x 0.75 mm² min.
(Optional)
2 wires
150 m max between the station
and the farthest monitor
50 m max
Max. 2 junction boxes Max. 1 junction box
8 m max
8 m max
2 x 0.75 mm² min.
Distance between the door
station and the monitor
Cable to be used
Less than 100 m 2 x 0.5 mm² wires min.
Between 100 and 150 m 2 x 0.75 mm² wires min.
Note: We recommend that the
video entry phone cable
and the gate motor cable(s)
are installed in separate
sheaths.
The cables
are not
supplied.
Gate motor cables Cable from station
to monitor
Note: If you need to use junction boxes to cable the video entry phone, do not use more than two boxes between the station and
the monitor, or more than one box between the monitor and the power plug.
