EN Video phone V100+
2.5 Meaning of logos on the mains adaptor
: the mains adaptor supplied with the product should only be used in a dry, sheltered place.
: the mains adaptor supplied with the product is the double-insulating type and therefore does not need to be connected to the earth conductor.
: direct current
: alternating current
3. PRODUCT DESCRIPTION

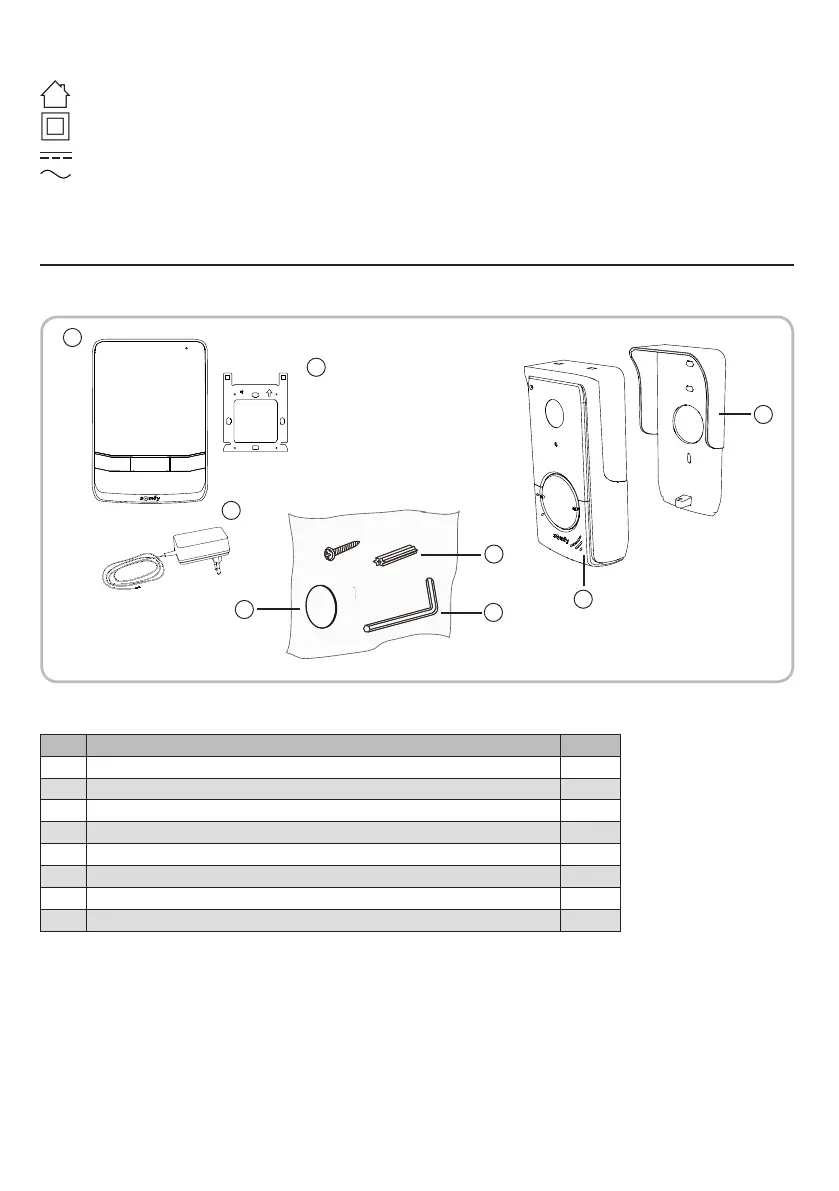

3.1 Composition of the kit
x5
x5
x1
Xxxxxxxx
x1
x
5
x
5
x
1
Xxxxxxxx
x
1
No. Designation Quantity
1 Indoor monitor 1
2 Monitor mounting bracket 1
3 Monitor mains adaptor 1
4 Door station 1
5 Rain shield 1
6 Screws + plugs for mounting the monitor and door station 5 + 5
7 Tamper-proof torx key 1
8 Additional name plate label 1
3.2 Product description
The video entry phone comprises an indoor monitor and a door station. The indoor monitor is connected to the door station using 2 wires. The door station
can then be connected to a gate motorisation or to an electric latch/lock, 12 V AC or DC - 800 A max. This allows the video entry phone to be used to open a
small or large gate.
The indoor monitor is also fitted with an RTS (Radio Technology Somfy) radio transmitter. This wireless control is used to operate a garage door, lighting,
roller shutters or a Somfy gate (if within range of the monitor).
