EN Video phone V100+

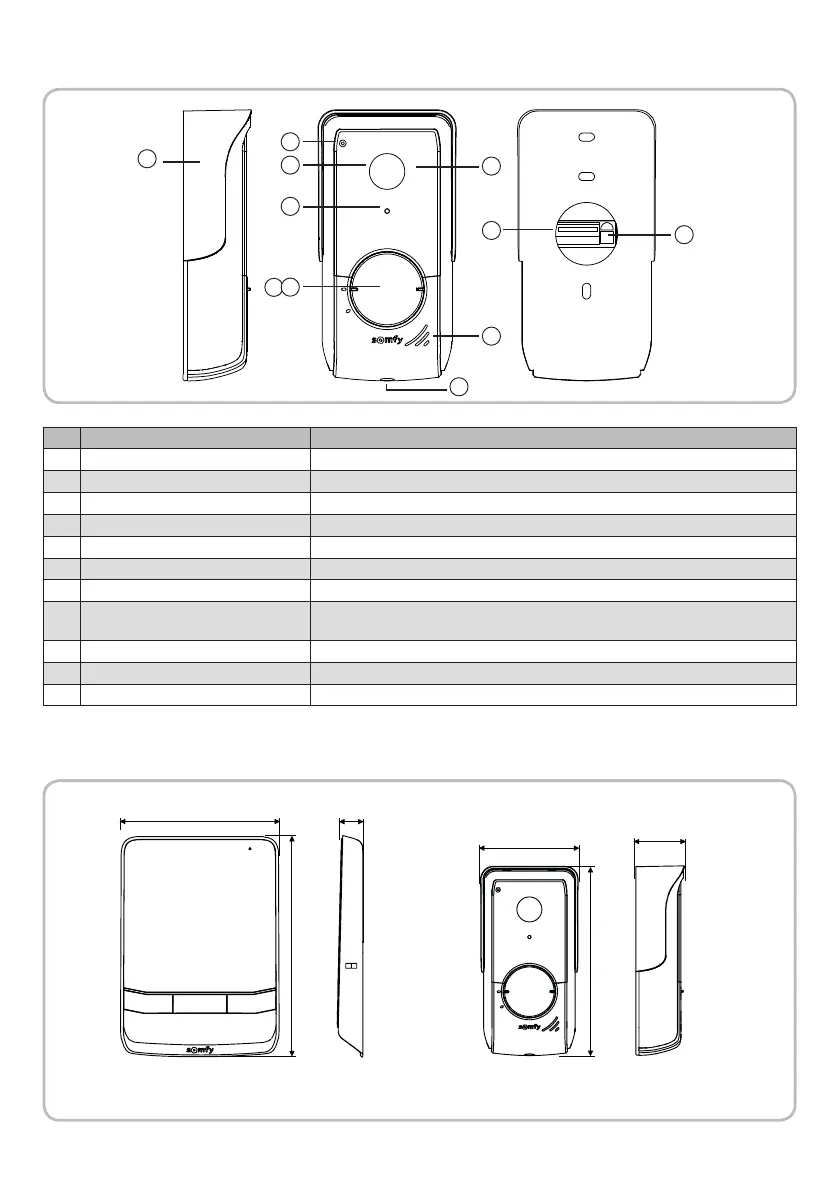

3.2.2 Door station
No. Designation Description
1 Rain shield Protects the camera from the rain.
2 Camera Films visitors and sends the image to the monitor.
3 Infrared LEDs Provide enhanced night vision.
4 Brightness sensor Automatically activates the infrared LEDs when it is dark.
5 Microphone Enables visitors to talk to the person or people inside.
6 Speaker Enables visitors to hear the person or people inside.
7 Back-lit name plate Indicates your name on a label.
8 Back-lit call button Enables visitors to trigger the monitor’s ring tone. The camera and the monitor screen are
switched on.
9 Anti-tamper screw Prevents the door station from being opened without the tamper-proof torx key.
10 Terminal Connects the monitor station to a gate motorisation or an electric latch/lock.
11 Speaker volume adjustment button This is used to adjust the volume of the door station speaker.
(thickness with
rain shield)
(thickness with
metal bracket)
130
77
45
185
151
22
3.3 Dimensions (mm)
1
5
2
4
7
8
3
10
11
6
9
