Sonoscape E1 User Manual

2 System Overview
14 Basic User Manual
2.3.2 Side View
1
2
3
4
5
6
7
8

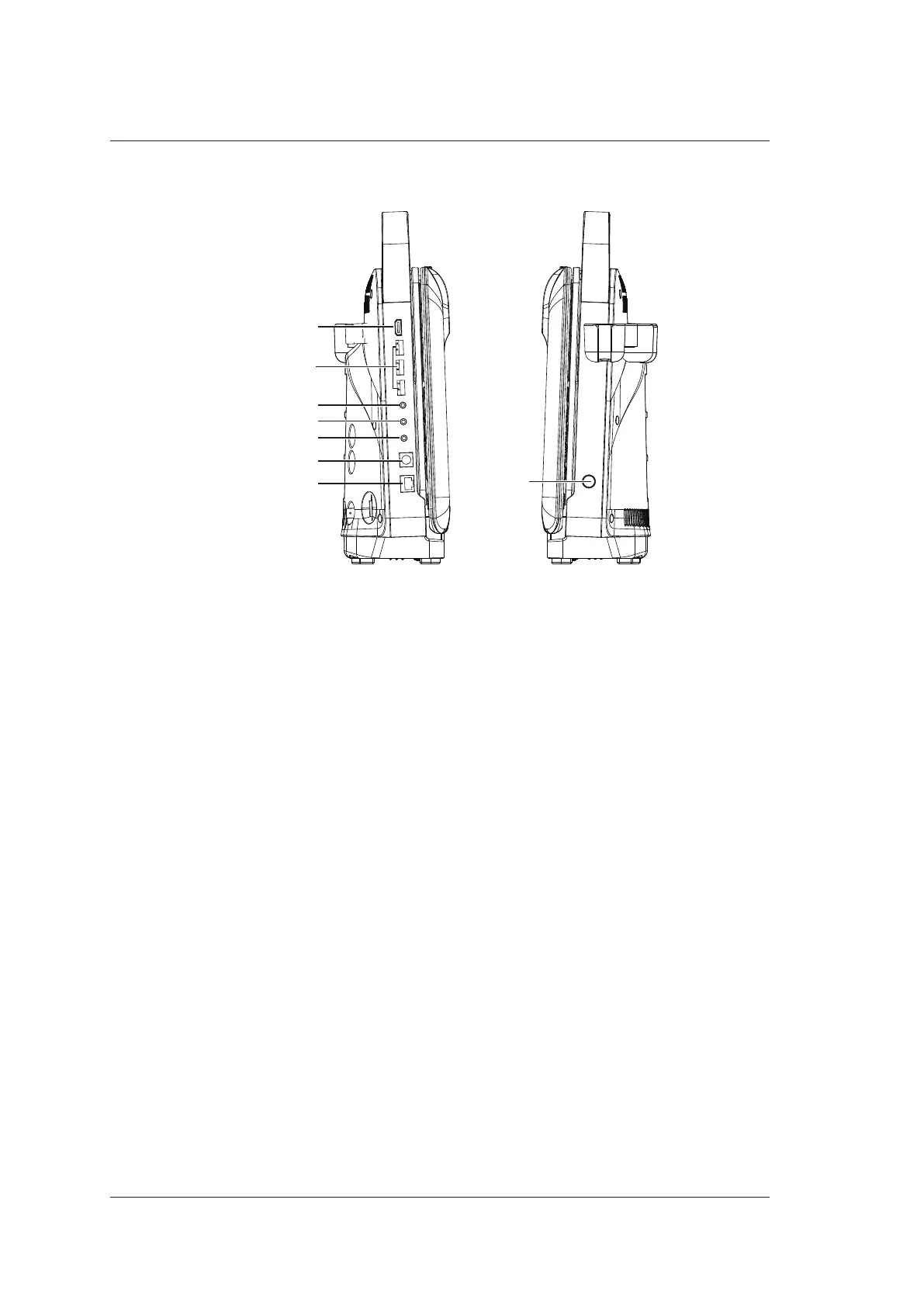

Figure 2-3 Side Views
1 HDMI video output port 5 Print control port
2 USB port 6 S-Video output port
3 Audio output port 7 Network port (DICOM)
4 Audio input port 8 Power on/off button

Sonoscape E1 Specifications

General

Type	Portable Ultrasound System
Display	15-inch LCD
Transducer Ports	2
Cine Loop	Yes
Imaging Modes	Color Doppler, Power Doppler
Applications	Obstetrics, Gynecology, Vascular, Musculoskeletal
Probe Connectors	2
Ports	VGA, USB, Ethernet
Supported Probes	Convex, Linear, Phased Array
