Stand
The stand for iLook holds the iLook system when it is in use and stores the system when it is not in
use. The stand provides a storage area for the transducer. The stand charges the battery in the
system. The stand also provides connections for the power supply, an RS-232 cable for downloading
images to a personal computer (PC), and a video cable for connecting a printer.
Note: The USB and print control connectors are not active.

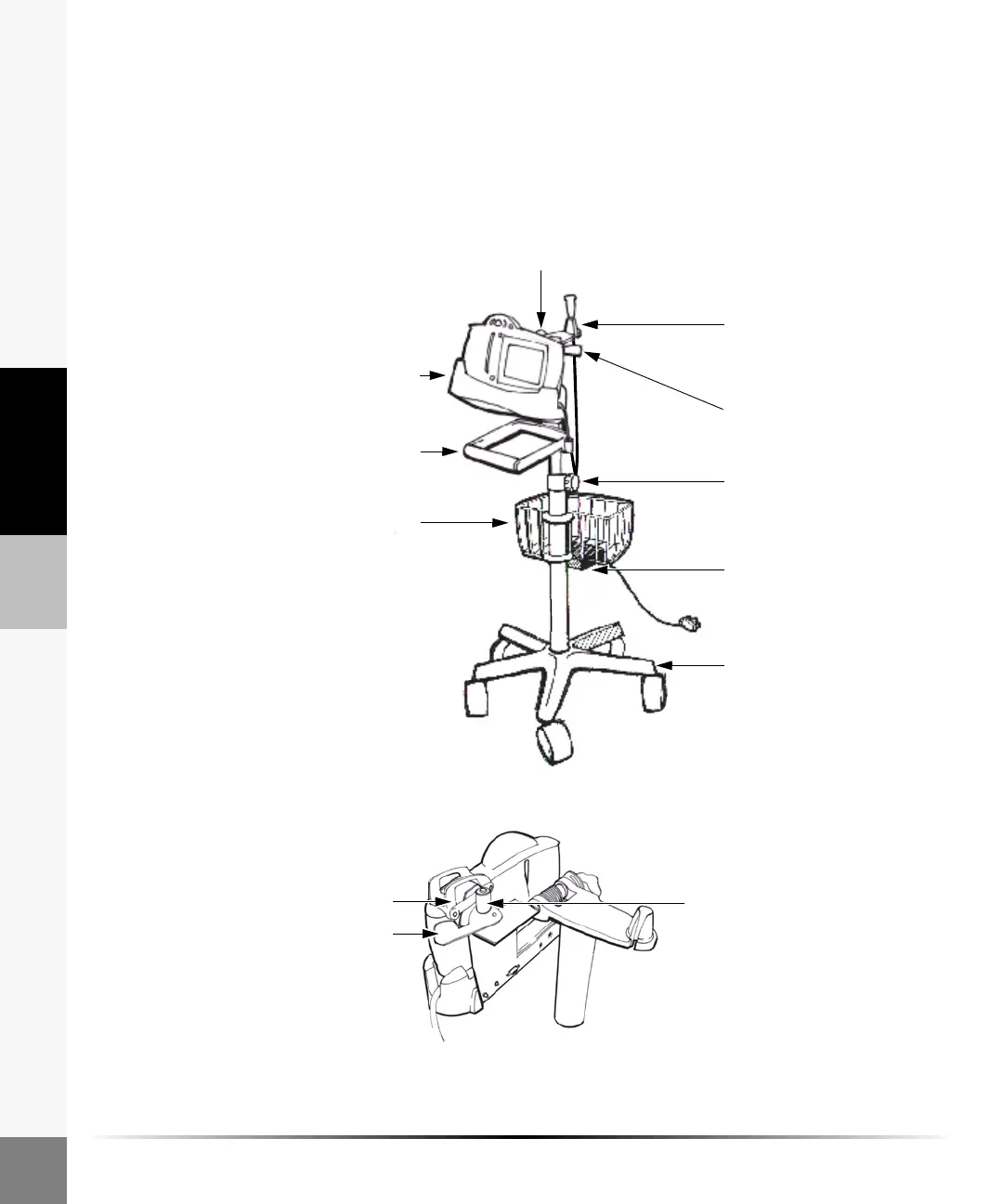

Figure 2 Stand for iLook
Figure 3 Back of Stand
Transducer storage
Height adjustment
Handle
Base with two
locking wheels
Sleeve
Power supply
Angle
adjustment
Locking lever
Basket
Guide
Locking lever
Brace
