Manual Integrator Supercal 531 06-06-2011 12
3. The Integrator Supercal 531
3.1 The modular concept
The integrator Supercal 531 consists of:
Measuring- and calibration-relevant upper part
Base part
Thanks to the modular concept of the integrator storing costs can be kept very low and replace-
ment of the meter after expiry of the validity of the calibration is simple and reasonably-priced.
In this case only the integrator upper part is replaced. The base part with all the mechanical con-
nections (mains, flow sensor, temperature sensor) does not need to be replaced.

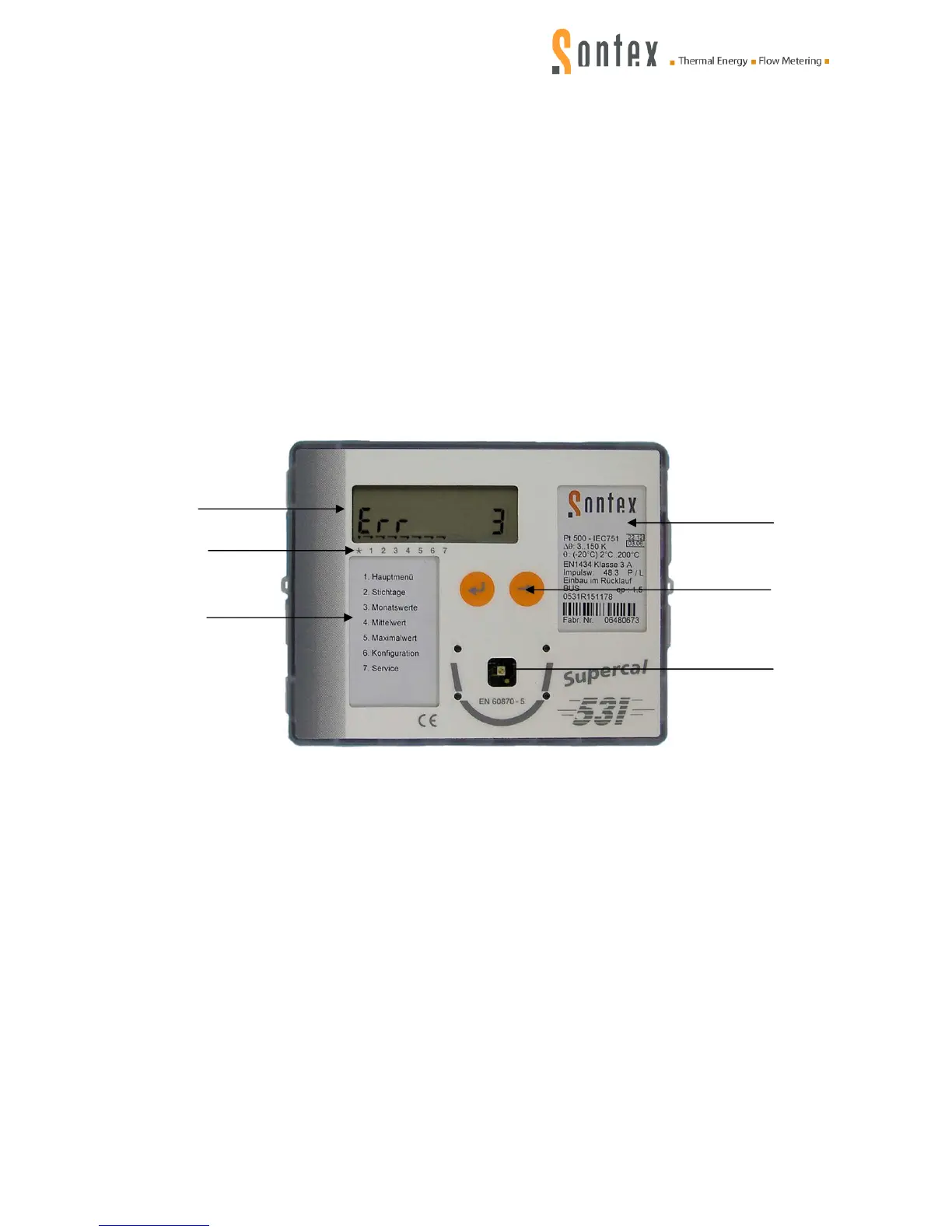

3.1.1 Integrator upper part
The following elements are incorporated in the integrator upper part:
A LCD-display
B Index for menu navigation
C Identification plate list of menu items
D Identification plate upper part of integrator with bar code
E 2 operator buttons (control and enter key)
F Optical interface
G Calibration and user seal (not visible in picture)
H EEPROM, first non-volatile memory for data storage (not visible in picture)
A
B
C
D
E
F
