Manual Integrator Supercal 531 06-06-2011 22
5. Operational Concept
When designing the Supercal 531, main importance was placed on the user-friendliness. Thus, the
integrator features an extremely large and clearly structured LCD-display. It has only two operator
buttons to display the measuring data and for the menu navigation thus adding to the user-
friendliness.

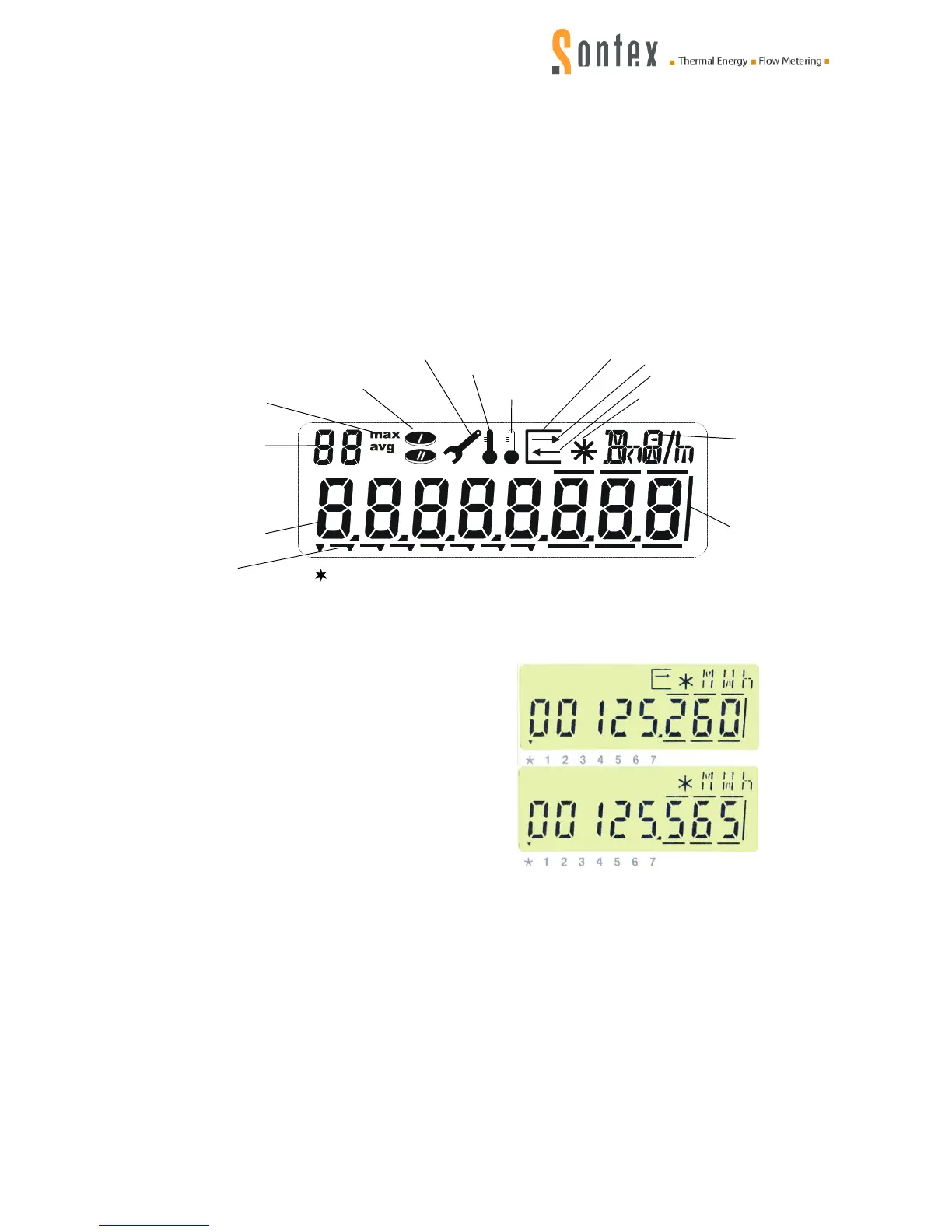

5.1 The structure of the LCD-display
1 2 3 4 5 6 7
unit
index for the
monthly,
average and maximum
value
s
average and
maximum value
tariff 1 and
tariff 2
low temperature
high temperature
index for menu
guidance
display figures
edit values
indication measurement - energy
calculation
flow indication
frame for decimal
figures
output communication
input communication
Description of further indicators on the LCD-display
Communication indicator
This indicator shows if the Supercal 531 is calculat-
ing and/or communicating internally or externally.
Flow indicator
If the flow indicator is displayed, the Supercal 531 is
measuring the volume pulse of the flow sensor.
