Manual Integrator Supercal 531 06-06-2011 33

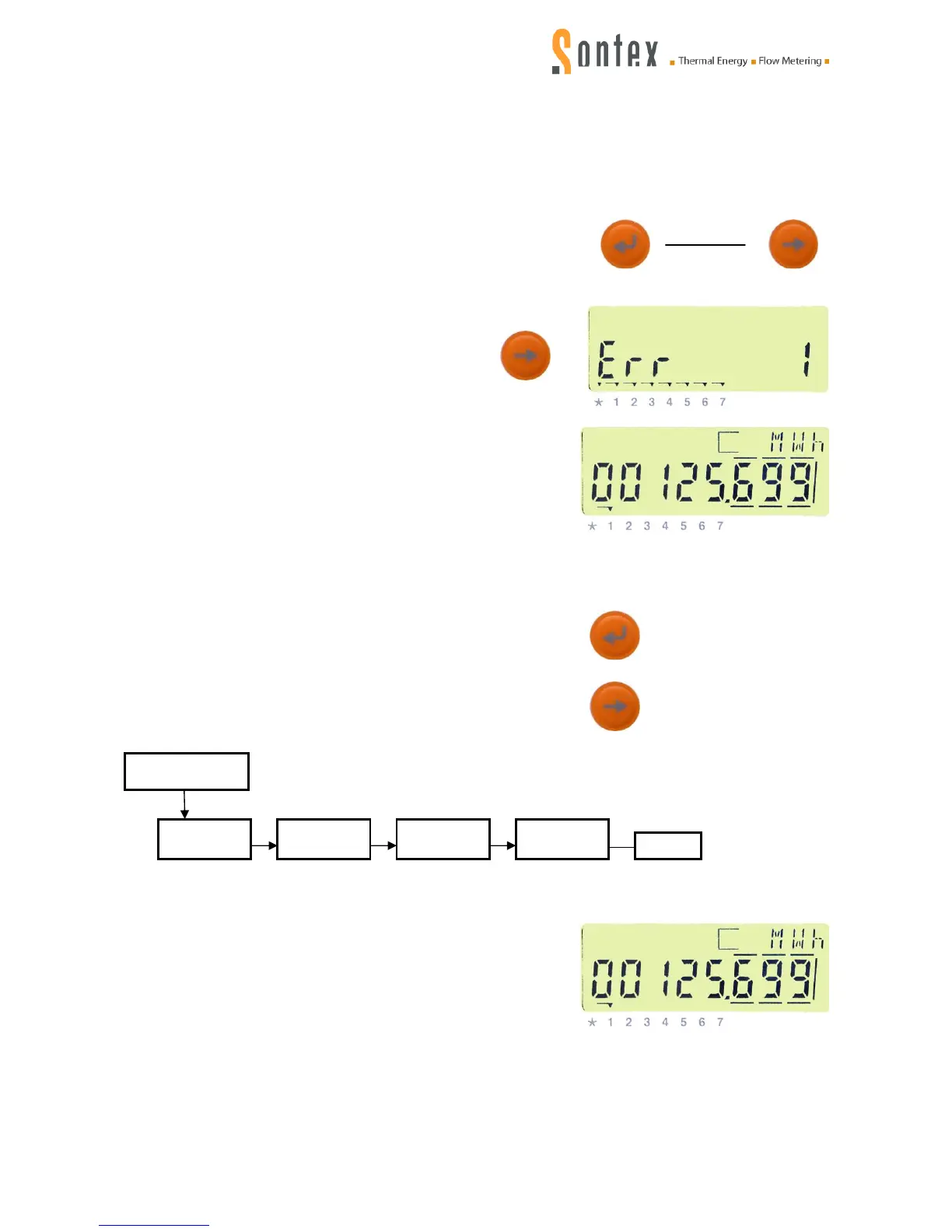

7. The Display Menus
7.1 Menu control
Press the enter key and the control key simultaneously.
The last occurred error is displayed.
Press the control key:
The first display of the main menu, the cumulated energy is
indicated.
The index for the menu navigation is above the „1“.
7.2 Main menu
Confirm menu 1 = main menu by pressing the enter key:
The index for the menu navigation flashes. Now, the display
sequence of the main menu can be accessed and display after
display can be read by repeatedly pressing the control key.
Possible energy units: kWh, MWh, MJ, GJ, BTU
Standard parameterisation ex works:kWh or MWh
Maximal displayed energy: 99'999’999 (8 digits)
The number of digits after the decimal point can be set at the
factory or defined by an authorized laboratory.
The displays of the cumulated energy for tariff 1 and tariff 2
are identical.
Main menu
Cumulated
energy
Cumulated
volume
Cumulated
value for A1
Cumulated
value for A2 etc.
