Manual Integrator Supercal 531 06-06-2011 29

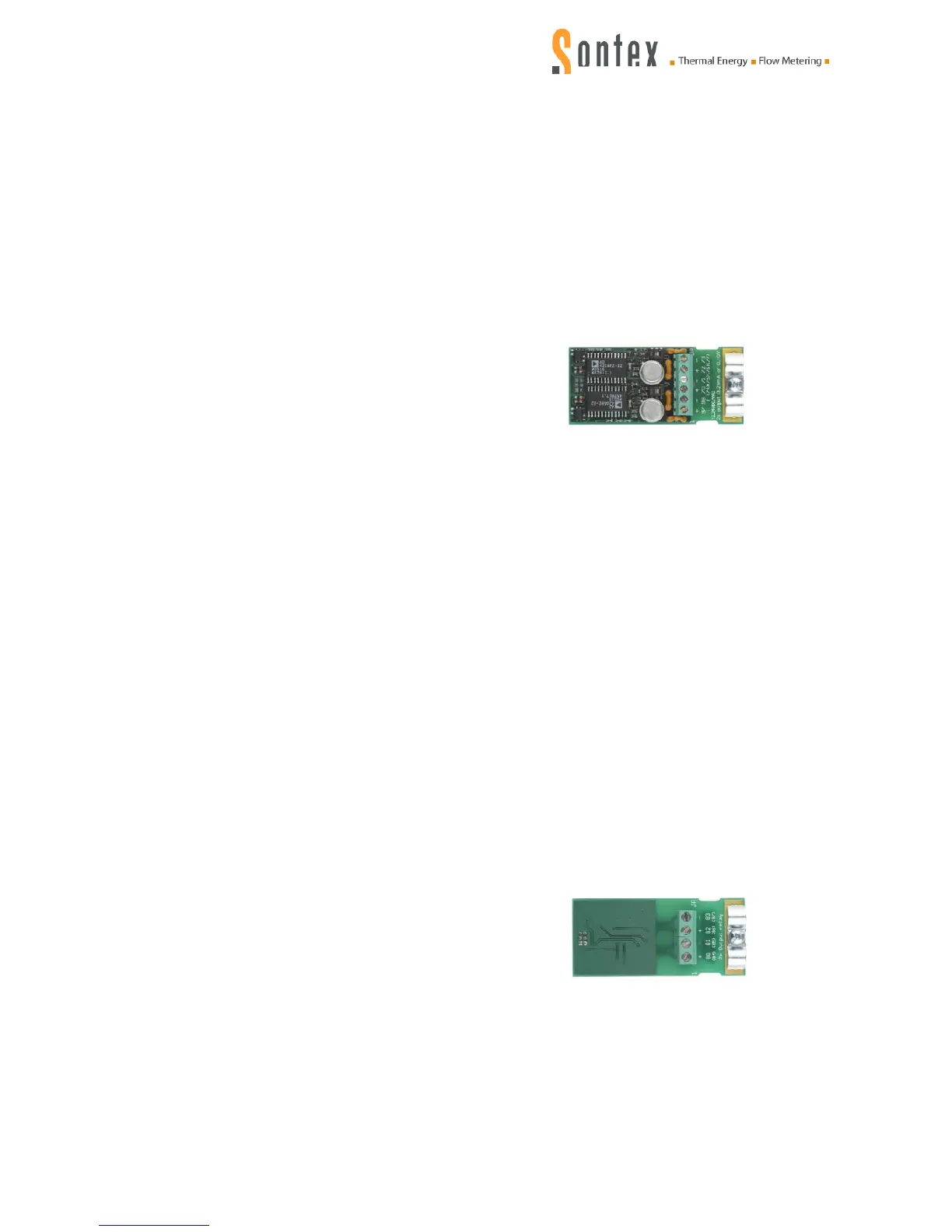

6.2.1.2 Analogue module with two outputs 0...20 mA, 4...20 mA or 0...10 VDC
Application identical to point 6.2.1.1
For each circuit, a separate flip switch allows the independent switchover of the analogue outputs
to the range 0..10 VDC.
The two red LEDs are only on if the current does not correspond to the set value of the analogue
signal, e.g. in case of open circuit. In voltage-supplied mode (0..10 VDC), the LEDs are deacti-
vated. When using the Supercal 531 with an analogue module, it must always be mains voltage
supplied.
Up to two optional analogue modules can be operated at the same time in the integrator Supercal
531. The power supply is covered over the two corresponding terminals.
Analogue module with two outputs 0..20 mA,
4..20 mA, 0..10 VDC, or 2…10 VDC
6.2.2 Relay module
The optional relay module with two outputs allows the transmission of status messages, alarms
and/or errors.
The following information is available as pulse freely selectable for data readout:
Energy
Energy tariff 1
Energy tariff 2
Volume
Volume tariff 1
Volume tariff 2
Volume additional meter A1
Volume additional meter A2
Up to two optional relay modules can be operated in the integrator Supercal 531 at the same time.
When equipped with a relay module, the Supercal 531 must always be mains voltage supplied.
