Manual Integrator Supercal 531 06-06-2011 42

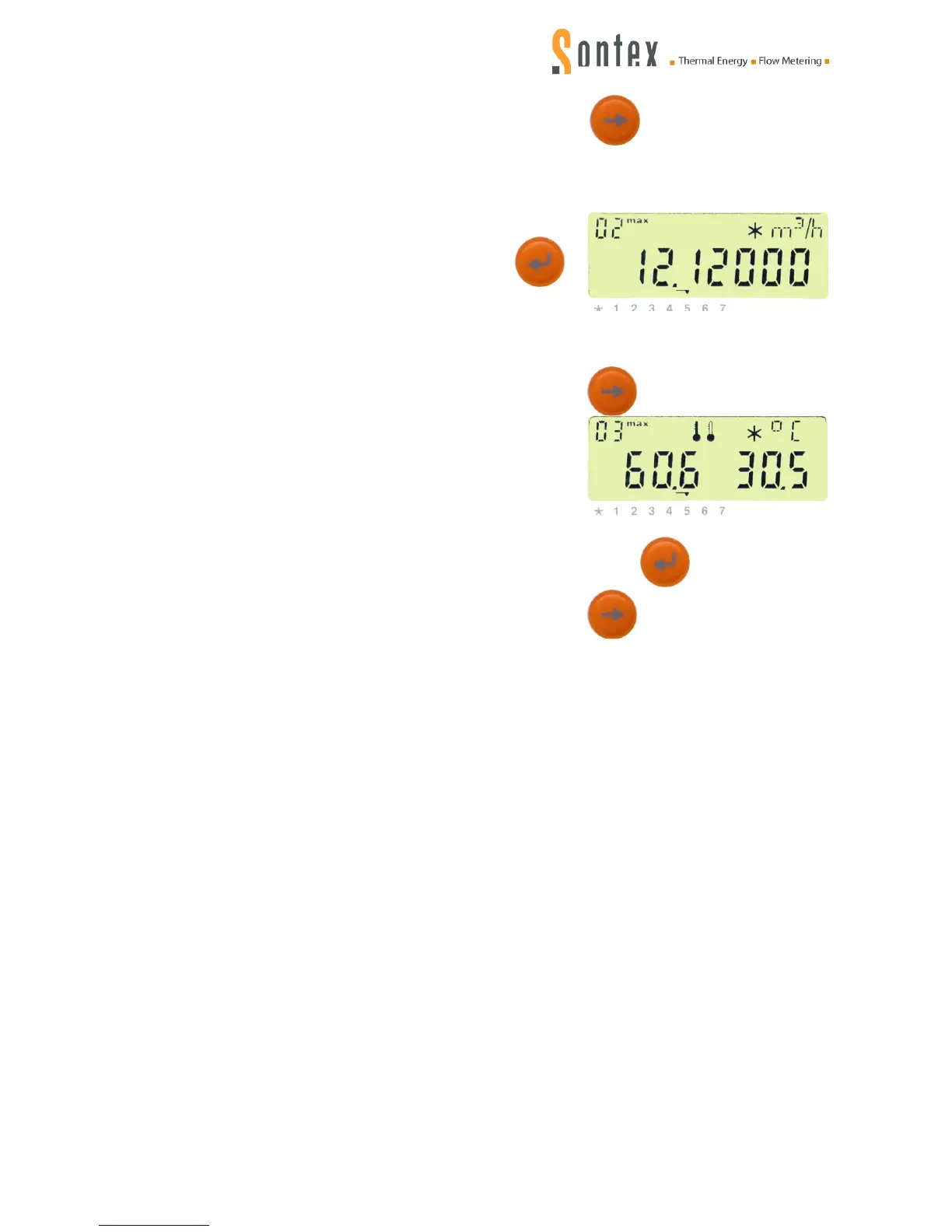

By repeatedly pressing the
all further recorded
data of maximum value 01 can be called: flow, supply and re-
turn temperature, temperature difference, pulse input A1 and
pulse input A2.
To select all further maximum values 02 to 32:
Press the enter key
The index „01“ for maximum value „01 max“ flashes. Now you can proceed in two different ways:
Press the control key repeatedly.
Thus, the indices for all further maximum values (02 to
32, flashing) are called. The previously selected value
with the current power, flow etc. is displayed as well.
Alternatively, the display sequence for the requested
maximum value can be selected by pressing the enter
key.
The maximum values can be called by repeatedly
pressing the control key.
