Sony CDP-M400CS - Cover (PT), Table (400) Assembly; LED Board, Guide (Door)

11
CDP-M400CS

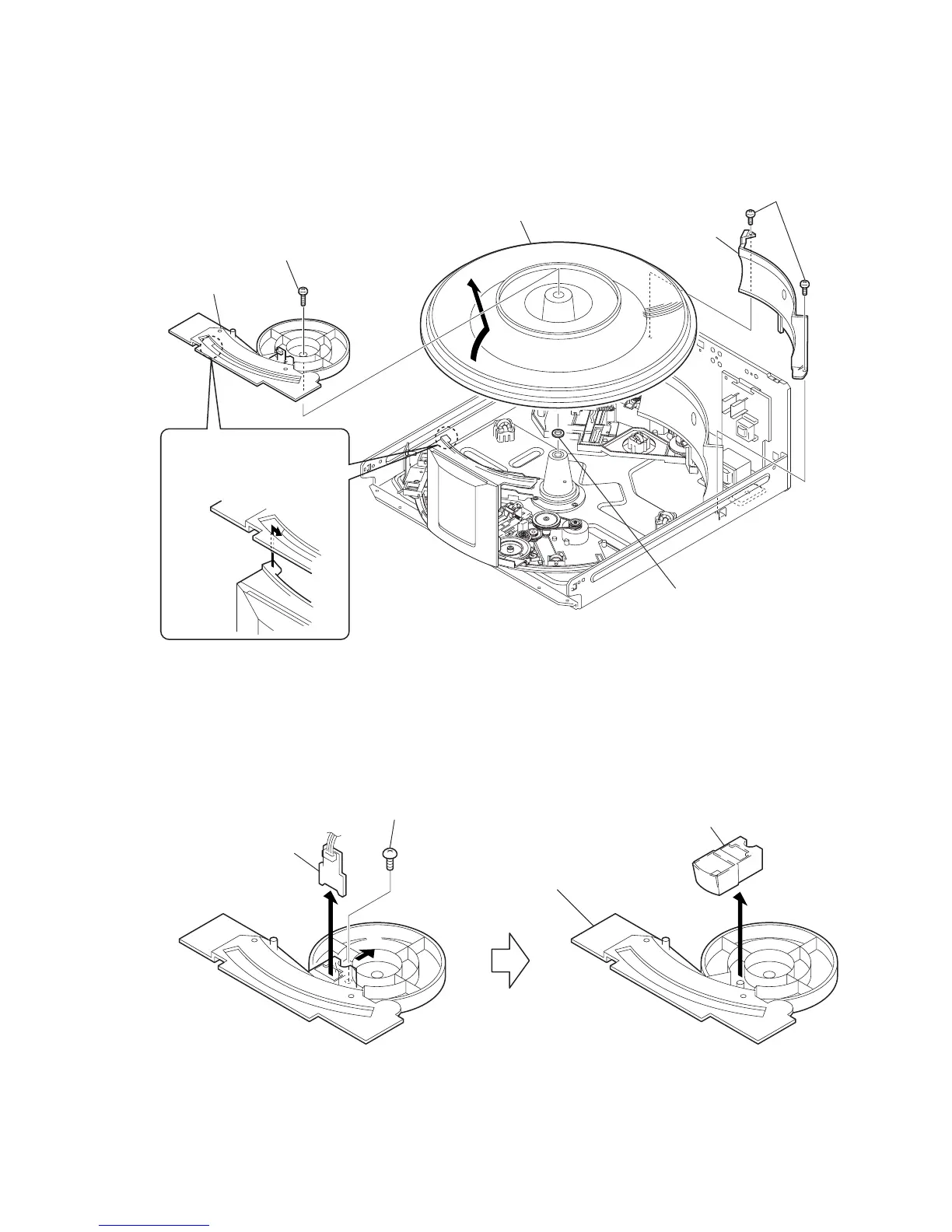

3-8. COVER (PT), TABLE (400) ASSEMBLY
3-9. LED BOARD, GUIDE (DOOR)
3 screw (BVTP 3 × 16)
4 guide (door)
5 table (400) assembly
6 washer
Note during re-assembling
When re-assembling, align
the positions as shown.
1 two screws
(BVTP 3
× 8
)
2 cover (PT)
1 screw (BVTP 3 × 8)
6 window (internal illumination)
2 LED board
3
5
4
7 guide (door)
