Sony CDP-M400CS - Mechanism Section 4 (CDM62-K1 BD46 A)

58
CDP-M400CS
355
356
#3
#7
#3
357
354
358
356
352
362
363
351
352
355
359
357
360
353
361
#1
M601
M602
not supplied

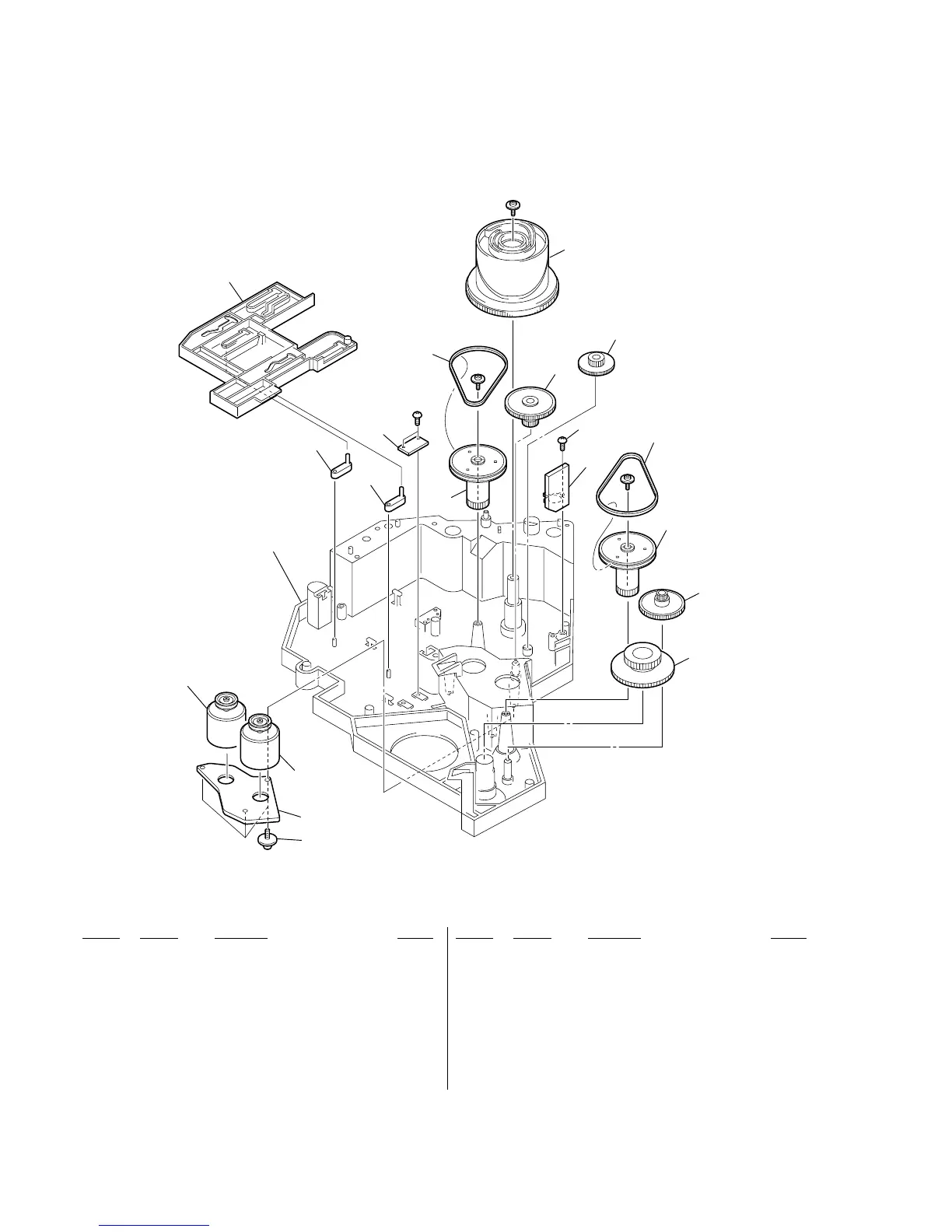

7-8. MECHANISM SECTION 4 (CDM62-K1BD46A)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
351 4-225-865-01 SLIDER (400)
352 X-4952-503-1 LEVER (FULCRUM 400) ASSY
353 4-933-134-11 SCREW (+PTPWH M2.6X8)
354 A-4672-676-B CAM ASSY
355 4-225-876-01 BELT (400)
356 4-225-870-01 PULLEY (400)
357 4-216-057-01 GEAR (CENTER 2)
358 4-216-058-01 GEAR (CENTER)
359 3-087-053-01 +BVTP2.6 (3CR)
360 4-225-869-01 GEAR (TABLE 400)
361 1-683-727-13 L.T.MOTOR BOARD
362 1-683-725-13 LOCK SW BOARD
363 1-683-726-13 LOADING SW BOARD
M601 A-4672-895-A MOTOR (400) ASSY (TABLE)
M602 A-4672-895-A MOTOR (400) ASSY (LOADING)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-648-79 SCREW, TAPPING +BV 3X12, TYPE 2, IT-3
#7 7-682-948-01 SCREW +PSW 3X8
