Sony CDP-M400CS - CDM Assembly; Motor Assembly (Table) (M601); Motor Assembly (Loading) (M602)

18
CDP-M400CS

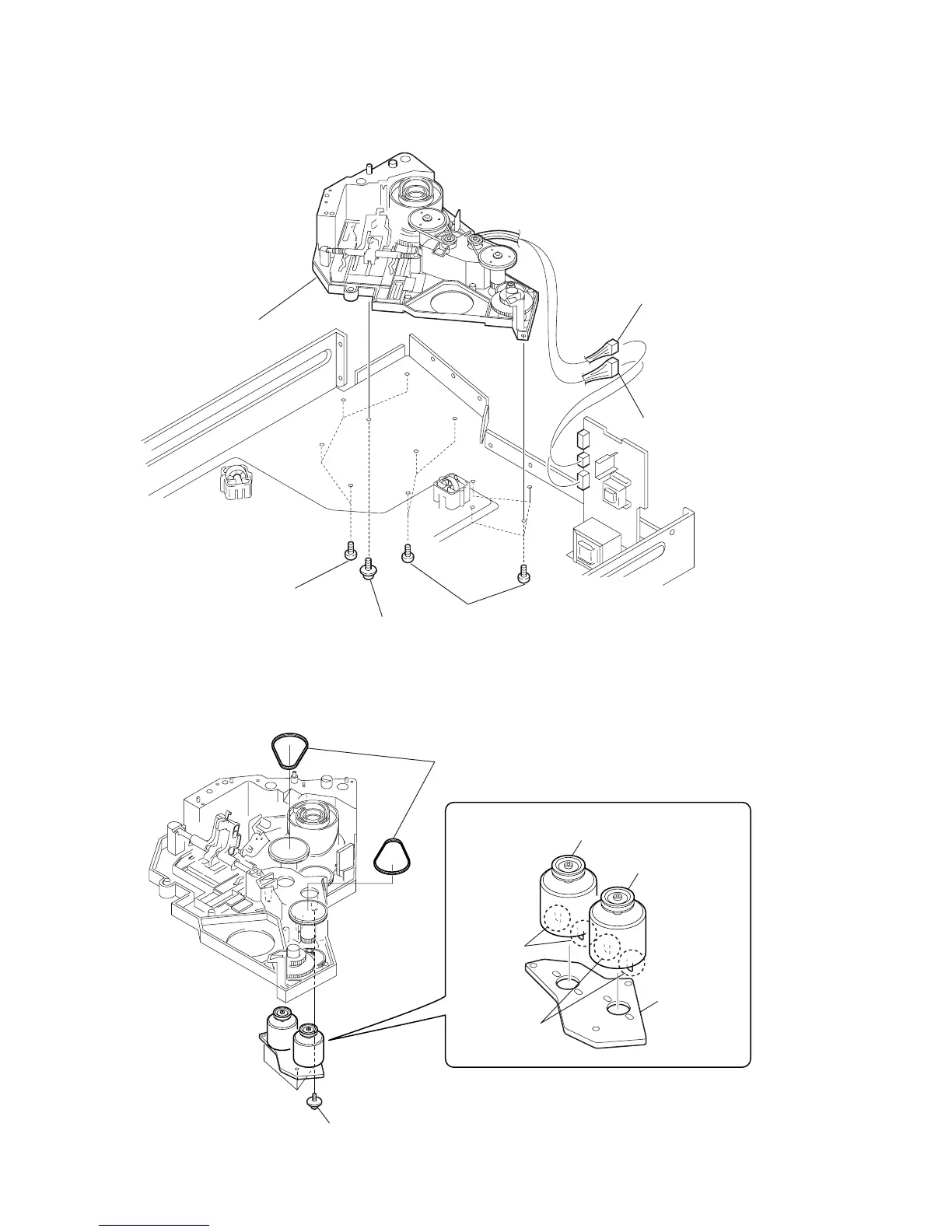

3-19. CDM ASSEMBLY
3-20. MOTOR ASSEMBLY (TABLE) (M601), MOTOR ASSEMBLY (LOADING) (M602)
1 connector (CN603)
4 four screws
(BVTP 3
× 8)
3 screw (PSW 3 × 8)
5 seven screws
(BVTP 3
× 8)
6 CDM assembly
2 connector (CN601)
4 motor assembly (loading)
(M602)
1 two belts
3 Remove two
solderings.
5 Remove two
solderings.
2 three screws
(PTPWH 2.6
× 8)
6 motor assembly (table)
(M601)
7 L.T. MOTOR
board
