Sony CDP-M400CS - Printed Wiring Board - Powersection

4242
CDP-M400CS
CDP-M400CS

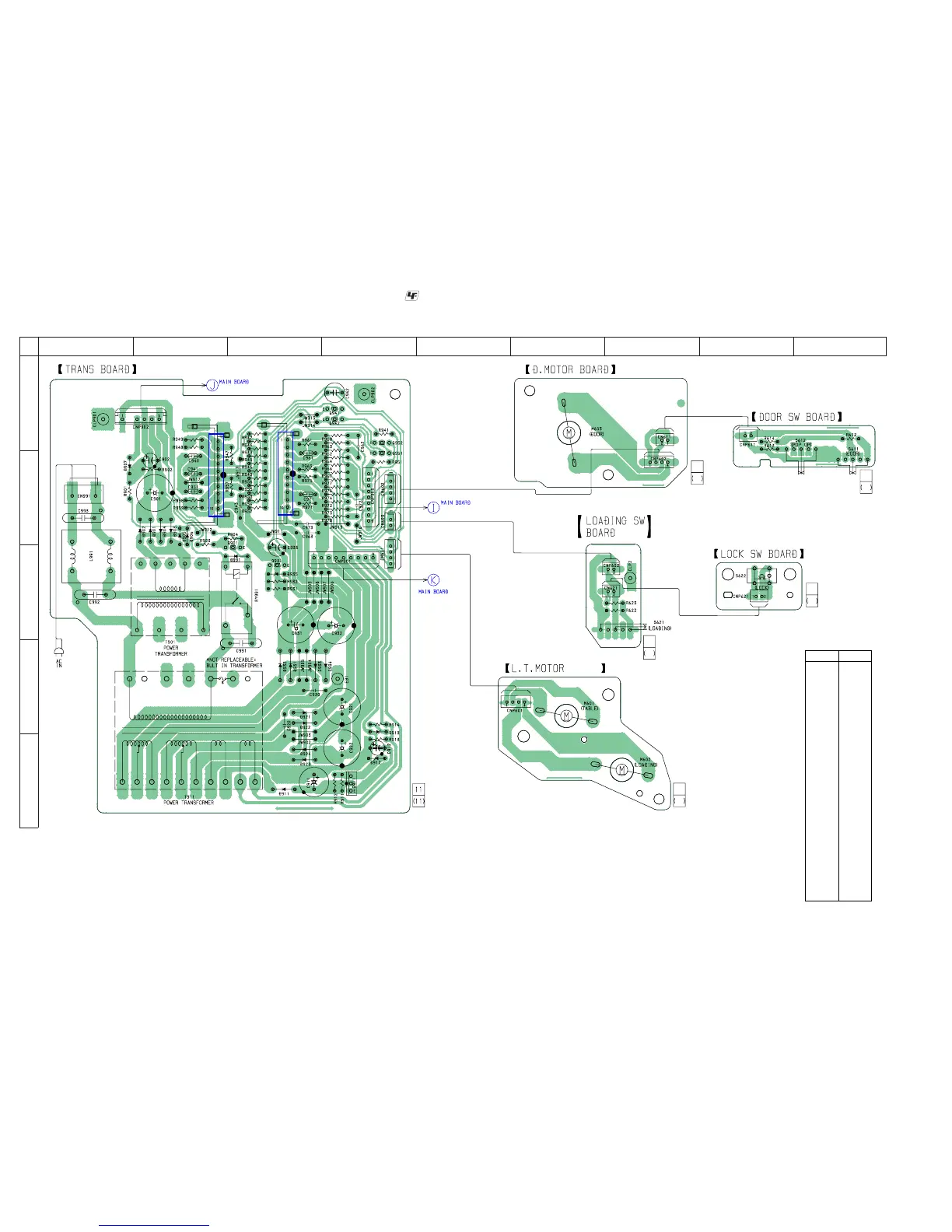

6-13. PRINTED WIRING BOARD — POWER SECTION —
• See page 29 for Circuit Boards Location. :Uses unleaded solder.
(Page 34)
(Page 34)
(Page 34)
CN902
1-676-829-
1-683-727-
CN901
CN903
1-683-729-
1-683-726-
1-683-725-
1-683-728-
BOARD
13
13
13
13
13
13
13
13
13
13
IC941
IC961
12
A
B
C
D
E
3456789
• Semiconductor
Location
Ref. No. Location
D901 B-2
D902 B-2
D903 B-2
D904 B-2
D905 B-2
D906 B-2
D907 B-1
D911 E-3
D912 E-4
D913 D-4
D921 D-3
D922 D-3
D923 E-3
D924 E-3
D931 D-3
D932 D-3
D933 D-3
D934 D-4
D935 C-3
D991 C-3
IC941 B-2
IC961 B-3
Q901 C-3
Q911 E-4
Q931 C-3
Q941 A-4
Q942 A-4
Q951 B-4
Q952 A-4
