CDP-M400CS
Note: Follow the disassembly procedure in the numerical order given.

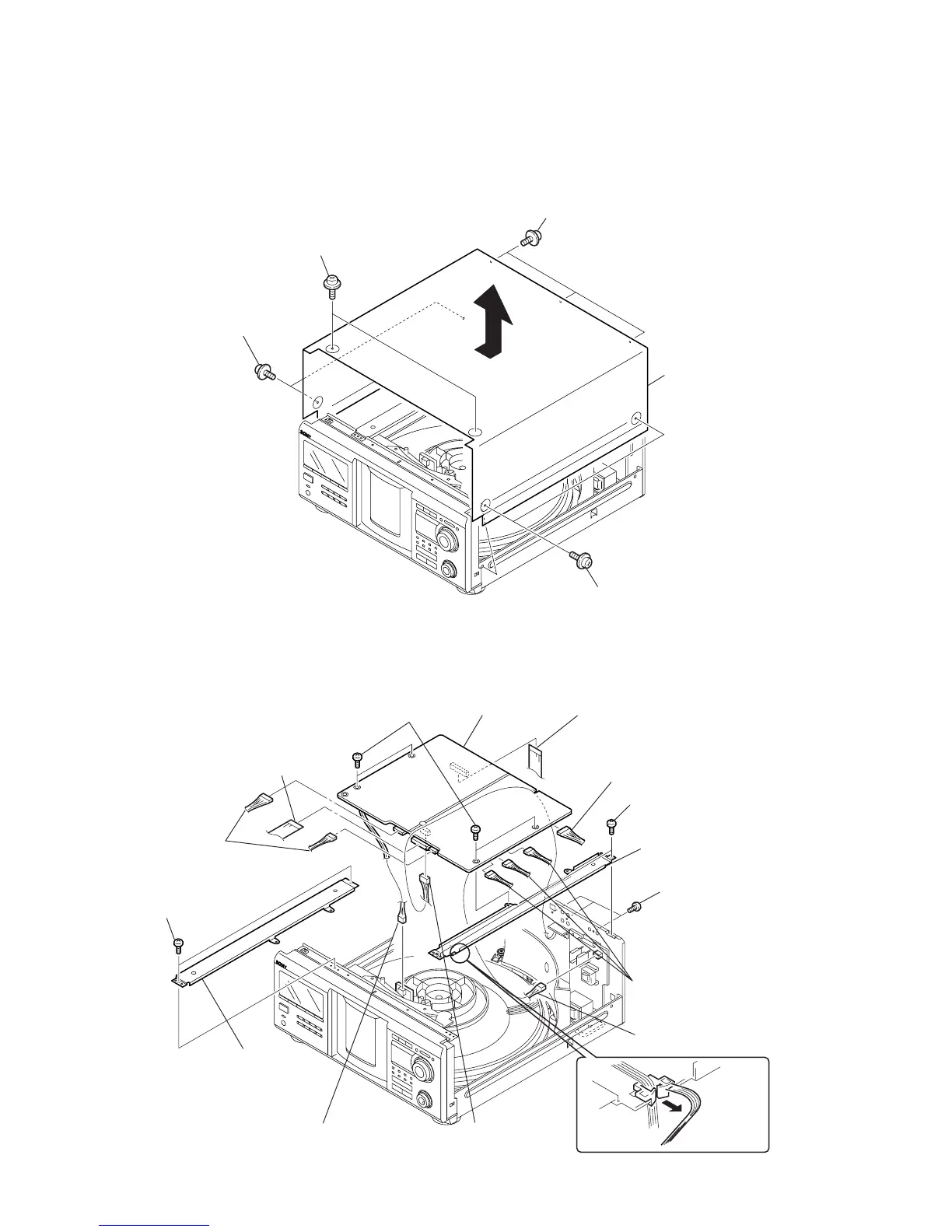

3-2. CASE
3-3. MAIN BOARD
2
two screws
(case 3 screw)
3
two screws
(case 3 screw)
1
three screws
(case 3 screw)
4
two screws
(case 3 screw)
5
cas
e
qd
two screws (BVTP 3
×
8)
qh
bracket (R)
2
connector (CN901)
1
three connectors
(CN503, CN801, CN903
)
3
connector (CNP902)
6
connector (CNP504)
7
connector
(CNP1001)
5
flat type wire
(CN502)(17 core)
4
two connectors
(CN505, CN506)
8
three screws
(BVTP 3
×
8)
9
four screws
(BVTP 3
×
8)
qa
MAIN board
0
flat type wire
(CN501)(31 core)
qs
two screws
(BVTP 3
×
8)
qg
bracket (L)
qf
