Sony CDP-M400CS - Chassis Section 1

52
CDP-M400CS
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 4-215-968-01 WINDOW (INTERNAL ILLUMINATION)
52 4-226-833-06 GUIDE (DOOR)
53 3-703-136-31 SCREW (M3X14)
54 X-4952-500-2 TABLE (400) ASSY
55 3-701-447-21 WASHER, 10
56 4-226-834-01 COVER (TABLE)
57 3-356-601-13 SCREW, STEP
58 X-2024-238-1 DOOR ASSY
* 59 3-703-244-00 BUSHING (2104), CORD
60 1-469-854-11 CORE, FERRITE

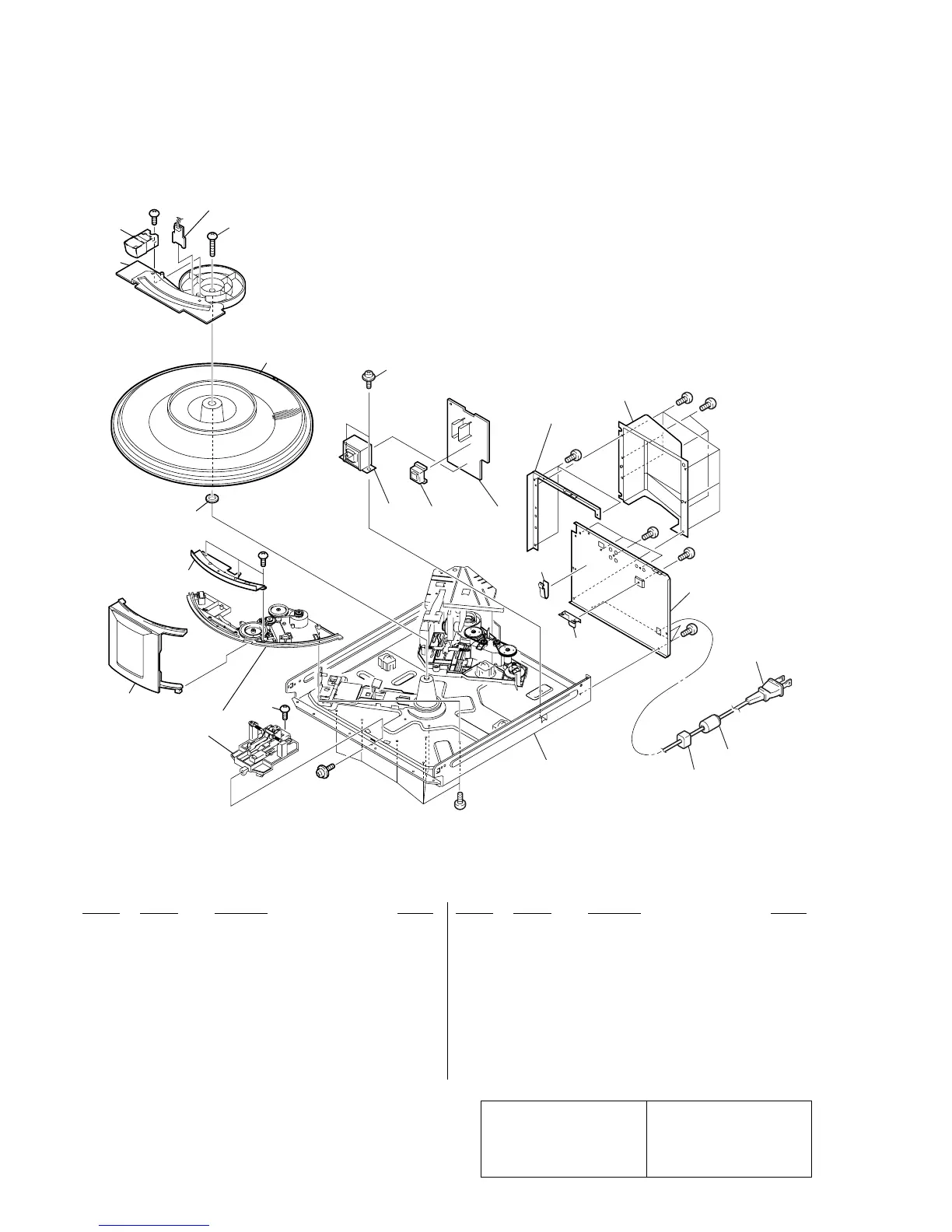

7-2. CHASSIS SECTION 1
61 3-703-249-02 SCREW, S TIGHT, +PTTWH 3X6
62 A-4727-717-A TRANS BOARD, COMPLETE
63 4-226-876-21 COVER (CDM)
64 1-683-730-13 LED BOARD
0CNP901 1-783-820-21 CORD, POWER
0T901 1-437-709-11 TRANSFORMER, POWER
0T911 1-435-327-11 TRANSFORMER, POWER
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#4 7-685-903-11 SCREW +PTPWH 3X6 (TYPE2)
59
60
63
CNP901
#1
#1
#1
#1
#1
#1
not supplied
not supplied
not supplied
CHASSIS SECTION 2
not supplied
61
62
T911
T901
MECHANISM SECTION 1
(CDM62-K1BD46A)
54
#1
56
55
#1
52
53
64
51
#4
57
58
#1
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
