Sony CDP-M400CS - Case Section; 7 Exploded Views

51
CDP-M400CS
5 4-226-855-52 CASE
6 4-226-841-02 COVER (PT)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
SECTION 7
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
•Abbreviation
CND : Canadian model
Ref. No. Part No. Description Remark
1 4-985-553-11 CUSHION
2 A-1082-286-A MAIN BOARD, COMPLETE
3 3-383-699-01 CLAMP (EDGE)
4 3-363-099-11 SCREW (CASE 3 TP2)

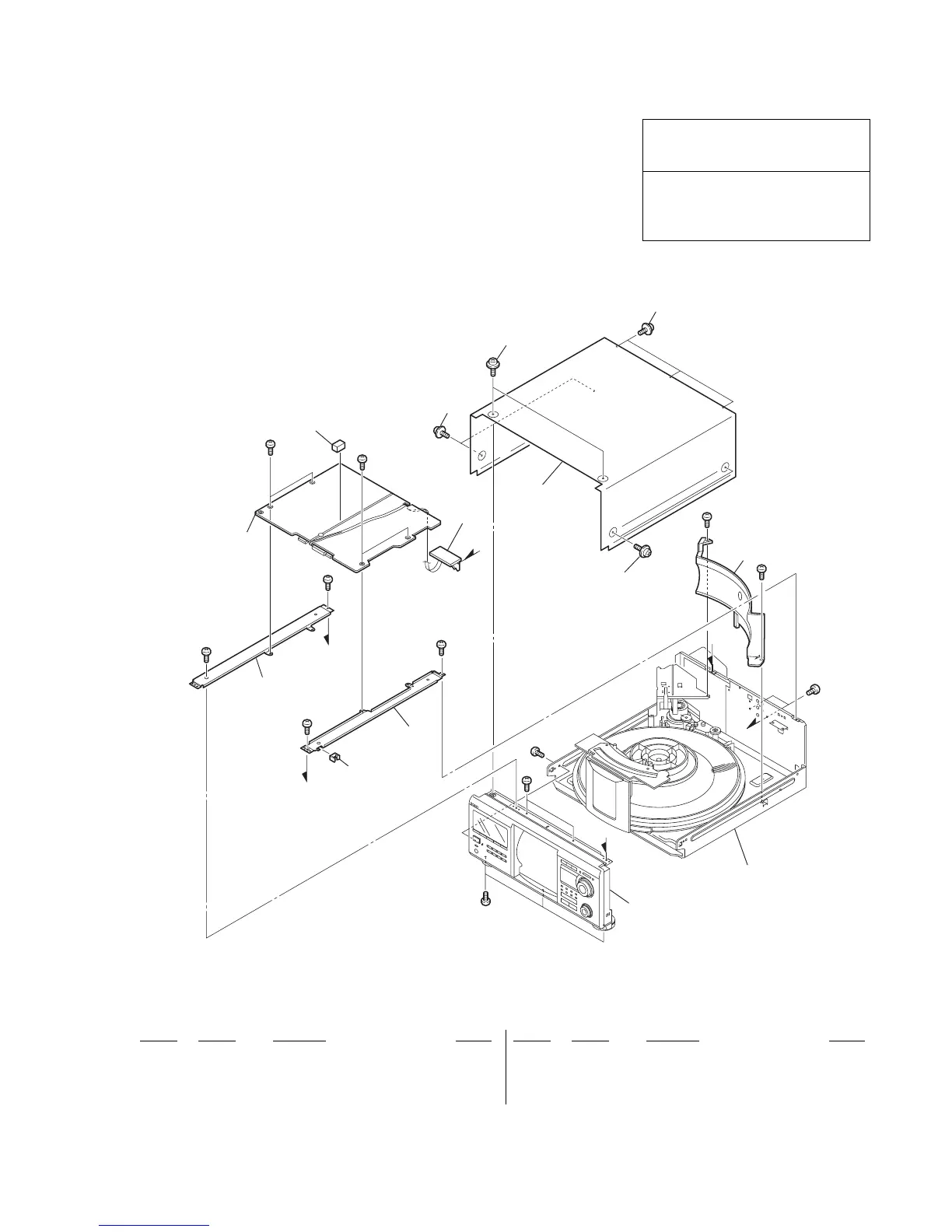

7-1. CASE SECTION
Ref. No. Part No. Description Remark
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
1
2
4
4
4
5
4
FRONT PANEL SECTION
CHASSIS SECTION 1
6
not supplied
not supplied
3
a
a
b
b
c
c
not
supplied
