CDP-M400CS

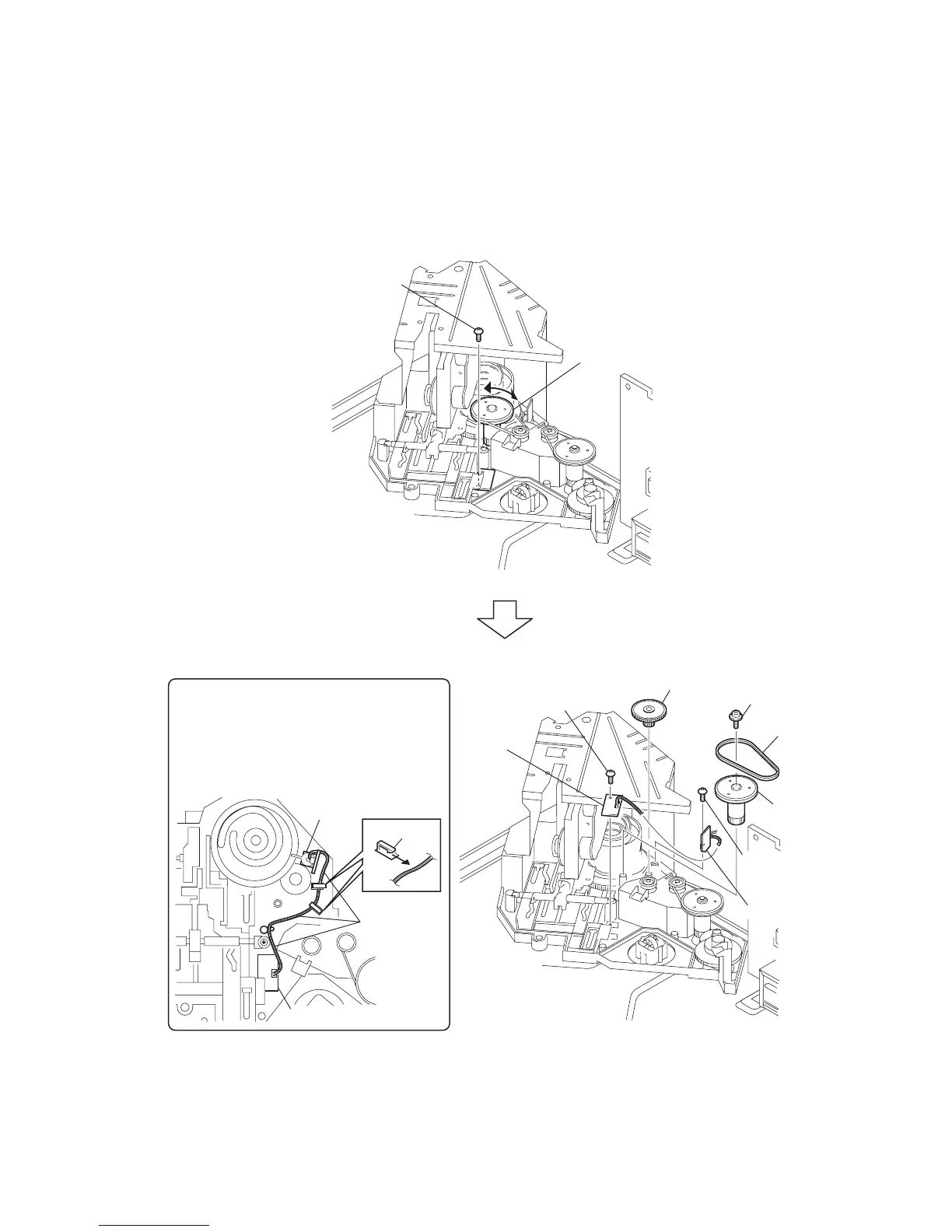

3-18. LOADING SW BOARD, LOCK SW BOARD
A
A
B
B
claws
1 Rotate the pulley (400) in the
direction of the arrow fully.
3 Rotate the pulley (400) in the
direction of the arrow fully.
2 screw
(BVTP3 × 8)
5 tapping screw
4 belt
8 screw
(BVTP 3 × 8)
0 screw
(BVTP 2.6 × 8)
qa LOADING SW
board
9 LOCK SW
board
7 gear (center)
6 pulley (400)
Note during re-assembling
When re-assembling the
LOADING SW board and
LOCK SW boards,
align the leads position as shown.
LOADING SW board
LOCK SW board
Leads
position
