CDP-M400CS

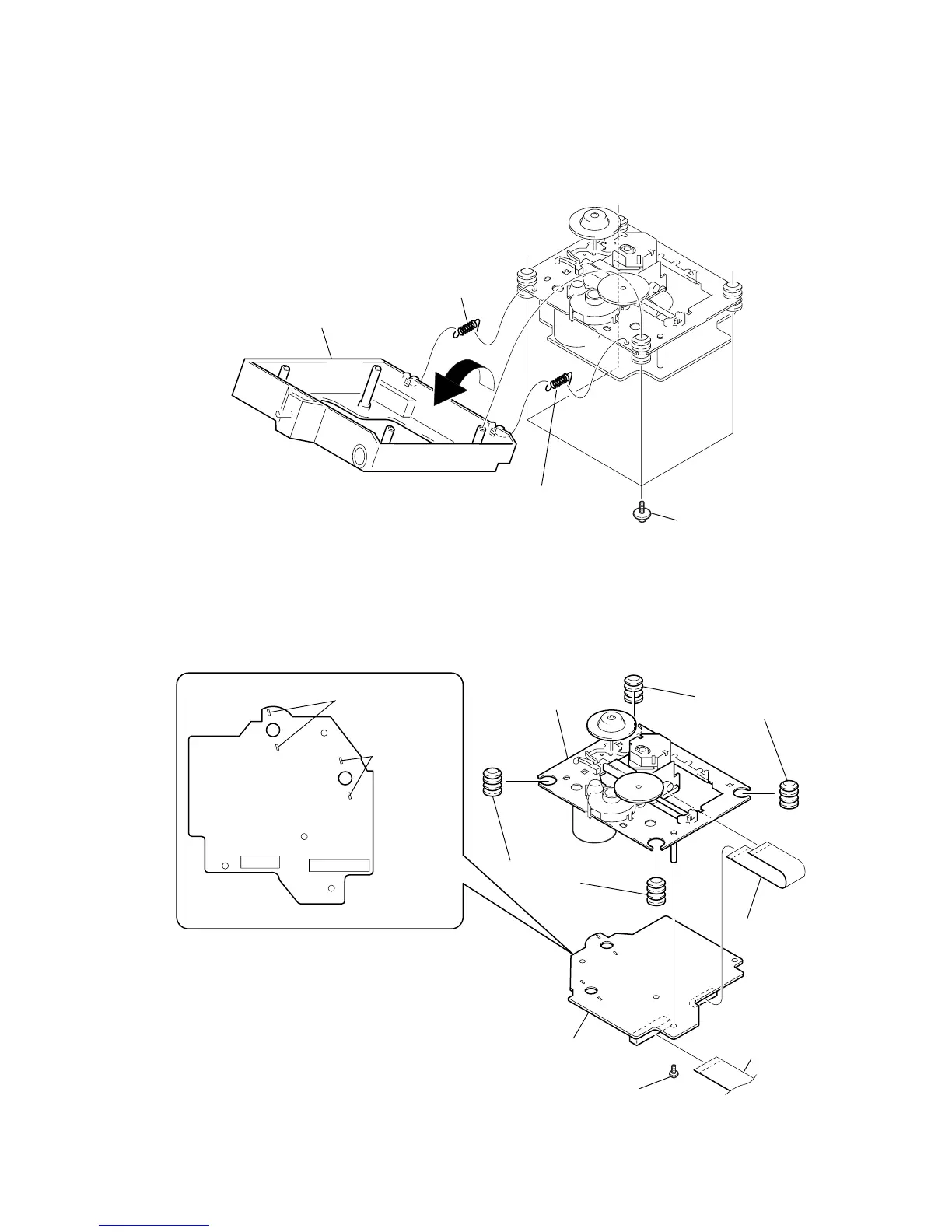

3-21. BU HOLDER
3-22. BD BOARD, OPTICAL PICK-UP (KSM-213BFN)
1 four screws
(PTP WH 2.6
× 8)
2
5
BU holder assy
3 tension spring (F-1)
4 tension spring (F-2)
2 screw (+B 2 × 5)
8 two vibration
proof rubbers
7 two vibration
proof rubbers
1 wire (flat type)
(31 core)
(CN101)
5 wire (flat type)
(16 core) (CN102)
6 BD board
9 optical pick-up
(KSM-213BFN)
4 Remove two
solderings.
(sled)
3 Remove two
solderings.
(spindle)
