Sony CDP-M400CS - Mechanism Section 1 (CDM62-K1 BD46 A)

55
CDP-M400CS
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
201 4-226-827-02 BASE (DOOR DRIVING)
202 4-216-093-01 ROLLER
203 4-216-100-02 HOLDER (POP-UP)
204 4-933-134-11 SCREW (+PTPWH M2.6X8)
205 4-226-832-01 LEVER (PU JOINT)
206 4-216-099-02 SLIDER (POP-UP)
207 4-216-103-01 SPRING (POP-UP), COMPRESSION
208 4-998-716-01 SCREW, BU FITTING
209 4-216-102-01 SHAFT (POP-UP FULCRUM)
210 4-228-352-01 LEVER (POP-UP 400)
211 4-216-104-01 SPRING (POP-UP), TENSION
212 4-219-326-01 BELT (DIA. 42X1.2)
213 3-701-441-21 WASHER
214 4-226-828-02 GEAR (CAM)
215 4-226-829-01 GEAR (PULLEY)
216 4-226-831-01 GEAR (B)
217 4-226-830-01 GEAR (A)
218 3-087-053-01 +BVTP2.6 (3CR)
219 1-683-728-13 DOOR SW BOARD
220 1-683-729-13 D.MOTOR BOARD
M603 1-541-632-12 MOTOR, DC (DOOR)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#6 7-624-106-04 STOP RING 3.0, TYPE -E
#6
#6
208
209
207
213
211
213
207
210
206
M603
#1
202
203
205
201
204
214
204
204
212
204
216
217
204
218
219
202
220
215

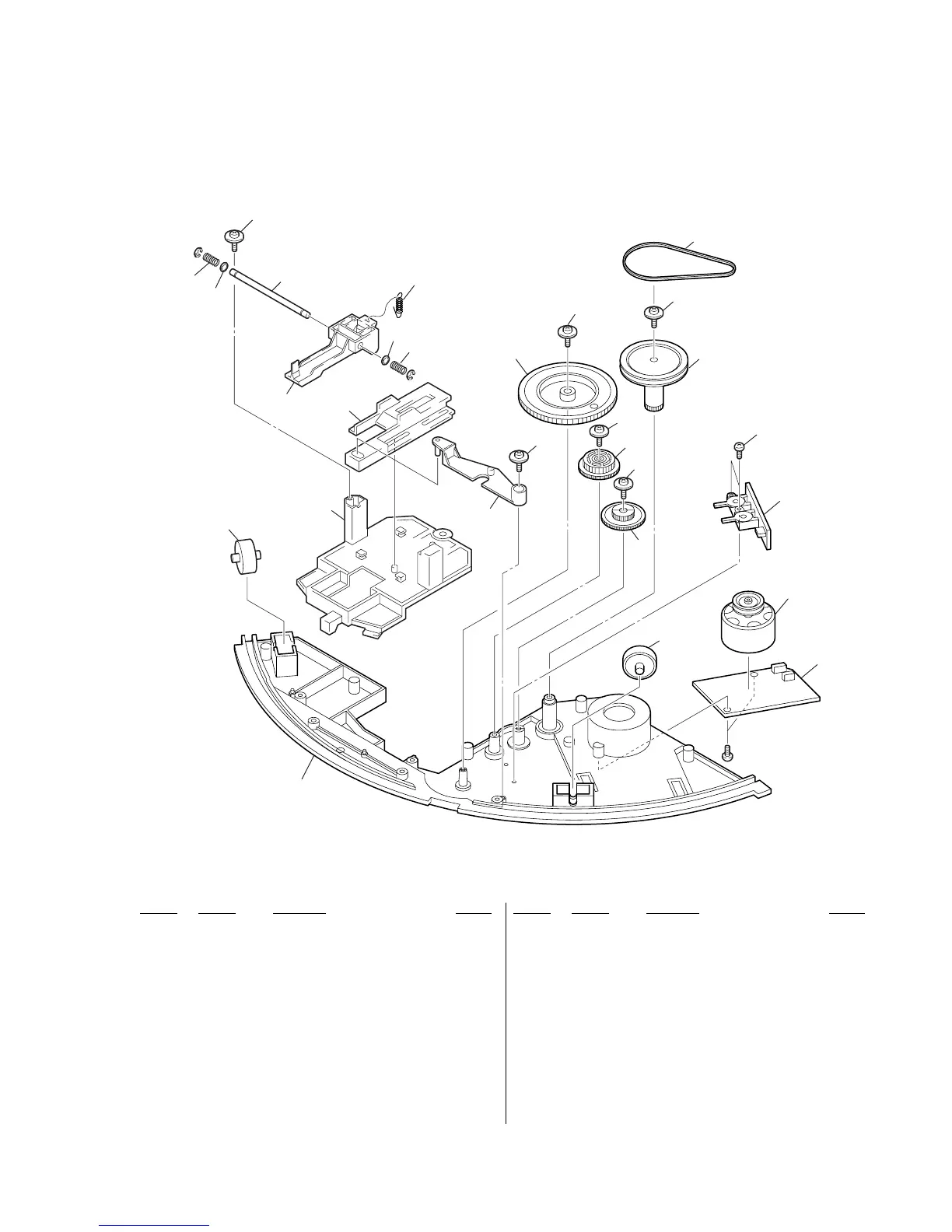

7-5. MECHANISM SECTION 1 (CDM62-K1BD46A)
