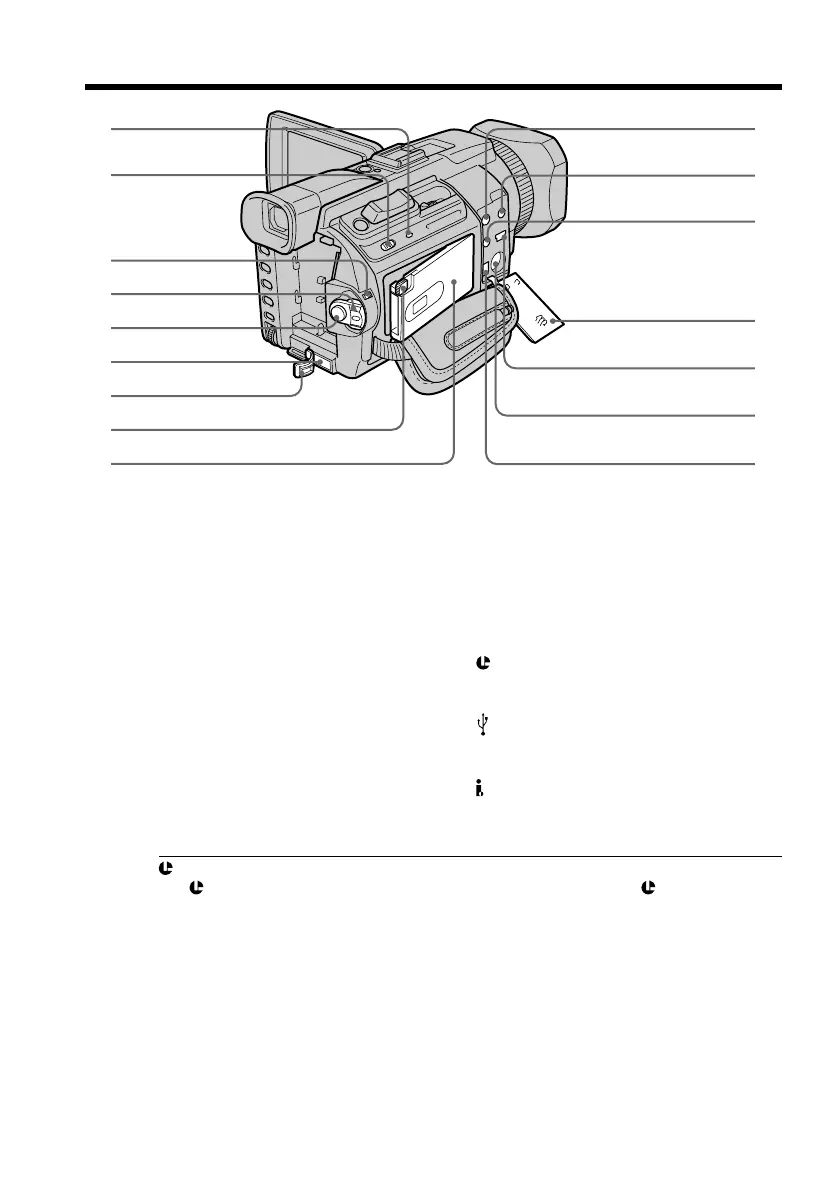

Identifying parts and controls
ea Access lamp
es MEMORY OPEN button (p. 128)
ed LOCK switch (p. 26)
ef POWER switch
eg START/STOP button (p. 26)
eh DC IN jack (p. 19)
ej DC IN jack cover
ek MEMORY EJECT button (p. 128)
el “Memory Stick” slot (p. 128)
r; AUDIO/VIDEO ID-2 jack (yellow) (p. 45,
95, 146, 158, 204)
ra i (headphones) jack (green)
When you use headphones, the speaker
on your camcorder is silent.
rs
(LANC) jack (blue)
rd Jack cover (p. 45)
rf
(USB) jack (p. 183)
rg S VIDEO ID-2 jack (p. 45, 95, 146, 158)
rh
DV Interface (p. 97, 111, 147, 159, 204)
LANC
The LANC stands for Local Application Control Bus System. The LANC control
jack is used for controlling the tape transport of video equipment and peripherals
connected to it. This jack has the same function as the jack indicated as CONTROL L or
REMOTE.
