Sony DHC-MD717 - Using Optional Equipment; Connecting optional antennas

79
Insulated wire
(not supplied)
Using Optional Equipment

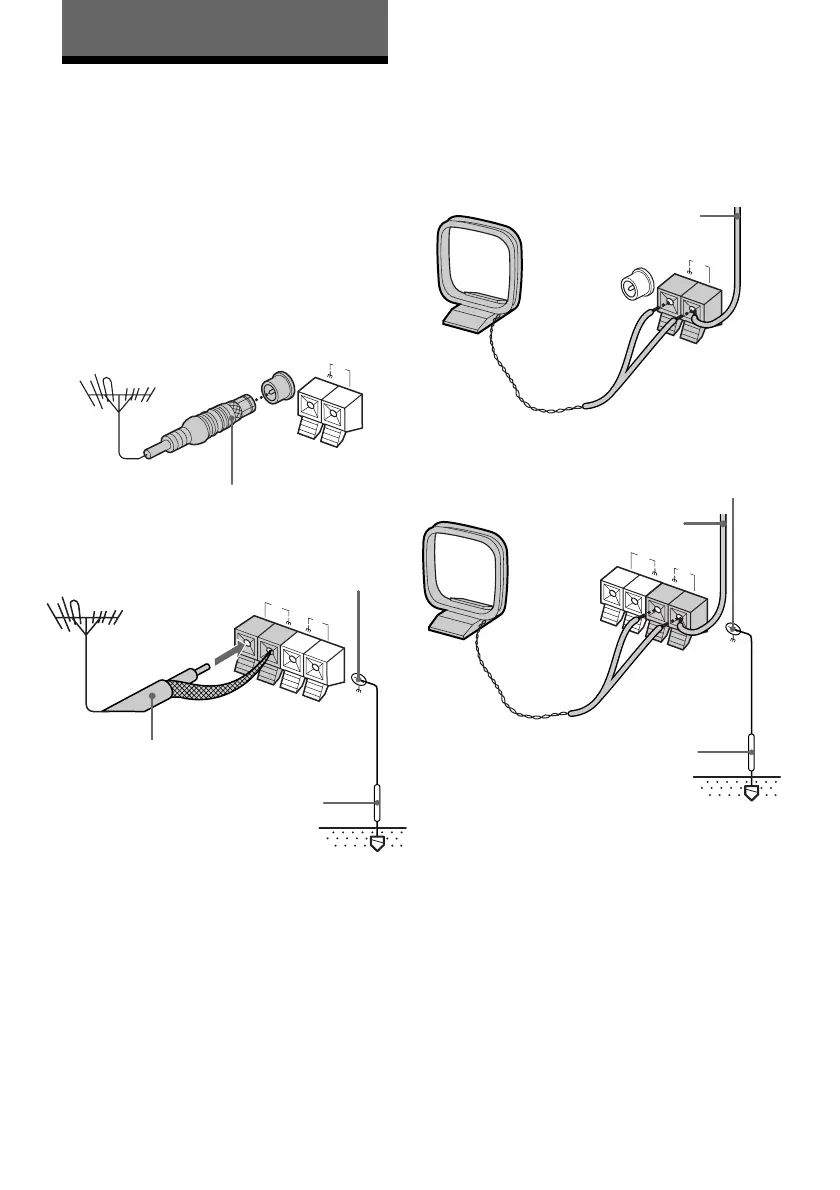

Connecting optional
antennas
AM antenna
Connect a 6- to 15-meter insulated wire to the
AM antenna terminal. Leave the supplied
AM loop antenna connected.
For DHC-EX880MD
For DHC-MD717
Important
If you connect an outdoor antenna, ground it
against lightning. (For DHC-MD717, ground
from SIGNAL GND y terminal with the
screw clamp.) To prevent a gas explosion, do
not connect the ground wire to a gas pipe.
75-ohm coaxial cable
(not supplied)
IEC standard socket
connector (not supplied)
Ground wire
(not supplied)
AM
FM
75Ω
SIGNAL GND
AM
FM
75Ω
SIGNAL GND
Connect optional antennas to improve the
reception.
FM antenna
Connect the optional FM outdoor antenna.
You can also use the TV antenna instead.
For DHC-EX880MD
For DHC-MD717
Insulated wire
(not supplied)
Ground wire
(not supplied)
Screw clamp
Screw clamp
COAXIAL
FM 75Ω
AM
COAXIAL
FM 75Ω
AM
