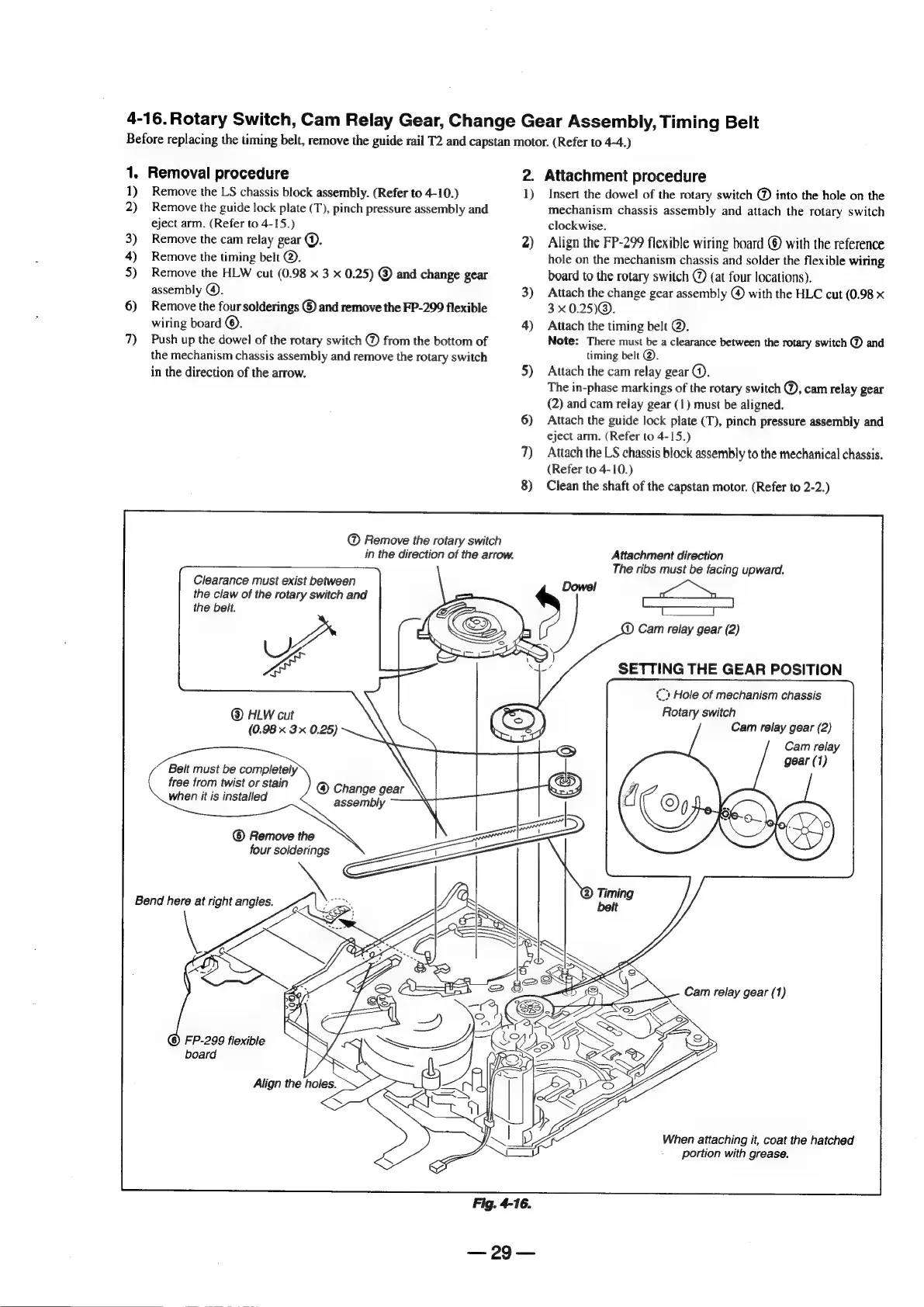

4-16.
Rotary
Switch,
Cam
Relay
Gear,
Change
Gear
Assembly,
Timing
Belt
Before
replacing
the
timing
belt,
remove
the
guide
rail
T2
and
capstan
motor.
(Refer
to
4-4.)
1,
1)
2)
3)
4)
5)
6)
1)
Removal
procedure
Remove
the
LS
chassis
block
assembly.
(Refer
to
4-10.)
Remove
the
guide
lock
plate
(T),
pinch
pressure
assembly
and
eject
arm.
(Refer
to
4-15.)
Remove
the
cam
relay
gear
@.
Remove
the
timing
belt
@.
Remove
the
HLW
cut
(0.98
x
3
x
0.25)
@
and
change
gear
assembly
®.
Remove
the
four
solderings
©
and
remove
the
FP-299
flexible
wiring
board
©.
Push
up
the
dowel
of
the
rotary
switch
@
from
the
bottom
of
the
mechanism
chassis
assembly
and
remove
the
rotary
switch
in
the
direction
of
the
arrow.
@
Remove
the
rotary
switch
in
the
direction
of
the
arrow.
Clearance
must
exist
between
the
claw
of
the
rotary
switch
and
the
belt.
@
HLW
cut
(0.98
x
3x
0.25)
Belt
must
be
completely
free
from
twist
or
stain
when
it
is
installed
@
Change
gear
assembly
©
Remove
the
four
solderings
2.
1)
2)
3)
4)
5)
6)
7)
8)
Attachment
procedure
Insert
the
dowel
of
the
rotary
switch
@
into
the
hole
on
the
mechanism
chassis
assembly
and
attach
the
rotary
switch
clockwise.
Align
the
FP-299
flexible
wiring
board
@
with
the
reference
hole
on
the
mechanism
chassis
and
solder
the
flexible
wiring
board
to
the
rotary
switch
@
(at
four
locations).
Attach
the
change
gear
assembly
@
with
the
HLC
cut
(0.98
x
3
x
0.25)@.
Attach
the
timing
belt
@.
Note:
There
must
be
a
clearance
between
the
rotary
switch
@
and
timing
belt
@.
Attach
the
cam
relay
gear
@).
The
in-phase
markings
of
the
rotary
switch
@,
cam
relay
gear
(2)
and
cam
relay
gear
(1)
must
be
aligned.
Attach
the
guide
lock
plate
(T),
pinch
pressure
assembly
and
eject
arm.
(Refer
to
4-15.)
Attach
the
LS
chassis
block
assembly
to
the
mechanical
chassis.
(Refer
to
4-10.)
Clean
the
shaft
of
the
capstan
motor.
(Refer
to
2-2.)
Attachment
direction
The
ribs
must
be
facing
upward.
Dowel
(1)
Cam
relay
gear
(2)
SETTING
THE
GEAR
POSITION
o
<>
Hole
of
mechanism
chassis
Rotary
switch
Cam
relay
gear
(2)
Cam
relay
gear
(1)
When
attaching
it,
coat
the
hatched
portion
with
grease.
