4-17.Guide Gear Assembly, Guide Gear T Assembly, Cam Relay Gear 1,
1)
2)
3)
4)
5)
6)
1)
Guide Lock Plate (S)
. Removal procedure
Remove the LS chassis block assembly. (Refer to 4-10.)
Remove the screw (camera pan2 main M1.4 x 1.6) @.
Remove the guide lock plate (S) @ in the direction of the arrow
@,
Remove the two stop rings (E type 1.2) @.
Remove the guide gear (S) assembly @ and guide gear (T)
assembly @).
Remove the HLW cut (0.98 x 3 x 0.25) ©.
Remove the cam relay gear (1) @.
SETTING THE GEAR POSITION
Cam relay gear (2) Cam relay gear (1)
2.
1)
2)
3)
4)
Guide gear
(T) assembly
© HLW cut
® Two stop ring
(E type1.2)
Rotary switch
Pay attention
; to the shapes.
Guide
gear
Guide
gear
(T)
assembly
(S)
assembly
©) Hole of mechanism chassis
When attaching it, coat the hatched
&° portion with grease.

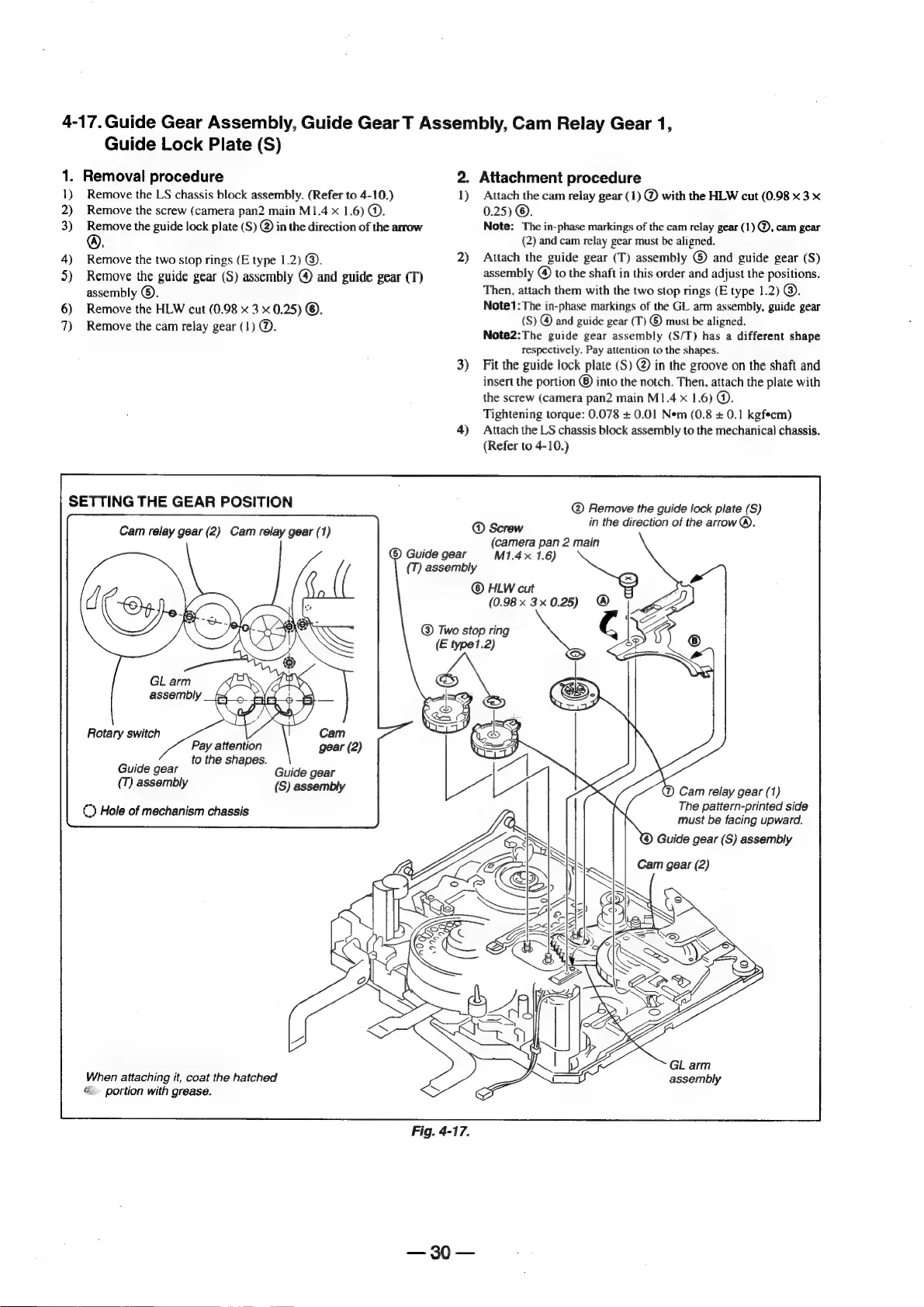

Fig. 4-17.
Attachment procedure
Attach the cam relay gear (1) @ with the HLW cut (0.98 x 3 x
0.25) ©.
Note: The in-phase markings of the cam relay gear (1) @, cam gear
(2) and cam relay gear must be aligned.
Attach the guide gear (T) assembly © and guide gear (S)
assembly @ to the shaft in this order and adjust the positions.
Then, attach them with the two stop rings (E type 1.2) ©.
Note1:The in-phase markings of the GL arm assembly, guide gear
(S) @ and guide gear (T) © must be aligned.
Note2:The guide gear assembly (S/T) has a different shape
respectively. Pay attention to the shapes.
Fit the guide lock plate (S) @ in the groove on the shaft and
insert the portion ©) into the notch. Then, attach the plate with
the screw (camera pan2 main M1.4 x 1.6) @.
Tightening torque: 0.078 + 0.01 Nem (0.8 + 0.1 kgfecm)
Attach the LS chassis block assembly to the mechanical chassis.
(Refer to 4-10.)
@ Remove the guide lock plate (S)
in the direction of the arrow ®.
® Screw
(camera pan 2 main
Ye oD
a
M1.4x 1.6)
(0.98 x 3x 0.25)
) Cam relay gear (1)
The pattern-printed side
must be facing upward.
(© Guide gear (S) assembly
Cam gear (2)
GL arm
assembly
