Appendixes A-13
Appendixes
Note
Asterisks are displayed in this block
when timecode or user bits could not
be read correctly, for example as T
*
R,
U
*
R.
2 Timecode reader drop-frame
mark (525 mode)
[.] (period): Indicates drop-frame
mode.
[:] (colon): Indicates non-drop frame
mode.
3 Timecode generator drop-frame
mark (525 mode)
[.] (period): Indicates drop-frame
mode (factory default).
[:] (colon): Indicates non-drop frame
mode.
4 VITC data field mark
[ ] (blank): Display of fields 1 and 3
[
*
] (asterisk): Display of fields 2
and 4
5 Recorder/player selection
The indication changes depending on
the status of the RECORDER/
PLAYER indicators.
No display: When the RECORDER
and PLAYER indicators are both
not lit.
P: The PLAYER indicator is lit.
R: The RECORDER indicator is lit.
6 Operating mode

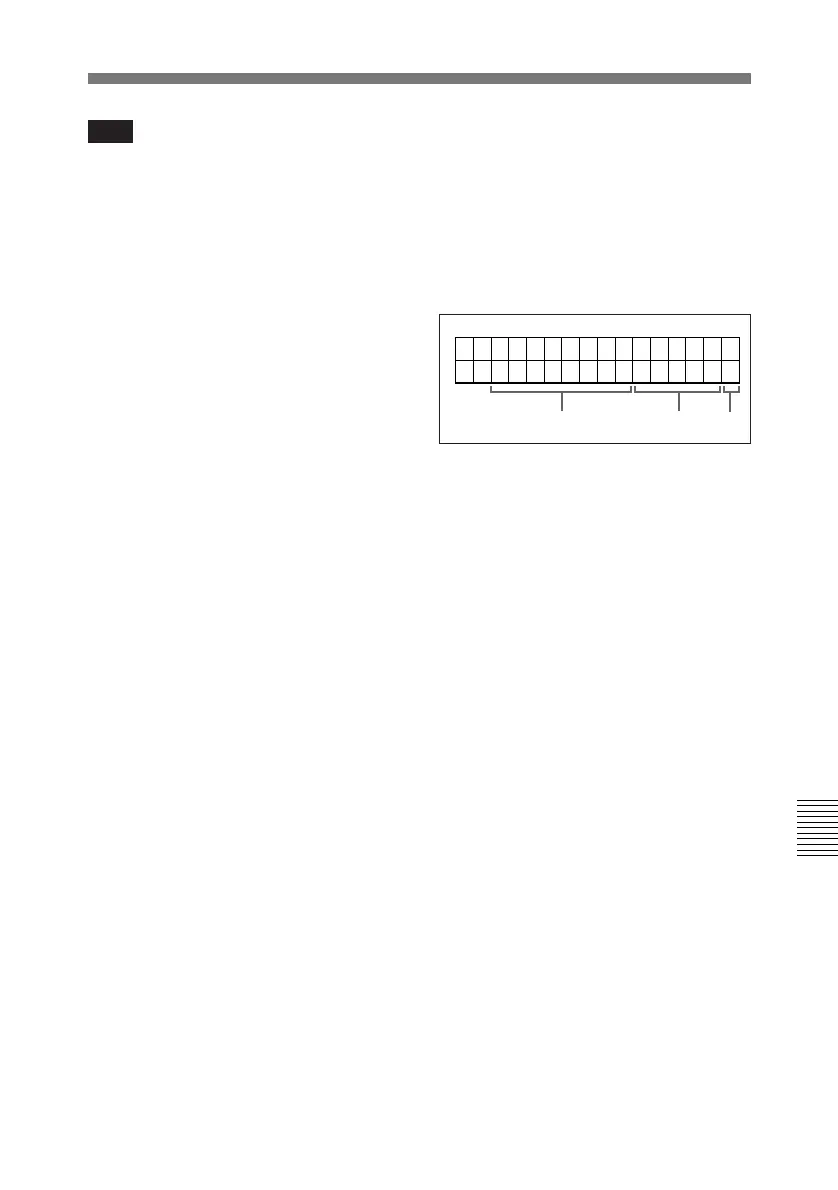

The display is divided into blocks A,
B, and C, shown in the figure below.
Block A: Operating mode
Block B: Servo lock status or tape
speed
Block C: The p mark, indicating an
auto editing segment
The contents displayed in each block
are listed on next page.
ABC
