Synchronizing Two or More Cameras (Without Using a Camera Control Unit)
When a BS or VBS signal is connected to the GEN
LOCK IN connector on the camera adaptor, the
camera synchronizes with the connected signal. Use
the GEN LOCK IN connector when you are using two
or more cameras without a camera control unit. (See
the illustrations below for sample connections.)

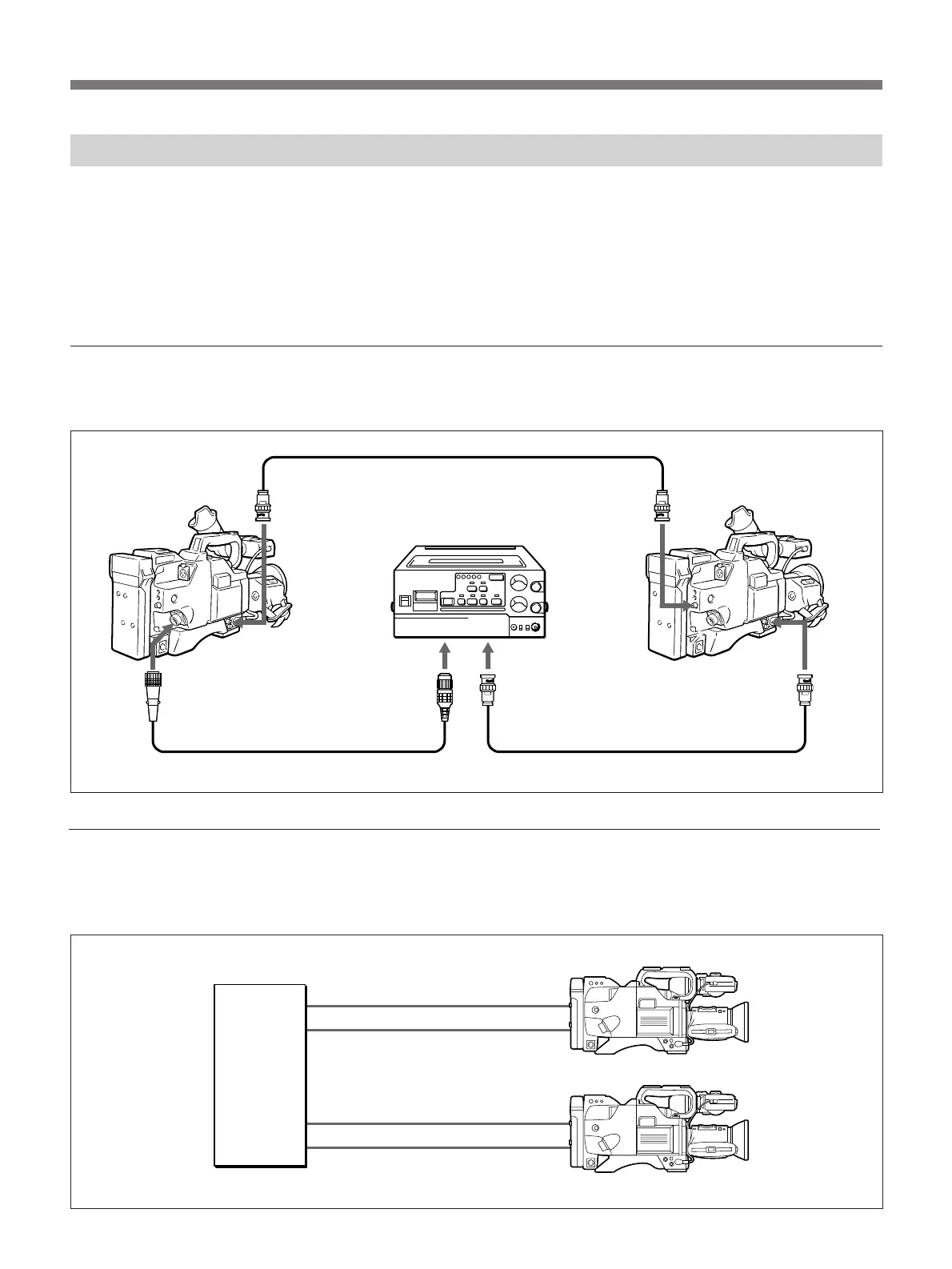

Connecting two or more cameras to a VTR
Camera 2 synchronizes with Camera 1.
Camera 1
to camera
connector
Portable VTR
Camera 2
to video input
connector
Connecting two or more cameras and a special-effects generator
Camera 1 and Camera 2 synchronize with a special-
effects generator.
VIDEO OUT
GEN LOCK
IN
VIDEO OUT
GEN LOCK
IN
Camera 1
Camera 2
VIDEO OUT
CCZQ-A camera cable (not supplied)
(Sync signal)
GEN LOCK INVIDEO OUT
VTR/CCU/CMA
Video input connector
Sync signal output
connector
Video input connector
Sync signal output
connector
Special
effects
generator
