Camera Head DXC-327B/327BP
Image device Interline-transfer CCD, 3-chip
Effective picture elements
768 × 494 (h/v) (NTSC)
752 × 582 (h/v) (PAL)
Sensing area 6.4 mm × 4.8 mm (equivalent to
a
1
/2-inch pickup tube)
Built-in filters 1: 3200K
2: 5600K +
1
/16 ND
3: 5600K
Lens mount Bayonet mount
Signal system EIA standards, NTSC color system
(for DXC-327B)
CCIR standards, PAL color system
(for DXC-327BP)
Scanning system 525 lines, 2:1 interlace,
30 frames/sec. (NTSC)
625 lines, 2:1 interlace,
25 frames/sec. (PAL)
Scanning frequency
Horizontal 15.734 kHz (NTSC)
15.625 kHz (PAL)
Vertical 59.94 Hz (NTSC)
50.00 Hz (PAL)
Sync system Internal
External with the BS or VBS signal
supplied to the GEN LOCK IN
connector (when the CA-537/
537P, CA-327/327P is used) or
the reference signal input to the
VTR/CCU/CMA connector from
the GEN LOCK connector of the
CCU-M5/M5P/M7/M7P (when
the CA-537/537P is used)
Horizontal resolution
700 lines (center)
Minimum illumination
6.0 lx with F1.4, +18 dB
Sensitivity 2000 lx with F9.0 (Typical) at
3200K
Gain selection 0 dB, 9 dB or 18 dB, selectable
Video output
Composite signal
1.0 Vp-p, sync negative,
75 ohms, unbalanced
Y/C separate signal
Y: 1.0 Vp-p, sync negative,
unbalanced
C: burst level 0.286 Vp-p (NTSC)
0.3 Vp-p (PAL)
without sync
Specifications
Signal to noise ratio
63 dB (NTSC, Typical)
61 dB (PAL, Typical)
Registration 0.05% for all zone
(without lens)
Inputs/Outputs VIDEO OUT: BNC-type,
75 ohms, unbalanced
LENS:
2
/3-inch lens connector
(6-pin)
VF: 8-pin
REMOTE: 10-pin
Power requirements 12 V DC
Power consumption 8 W
Operating temperature
–5°C to +45°C (23°F to 113°F)
Storage temperature –20°C to +60°C (–4°F to 140°F)
Weight about 2 kg (4 lb 6 oz)

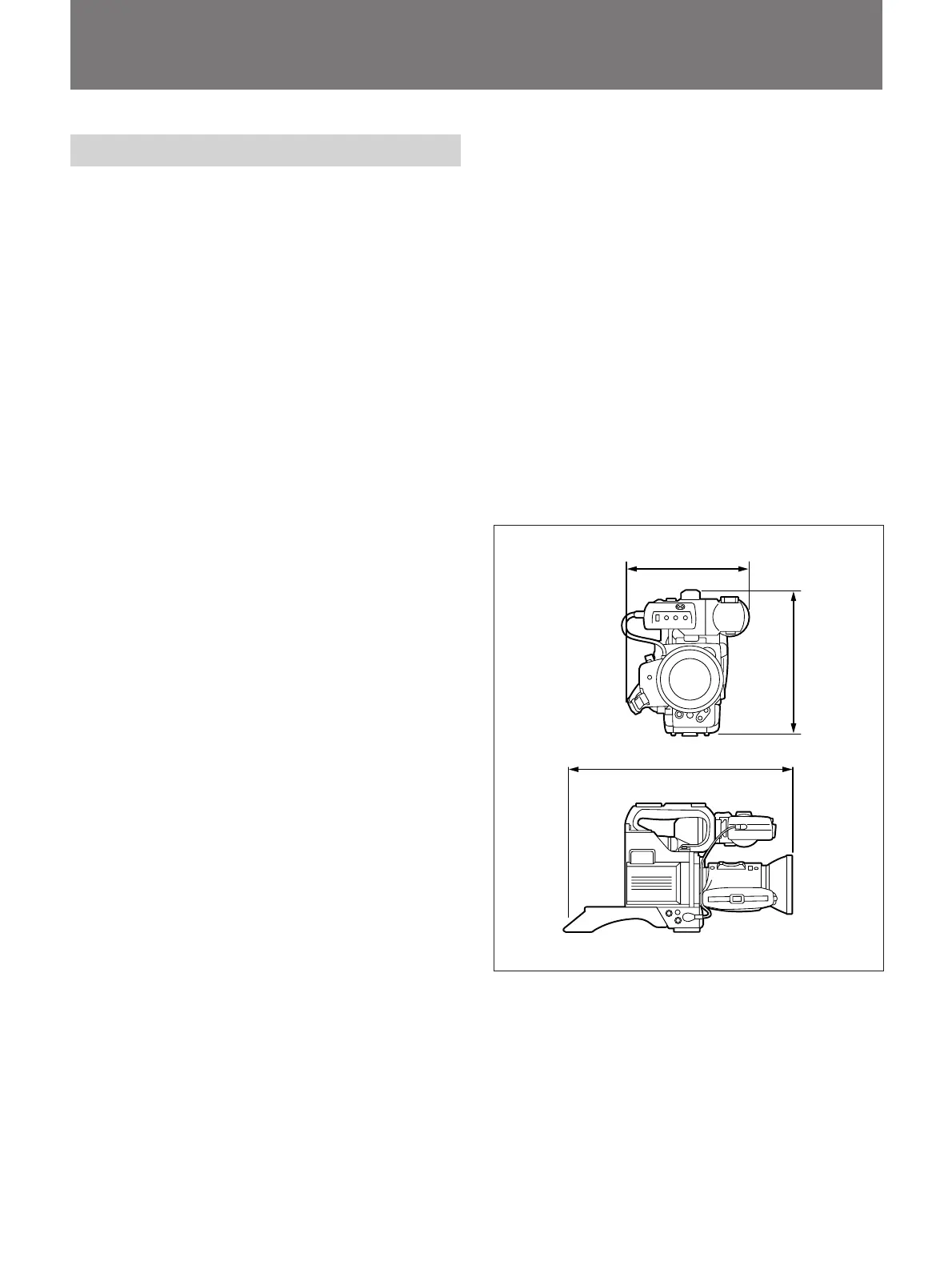

Dimensions See the illustrations below.
224 (8
7
/
8
)
434 (17
1
/
8
)
242 (9
5
/
8
)
Unit: mm (inches)
