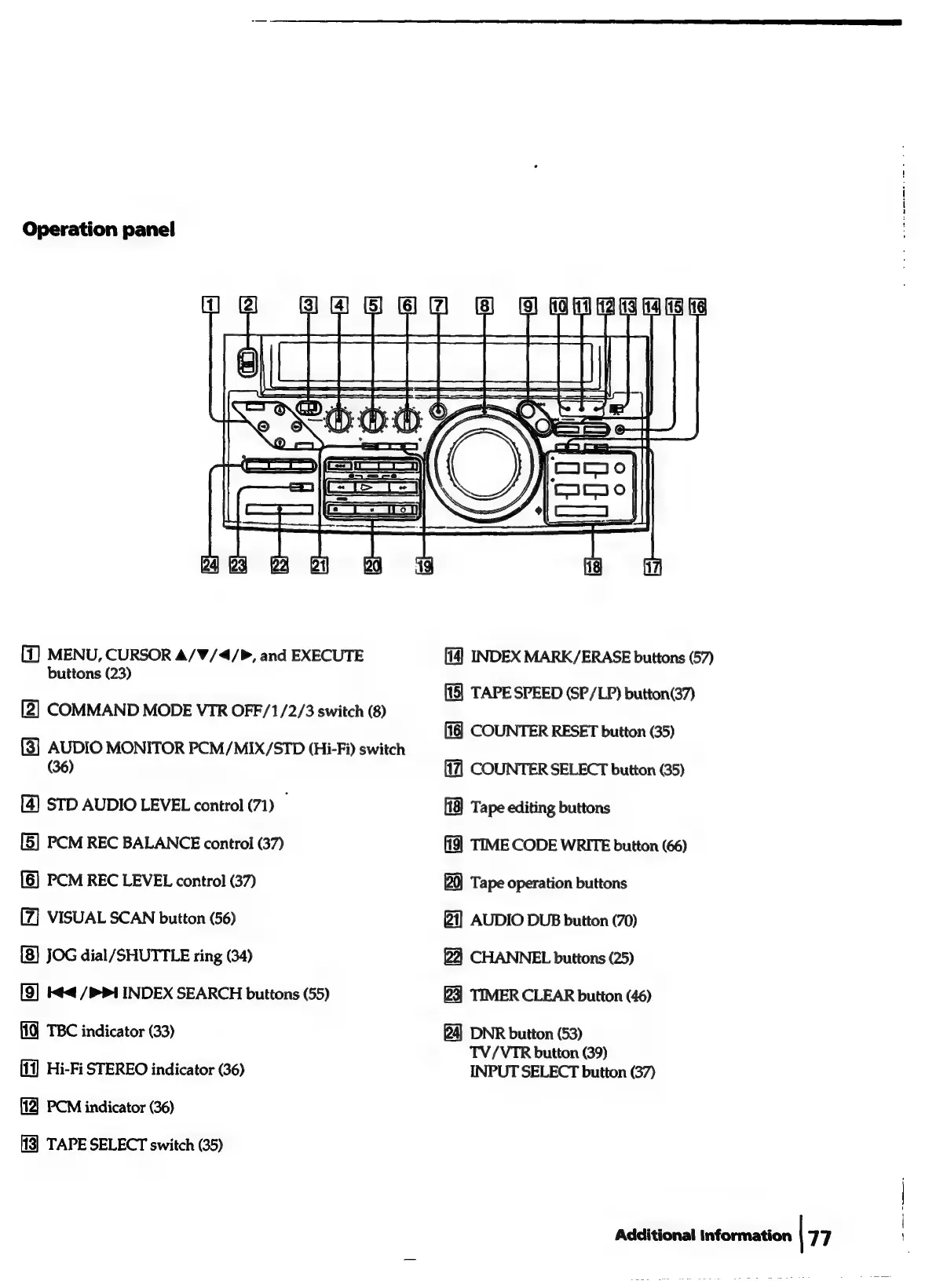

Operation panel
[1] MENU, CURSOR 4/¥/4/>, and EXECUTE
buttons (23)
[2] COMMAND MODE VIR OFF/1/2/3 switch (8)
[3] AUDIO MONITOR PCM/MIX/STD (Hi-Fi) switch
(36)
[4) STD AUDIO LEVEL control (71)
[5] PCM REC BALANCE control (37)
(6) PCM REC LEVEL contro) (37)
VISUAL SCAN button (56)
JOG dial/SHUTTLE ring (34)
[9]
'¢
/P1
INDEX
SEARCH
buttons
(55)
fig
TBC
indicator
(33)
(11) Hi-Fi STEREO indicator (36)
ff PCM indicator (36)
fi3] TAPE SELECT switch (35)
(14) INDEX MARK/ERASE buttons (57)
(5] TAPE SPEED (SP/LP) button(37)
(16) COUNTER RESET button (35)
{17 COUNTER SELECT button (35)
Tape editing buttons
TIME CODE WRITE button (66)
20) Tape operation buttons
AUDIO DUB button (70)
22] CHANNEL buttons (25)
23] TIMER CLEAR button (46)
DNR button (53)
TV/VTR button (39)
INPUT SELECT button (37)
